Trade Discount 17%

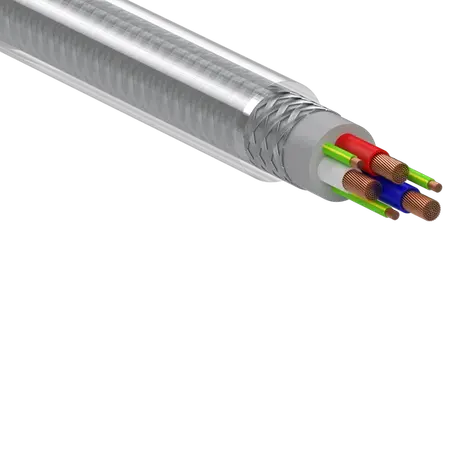

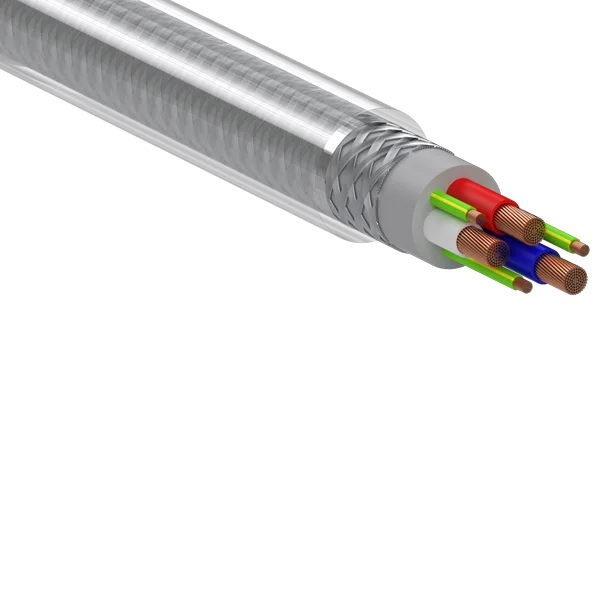

Flexible VSD Power Cable 3C+3E 6.0mm V90 | 0.6/1kV Voltage | Screened Design | Per 5m by Eltech
Flexible VSD power cable with 3 cores plus 3 earth cores and a voltage rating of 0.6/1kV—ideal for industrial variable speed drive applications. Built for safe power distribution, with screened construction to reduce electromagnetic interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible VSD Power Cable Screened 3C+3E 6.0mm V90 0.6/1kV
Brand: Eltech
SKU: 131604
Alternatively Known As: VSD Power Cable, Screened Power Cable, Flexible VSD Cable, 3 Core + 3 Earth Cable
Technical Specifications
- Cable Size: 6.0mm
- Cores: 3C + 3E
- Voltage Rating: 0.6/1kV
- Cable Type: V90 screened flexible power cable
- Drum Length: 500m
- Minimum Order Quantity: 5m
- Dimensions (H x L x W): 15mm x 500000mm x 15mm
- Weight: 0.5 kg
Key Features
- Flexible design suitable for variable speed drive applications
- Screened cable construction for electromagnetic compatibility (EMC)
- 3 cores plus 3 earth cores for enhanced safety and performance
- Voltage rating of 0.6/1kV suitable for medium voltage power distribution
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal cable performance.
Applications
- Industrial variable speed drive (VSD) power connections
- Power distribution in manufacturing plants
- Electrical installations requiring screened power cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Screened cable reduces electromagnetic interference, improving energy efficiency of connected equipment
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty terms for details.
Available Now
The Eltech Flexible VSD Power Cable Screened 3C+3E 6.0mm V90 0.6/1kV is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring screened power cables.
