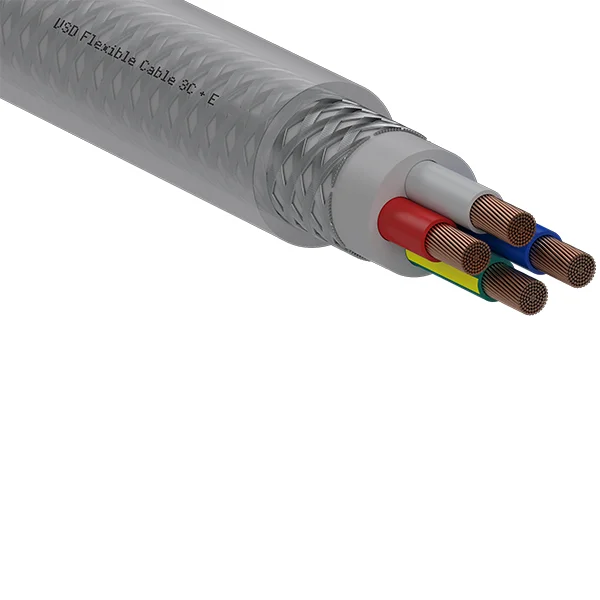

Flexible VSD Power Cable Screened 3C+E 1.0mm | 0.6/1kV Voltage | 500m Drum Length | Flexible Design | Per 10m by Eltech
Flexible VSD power cable with 3C+E configuration and 0.6/1kV voltage rating—ideal for industrial machinery and equipment. Built for VSD applications, this screened cable reduces electromagnetic interference and ensures reliable power distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flexible VSD Power Cable Screened 3C+E 1.0mm 0.6/1kv
Brand: Eltech
SKU: 131204
Alternatively Known As: VSD Power Cable, Screened Power Cable 3C+E, Flexible VSD Cable 1.0mm
Technical Specifications
- Conductor Size: 1.0mm²
- Configuration: 3 cores plus earth (3C+E)
- Voltage Rating: 0.6/1kV
- Drum Length: 500 meters
- Flexible design for ease of installation
- Screened for EMC compliance
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 0.1 kg
Key Features
- Flexible screened power cable suitable for VSD applications
- 3 cores plus earth (3C+E) configuration
- Conductor size: 1.0mm²
- Voltage rating: 0.6/1kV
- Available in 500m drum lengths
- Minimum order quantity: 10 meters
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Variable Speed Drive (VSD) power supply connections
- Industrial machinery and equipment requiring screened power cables
- Power distribution in commercial and industrial settings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Screening reduces electromagnetic interference, improving energy efficiency of connected equipment
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech warranty policy for details.
Available Now
The Eltech Flexible VSD Power Cable Screened 3C+E 1.0mm 0.6/1kV is available now for immediate purchase. Ideal for industrial and commercial VSD power applications.
