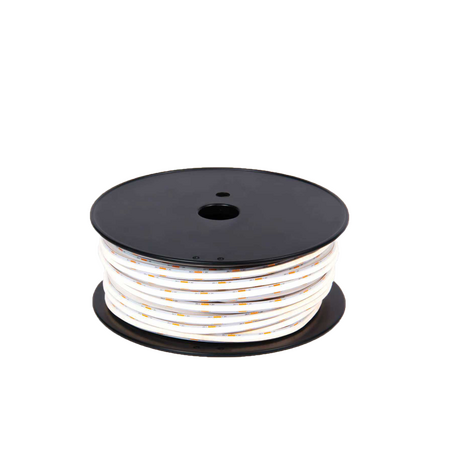

'Flexion Smoothline LED Strip Kit 6W 3000K IP67 5m Haneco'
'Haneco Flexion Smoothline kit features 6W output, 3000K warm white and IP67 rating in a 5m kit. Ideal for outdoor and wet area strip lighting.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Haneco Flexion Smoothline IP67 LED Strip, Dot-Free LED Strip Kit, 5m Waterproof LED Strip
Technical Specifications
- Product Code: FXDL6W-3K5M-IP67
- SAP Code: 2002661
- Power: 6 W/m
- Total Strip Length: 5 m
- Lumen Output: 720 lm/m
- Efficacy: Up to 120 lm/W
- Colour Temperature: 3000K warm white
- CRI: >90
- Beam Angle: 140°
- LED Technology: SOB
- Dimming: Non-dimmable
- Input Voltage: 220–240V AC, 50/60Hz
- Driver Output: 24V DC
- Driver: Remote IP67 driver
- Electrical Classification: Class II
- Mounting: Self-adhesive backing
- Cut Length: 33.33 mm
- Operating Ambient Temperature: -20°C to 45°C
- Projected Lifespan: 54,000 hours at Ta 25°C
- Connection: 450 mm cable with IP-rated connector and 15 mm lead
- Flicker: Flicker-free
- Surge Protection: Overload and short-circuit protection
- Dimensions (H x L x W): 6.5mm x 5000mm x 10mm
- Weight: 0.49 kg
Key Features
- Continuous, dot-free linear illumination
- IP67 protection against dust ingress and temporary water immersion
- Warm white 3000K colour temperature
- High colour rendering with CRI above 90
- Self-adhesive backing for straightforward mounting
- Includes remote IP67 driver for a complete 5m kit
- Can be cut at marked 33.33 mm intervals
- Suitable for indoor, outdoor and wet-area applications
- Class II double-insulated electrical design
Professional Installation Requirements
- Installation involves a 220–240V AC supply and should be completed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's installation instructions and local electrical requirements. Cut ends must be correctly sealed to maintain the IP rating.
Applications
- Bathrooms and wet areas
- Kitchen and food-preparation areas
- Outdoor areas, balconies, patios and verandahs
- Cabinetry and architectural feature lighting
- Accent, display and retail lighting
- Hotel rooms, restaurants and cafes
- Hallways, staircases and walk-in wardrobes
- Residential and commercial interior lighting
Standards & Compliance
- AS/NZS 60598 for general lighting equipment
- Installation should comply with AS/NZS 3000 wiring rules
Environmental Benefits
- High efficacy of up to 120 lm/W can reduce energy consumption compared with less efficient lighting technologies
- Projected 54,000-hour L70 lifespan can reduce replacement frequency and material waste
- 24V DC operation supports efficient low-voltage LED lighting systems
- LED technology contains no mercury associated with fluorescent lamps
Warranty Information
5-year warranty against manufacturing defects, subject to Haneco's warranty terms and correct selection, installation and operation. Warranty claims are handled through the original authorised supplier.
Available Now
Available through Haneco and authorised Australian electrical wholesalers and distributors.
