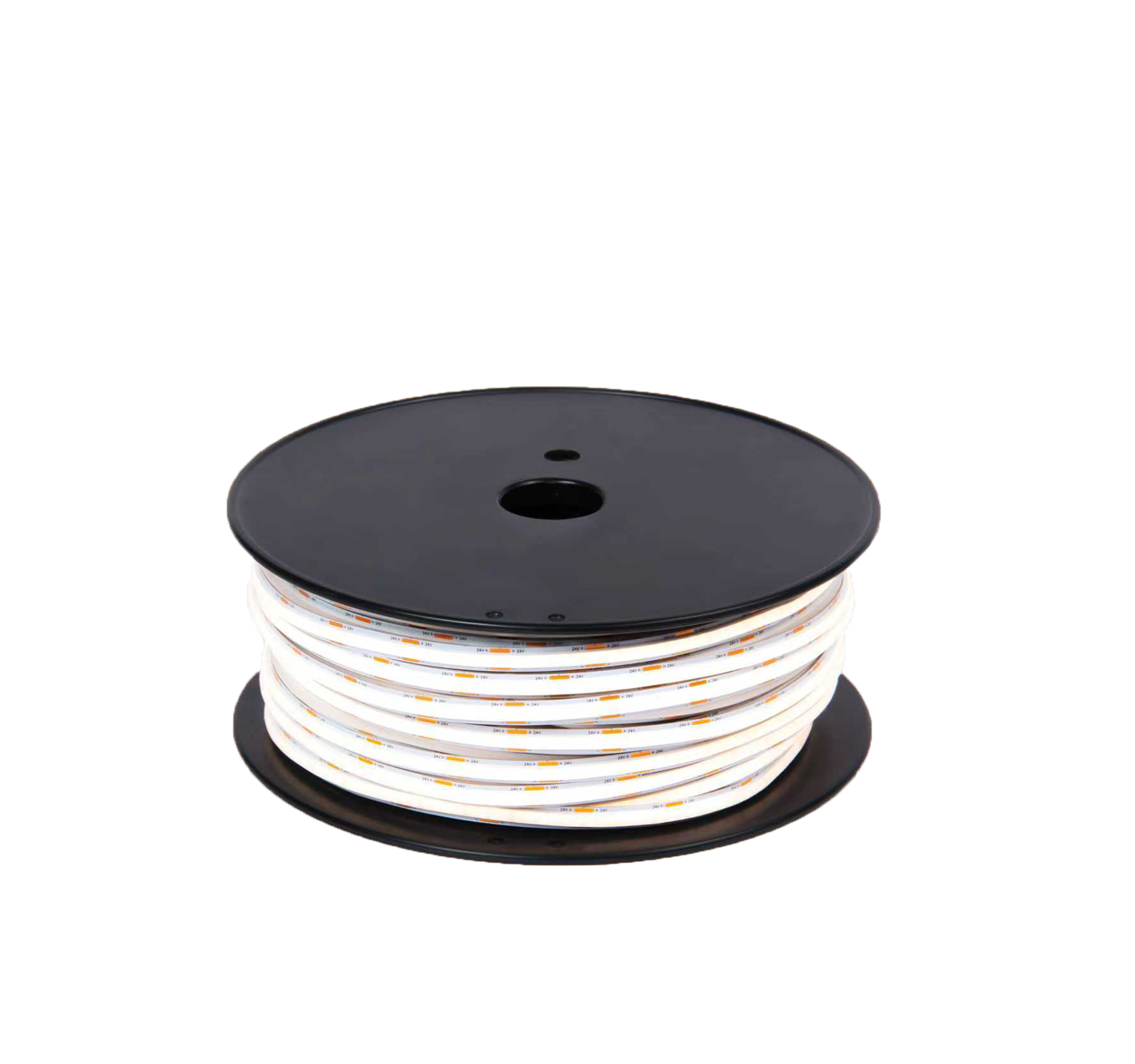

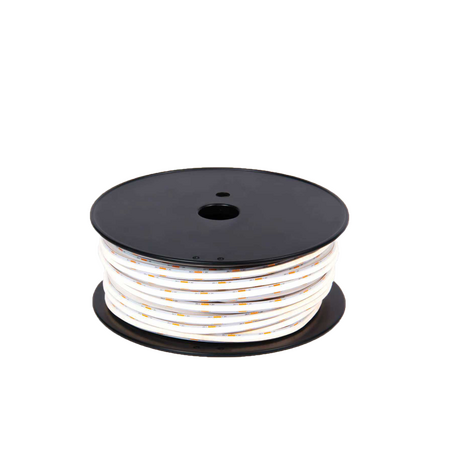

'Flexion Smoothline LED Strip Kit 6W 6000K IP67 5m Haneco'
'Haneco Flexion Smoothline kit features 6W output, 6000K daylight and IP67 rating in a 5m kit. Ideal for outdoor and wet area strip lighting.'
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Haneco Flexion Smoothline IP67 LED Strip, 6000K LED Strip Light Kit, Waterproof LED Strip Lighting
Technical Specifications
- Product Code: FXDL6W-6K5M-IP67
- SAP Code: 2002663
- Power: 6W per metre; 30W total for 5m kit
- Lumen Output: 720 lm per metre
- Efficacy: 120 lm/W
- Colour Temperature: 6000K daylight
- Colour Rendering Index: CRI greater than 90
- Beam Angle: 140°
- Input Voltage: 220–240Vac, 50/60Hz
- Driver Output: 24Vdc
- Driver: Remote, IP67 rated
- Dimming: Non-dimmable
- Cut Length: 33.33mm
- Mounting: Self-adhesive backing
- Connection: 450mm cable with IP-rated connector and 15mm connection
- Operating Ambient Temperature: -20°C to 45°C
- Electrical Classification: Class II
- Power Factor: Greater than 0.9
- Surge Protection: Overload and short-circuit protection
- Projected Lifespan: 54,000 hours at Ta 25°C, L70
- Fitting Colour: White
- Dimensions (H x L x W): 6.5mm x 5000mm x 10mm
- Weight: 0.49 kg
Key Features
- Continuous, seamless and dot-free linear illumination
- IP67 protection against dust and water ingress
- 6000K daylight colour temperature for crisp, cool-white lighting
- High CRI greater than 90 for accurate colour rendering
- Self-adhesive backing for straightforward mounting on suitable clean surfaces
- 24Vdc low-voltage LED strip with remote IP67 driver
- Cuttable at 33.33mm intervals
- Flicker-free operation
- Suitable for indoor, outdoor and moisture-prone applications
- Five-year product warranty
Professional Installation Requirements
- Installation should be performed by a licensed electrician. The 220–240Vac supply and remote driver must be installed in accordance with applicable Australian electrical requirements, and all cut strip ends must be correctly sealed using suitable IP-rated accessories.
Applications
- Bathrooms and wet-area feature lighting
- Outdoor areas, balconies, patios and verandahs
- Kitchen, food-preparation and butler-pantry lighting
- Cabinetry and wardrobe lighting
- Architectural, accent and display lighting
- Retail spaces, showrooms, restaurants and cafes
- Hotel rooms, boardrooms and meeting rooms
- Staircases, hallways and public facilities
Standards & Compliance
- AS/NZS 60598.1 for general luminaire safety requirements
Environmental Benefits
- High efficacy of 120 lm/W helps reduce energy consumption compared with lower-efficiency lighting technologies
- Projected 54,000-hour L70 lifespan can reduce replacement frequency and associated material waste
- IP67 construction supports longer service life in suitable exposed or moisture-prone environments
- Low-voltage 24Vdc operation is provided through a remote driver for efficient LED system operation
Warranty Information
Five-year direct replacement warranty against manufacturing defects, subject to Haneco warranty terms and correct installation by an authorised electrician.
Available Now
Available through Haneco and authorised Australian electrical wholesalers.
