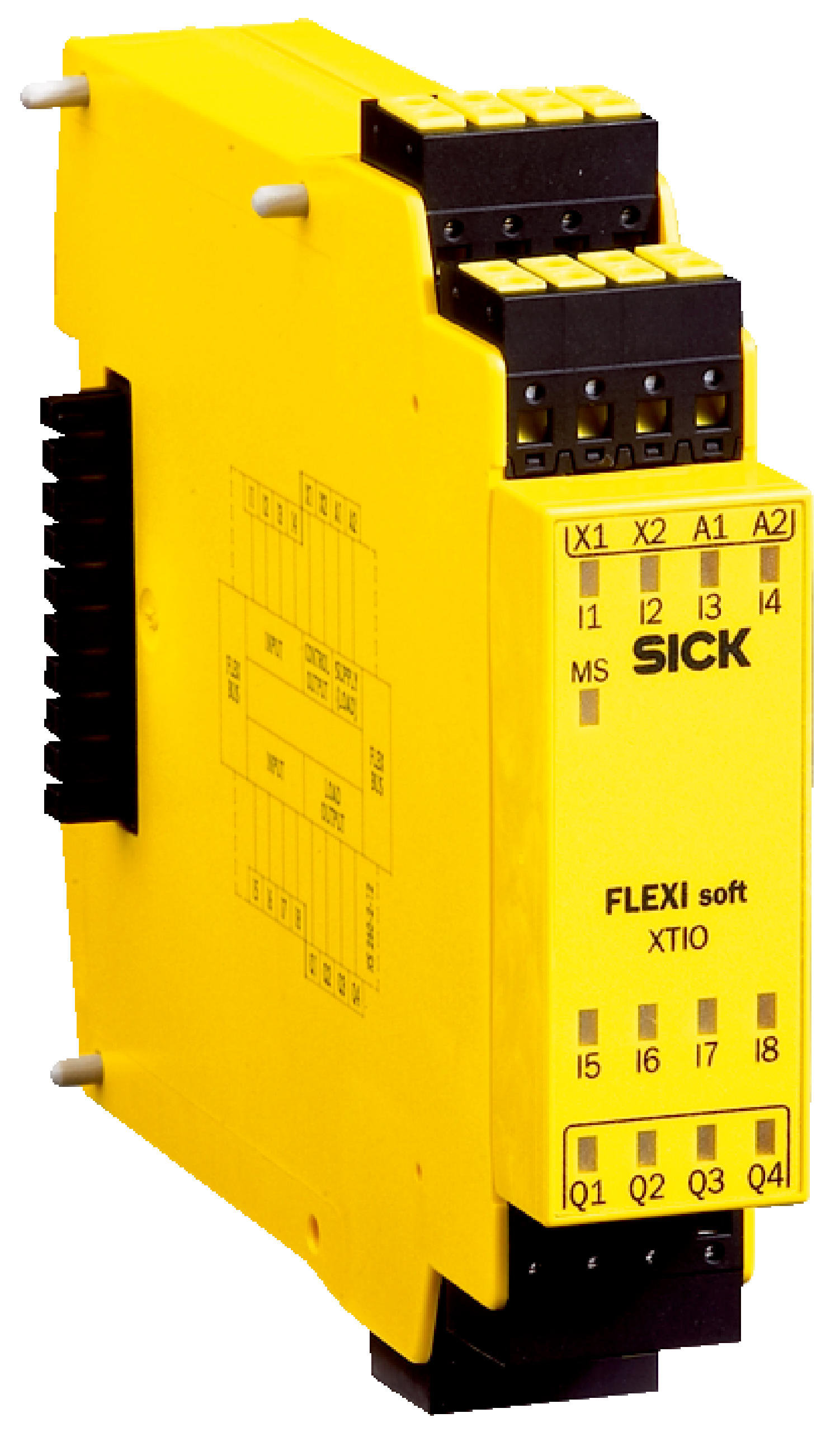

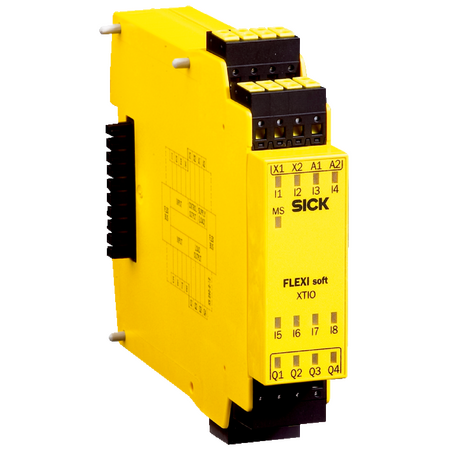

FLEXISOFT 8IN/4OUT I/O Module | SIL 3 Safety Level | IP20 Enclosure | by SICK

BRAND: SICK
SKU: 1044125
$1,100.80 List price: $1,383.60
+ −
30 Days Return Electricians Unlock Trade Access
The FLEXISOFT 8IN/4OUT I/O Module is designed for industrial automation safety systems, featuring a SIL 3 safety integrity level and IP20 enclosure rating. With 8 safety inputs, 4 safe outputs, and a fast shut-off time of 8 ms, it ensures reliable machine safety control. Ideal for applications requiring high safety standards, this module is built for long operational life and low power consumption.

Alternatively Known As: Flexisoft I/O Module, Safety I/O Module, FX3 XTIO 84002, Industrial Safety Module

Technical Specifications
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (EN ISO 13849)
  • Performance level: PL e (EN ISO 13849)
  • Mean probability of dangerous failure per hour (PFHD): 4.8 x 10^-9
  • Mission time: 20 years
  • Number of safety inputs: 8
  • Number of test outputs: 2
  • Number of safe outputs: 4
  • Connection type: Plug-in spring terminals
  • Protection class: III (EN 61140)
  • Voltage supply: 24 V DC (16.8 V DC to 30 V DC)
  • Input voltage HIGH: 13 V DC to 30 V DC
  • Input voltage LOW: -5 V DC to 5 V DC
  • Output current: ≤ 2 A
  • Enclosure rating: IP20 (EN 60529)
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -25 °C to +70 °C
  • Air humidity: ≤ 95%, non-condensing
  • Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
  • Weight: 0.164 kg
Key Features
  • I/O module configurable via Flexi Soft Designer and Safe EFI-pro System: Safety Designer software
  • Safety integrity level SIL 3 (IEC 61508)
  • Category 4 (EN ISO 13849) and Performance level PL e (EN ISO 13849)
  • Fast shut-off time of 8 ms
  • 8 safety inputs, 2 test outputs, and 4 safe outputs
  • Plug-in spring terminal connections
  • Protection class III (EN 61140)
  • Low internal power consumption ≤ 2.2 W
  • Short-circuit protected PNP semiconductor outputs
  • Wide operating temperature range from -25 °C to +55 °C
  • IP20 enclosure rating
Professional Installation Requirements
  • Installation and configuration should be performed by qualified personnel familiar with industrial safety systems and electrical standards.
Applications
  • Industrial automation safety systems
  • Machine safety control
  • Factory automation requiring SIL 3 and PL e safety levels
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption reduces energy usage
  • Designed for long operational life minimizing electronic waste
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.

Available Now

The SICK FX3-XTIO84002 FLEXISOFT 8IN/4OUT I/O Module is available for immediate purchase, ideal for industrial safety and automation applications.
