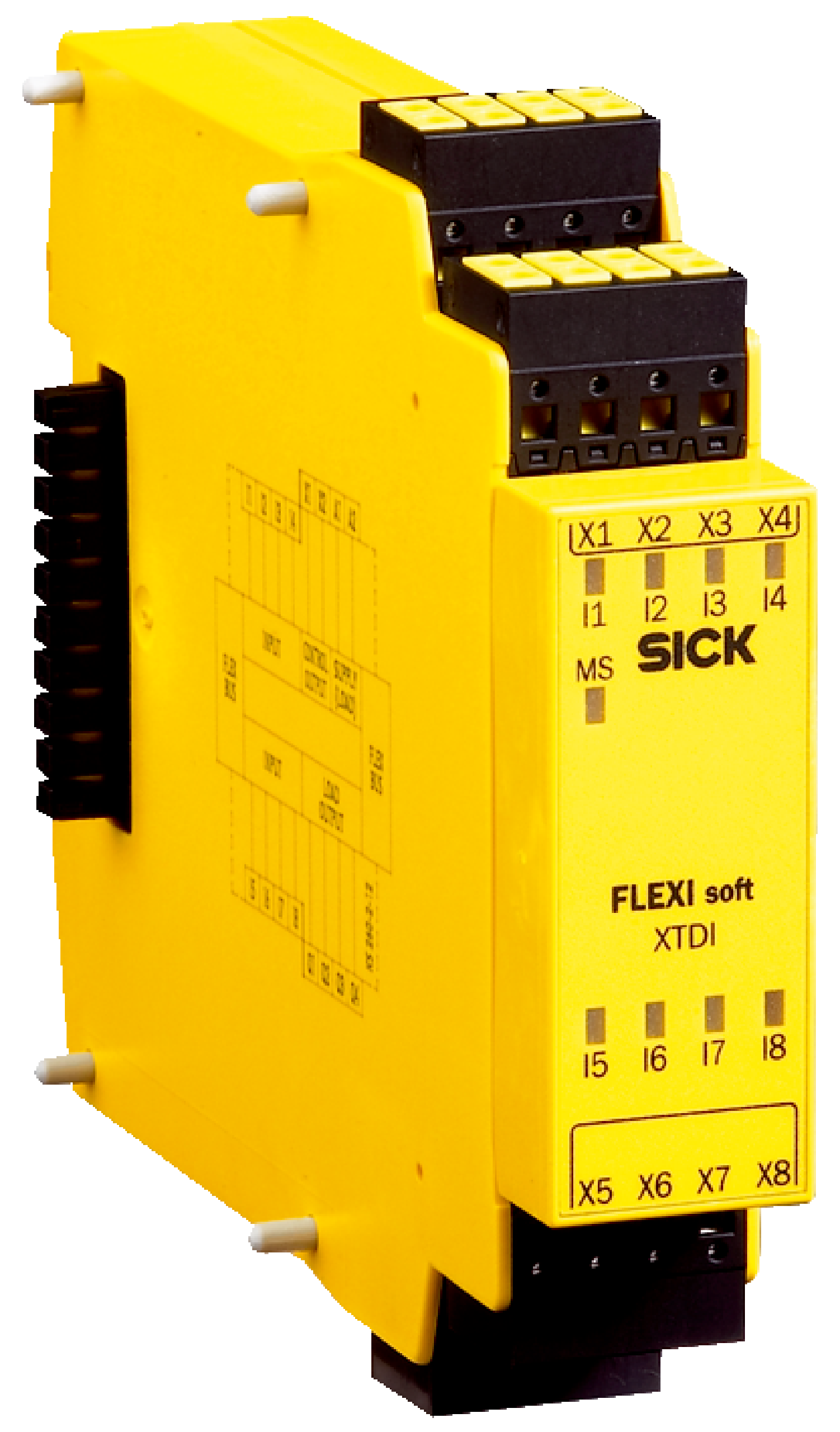

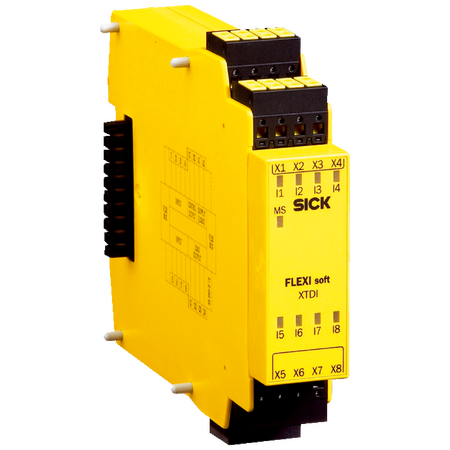

FLEXISOFT 8IN I/O Safety Module | 8 Safety Inputs & Outputs | SIL 3 Certified | by SICK
The FLEXISOFT 8IN I/O Safety Module is designed for industrial automation safety systems, featuring 8 safety inputs and 8 test outputs. With a high safety integrity level of SIL 3 and low power consumption, it's perfect for machine safety control and factory automation applications. Configurable via Flexi Soft Designer software, this module ensures reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Flexisoft 8 Input Safety Module, FX3 XTDI80002, SICK Safety I/O Module
Technical Specifications
- Number of safety inputs: 8
- Number of test outputs: 8
- Connection type: Plug-in spring terminals
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Input voltage HIGH: 13 V DC to 30 V DC
- Input voltage LOW: -5 V DC to 5 V DC
- Input current HIGH: 2.4 mA to 3.8 mA
- Input current LOW: -2.5 mA to 2.1 mA
- Output voltage HIGH: 15 V DC to 30 V DC
- Output current: ≤ 120 mA
- Test pulse generator: 2
- Enclosure rating: IP20 (EN 60529)
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.139 kg
Key Features
- I/O module with 8 safety inputs and 8 test outputs
- Configurable via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Flexi Loop-compatible for flexible safety system integration
- Short-circuit protected PNP semiconductor outputs
- Low internal power consumption (≤ 2 W)
- High safety integrity level SIL 3 (IEC 61508), Category 4 (EN ISO 13849), Performance Level e (EN ISO 13849)
- Mean probability of dangerous failure per hour (PFHD) of 0.4 x 10^-9
- Mission time of 20 years
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel trained in safety system integration and familiar with Flexi Soft Designer software.
Applications
- Industrial automation safety systems
- Machine safety control
- Factory automation requiring SIL 3 and PL e safety levels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption reduces energy usage in safety control systems
- Long mission time of 20 years minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FLEXISOFT 8IN. FX3-XTDI80002 I/O safety module is available for immediate purchase, ideal for industrial safety automation applications requiring high safety integrity.
