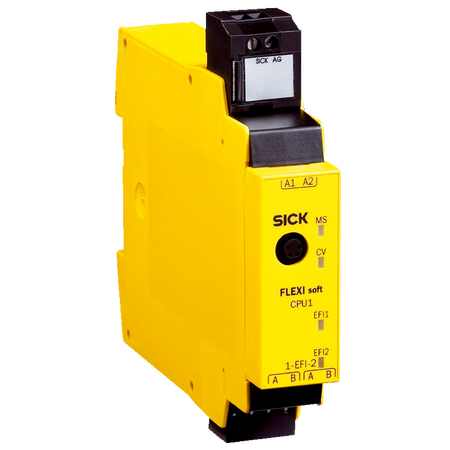

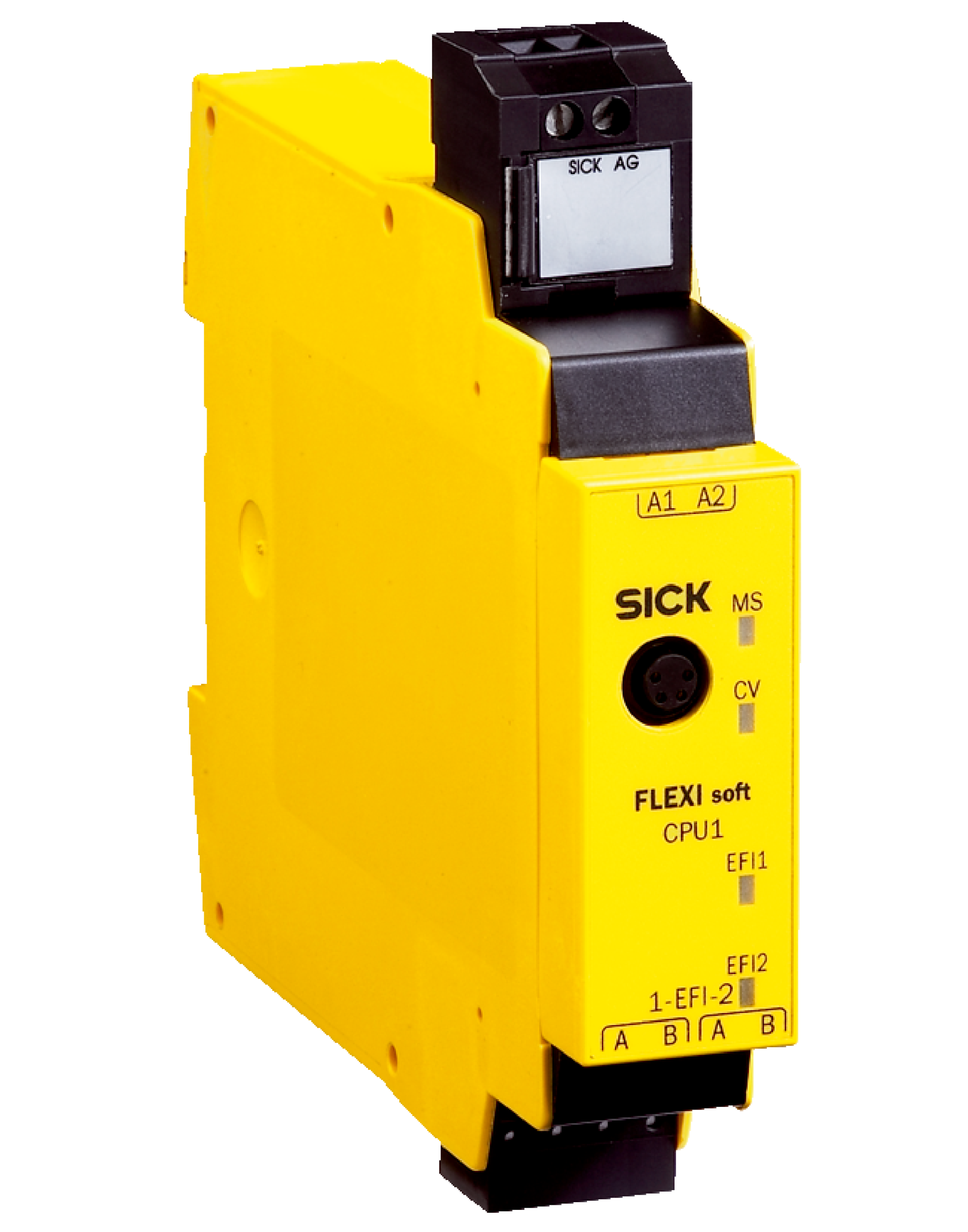

FLEXISOFT Controller EFI FX3-CPU130002 | Safe SICK Device Communication | Low Power Consumption | by SICK
The FLEXISOFT Controller EFI FX3-CPU130002 is the main module for the FLEXISOFT safety controller system, designed for safety control in industrial automation. With features like safe SICK device communication and low internal power consumption, it ensures reliable operation in demanding environments. Ideal for applications requiring SIL 3 and PL e safety levels, this module supports integration in machinery while complying with stringent safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: FLEXISOFT CPU Module, SICK Safety Controller Module, FX3 CPU EFI Controller
Technical Specifications
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.119 kg
Key Features
- Main module for FLEXISOFT safety controller system
- Configuration via Flexi Soft Designer software
- Supports safe SICK device communication and Flexi Link networking
- Two EFI interfaces with plug-in spring terminals
- RS-232 configuration and diagnostics interface with M8 female connector
- Protection class III with PELV or SELV 24 V DC supply
- Low internal power consumption ≤ 2.5 W
- Overvoltage category II compliant
- Switch-on time ≤ 18 seconds
- Enclosure rating IP20 suitable for industrial environments
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety control systems and electrical standards.
Applications
- Safety control in industrial automation systems
- Safe networking and communication for SICK devices
- Integration in machinery requiring SIL 3 and PL e safety levels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Complies with China RoHS for hazardous substance restrictions
- Durable design extends product lifecycle reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FX3-CPU130002 FLEXISOFT Controller EFI main module is available for immediate purchase, ideal for industrial safety control and automation applications.
