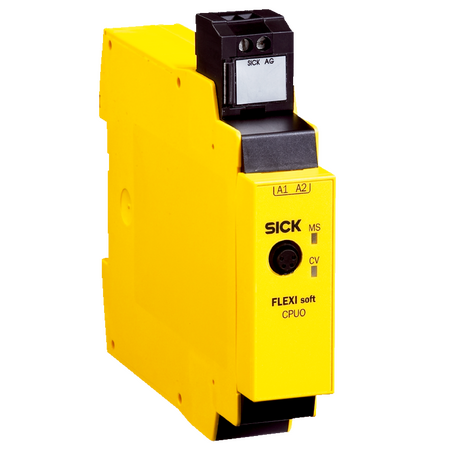

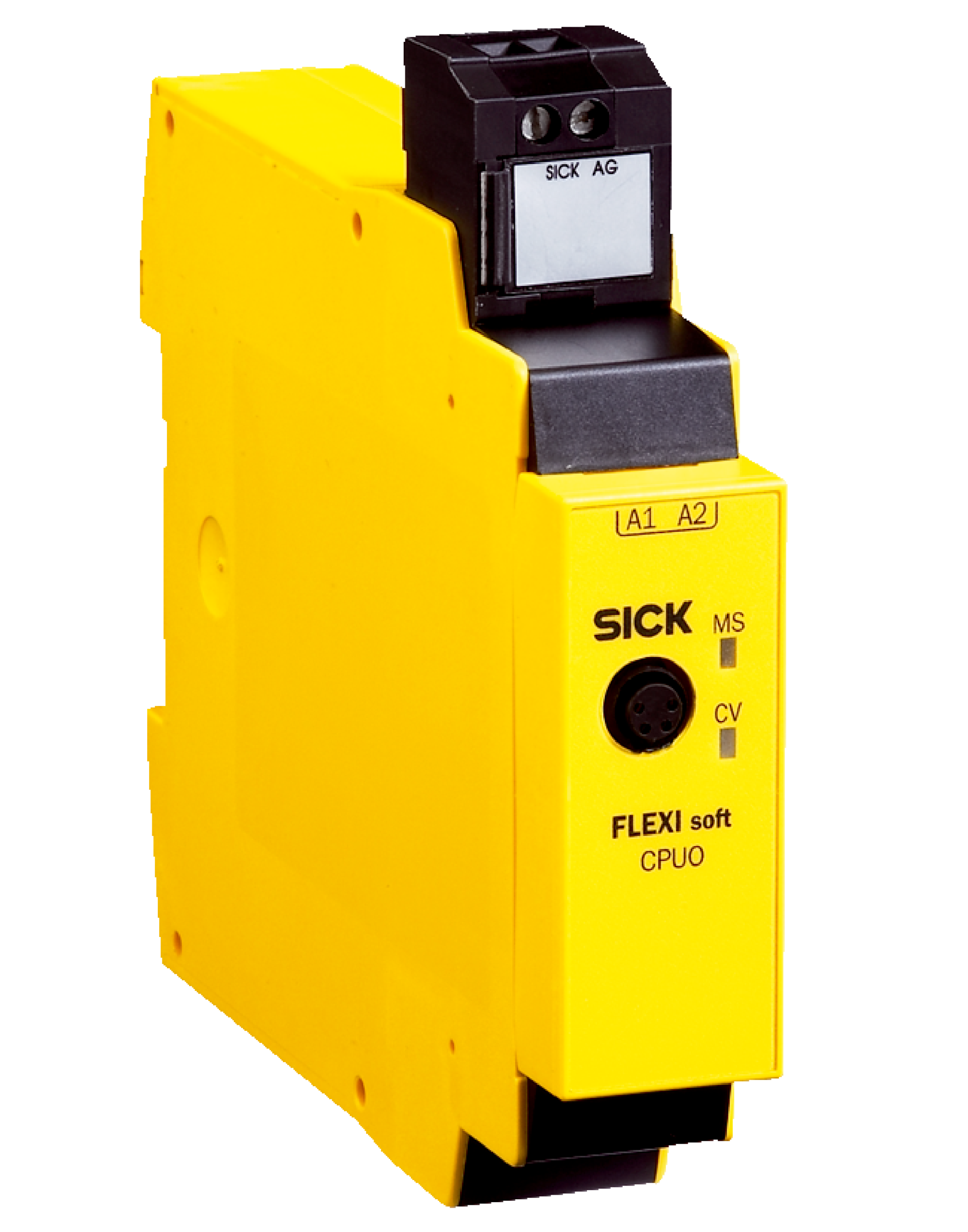

FLEXISOFT CONTROLLER FX3-CPU000000 | SIL 3 Safety Level | IP20 Enclosure | 24V DC Supply | by SICK

BRAND: SICK
SKU: 1043783
$714.00 List price: $897.50
+ −
30 Days Return Electricians Unlock Trade Access
The FLEXISOFT CONTROLLER FX3-CPU000000 is designed for industrial safety control applications, featuring a SIL 3 safety integrity level and an IP20 enclosure rating. With a supply voltage of 24V DC and a long mission time of 20 years, this controller ensures high reliability and performance in safety-critical environments. Ideal for machine safety monitoring and integration into safety-related control systems.

Alternatively Known As: Flexi Soft CPU Module, Safety Controller FX3 CPU, Industrial Safety Controller Module

Technical Specifications
  • Safety integrity level: SIL 3 (IEC 61508)
  • Category: Category 4 (EN ISO 13849)
  • Performance level: PL e (EN ISO 13849)
  • PFHD: 1.07 x 10^-9 (EN ISO 13849)
  • Mission time: 20 years (EN ISO 13849)
  • System connection: System plug (ordered separately)
  • Number of EFI interfaces: 0
  • Connection type: Plug-in spring terminals
  • Configuration and diagnostics interface: RS-232 (M8 female connector, 4-pin)
  • Protection class: III (EN 61140)
  • Voltage supply type: PELV or SELV
  • Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
  • Internal power consumption: ≤ 2.5 W
  • Overvoltage category: II (EN 61131-2)
  • Switch-on time: ≤ 18 s
  • Enclosure rating: IP20 (EN 60529)
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -25 °C to +70 °C
  • Air humidity: ≤ 95 %, non-condensing
  • Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
  • Weight: 0.111 kg
Key Features
  • Main module for Flexi Soft safety controller system
  • Configuration via Flexi Soft Designer or Safe EFI-pro System software
  • Safety integrity level SIL 3 (IEC 61508)
  • Category 4 (EN ISO 13849) with Performance Level PL e
  • Mean probability of dangerous failure per hour (PFHD) 1.07 x 10^-9
  • Mission time of 20 years
  • RS-232 configuration and diagnostics interface with M8 female connector
  • Plug-in spring terminal connection type
  • Supply voltage 24 V DC (16.8 V DC to 30 V DC)
  • Internal power consumption ≤ 2.5 W
  • Overvoltage category II (EN 61131-2)
  • Switch-on time ≤ 18 seconds
  • Protection class III (EN 61140)
  • Enclosure rating IP20 (EN 60529)
  • Operating temperature range -25 °C to +55 °C
  • Storage temperature range -25 °C to +70 °C
  • Non-condensing air humidity up to 95%
Professional Installation Requirements
  • Installation and configuration should be performed by qualified personnel familiar with safety control systems and relevant standards to ensure compliance and safety.
Applications
  • Safety control in industrial automation systems
  • Machine safety monitoring and control
  • Integration in safety-related control systems
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption of ≤ 2.5 W reduces energy usage
  • Long mission time of 20 years supports sustainable operation
  • Compliance with RoHS and other environmental standards
Warranty Information

Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.

Available Now

The SICK FX3-CPU000000 FLEXISOFT CONTROLLER is available for immediate purchase, ideal for industrial safety control applications requiring high integrity and reliability.
