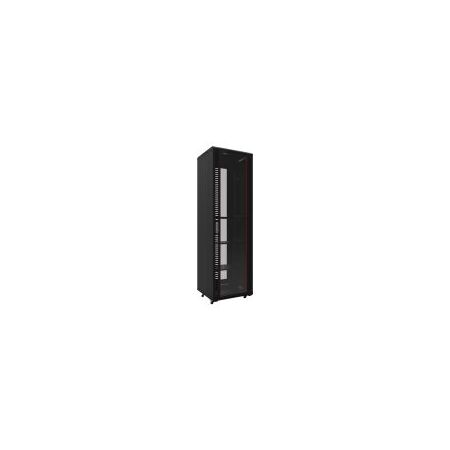

Floor Standing Cabinet 18RU 600x1000mm Glass Door A5 Redback
Redback A5 floor standing cabinet features 18RU, 1000mm depth, welded frame, glass front door, vented rear door, and castors. Ideal for server and comms rooms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 18RU Server Rack Cabinet, 19-Inch Network Cabinet, Floor Standing Comms Rack, Data Cabinet
Technical Specifications
- Model: A5.6018
- Rack Capacity: 18RU
- Mounting Format: 19-inch rack equipment
- Static Load Capacity: Up to 800kg on levelling feet
- Frame Construction: Welded steel frame
- Material Thickness: 1.2–1.5mm steel; 2.0mm mounting profiles
- Front Door: Toughened glass door
- Rear Door: Lockable vented metal door
- Mounting Rails: Adjustable front and rear vertical rails
- Cable Entry: Removable cable entry points at top and bottom
- Included Accessories: Two shelves and 20 cage nuts
- Cooling Compatibility: Compatible with quick-install modular fan trays
- Finish: Powder-coated
- Earthing: Earth continuity leads fitted to each panel
- Mobility: Heavy-duty castors with levelling feet
- Dimensions (H x L x W): 988mm x 1000mm x 600mm
- Weight: 72 kg
Key Features
- 18RU capacity for servers, switches, patch panels and communications equipment
- 600mm wide by 1000mm deep cabinet suitable for deeper rack-mounted equipment
- Toughened glass front door provides visibility while restricting access
- Vented rear door supports passive airflow and is fitted with a lock
- Welded frame provides a rigid, durable enclosure
- Removable side panels and repositionable mounting rails simplify equipment installation
- Heavy-duty castors assist positioning, with levelling feet for permanent placement
- Includes two shelves and 20 cage nuts
- Removable top and bottom cable-entry panels
- Compatible with modular fan trays for active cabinet cooling
Applications
- Server rooms and network equipment rooms
- Telecommunications and structured cabling installations
- Commercial and industrial communications systems
- Housing 19-inch servers, switches, patch panels, PDUs and UPS equipment
- Security, surveillance and audiovisual equipment installations
Environmental Benefits
- Powder-coated steel construction provides durability and supports extended service life
- Steel cabinet components are recyclable at end of service life
- Vented construction and optional fan compatibility support effective equipment cooling and thermal management
- Removable panels and replaceable accessories can reduce the need to replace the complete cabinet
Warranty Information
Available Now
Available through authorised REDBACK_RACKS distributors in Australia.
