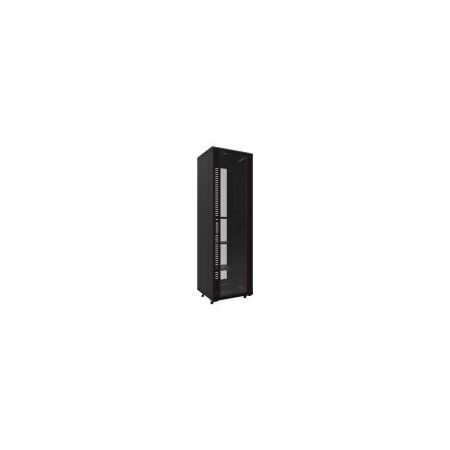

Floor Standing Cabinet 18RU 600x800mm Glass Door A5 Redback
Redback A5 floor standing cabinet features 18RU, 800mm depth, welded frame, glass front door, vented rear door, and castors. Ideal for server and comms rooms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 18RU Server Rack Cabinet, 19-inch Floor Standing Data Cabinet, Network Rack, Comms Cabinet
Technical Specifications
- Rack Type: Floor standing
- Rack Capacity: 18RU
- Mounting Format: 19-inch rack equipment
- Static Load Capacity: Up to 800kg
- Construction: Rigid welded steel frame
- Steel Thickness: 1.2–1.5mm panels; 2.0mm mounting profiles
- Front Door: Toughened glass with lock
- Rear Door: Lockable vented metal door
- Mounting Rails: Repositionable front and rear vertical rails
- Cable Entry: Removable top and bottom cable-entry panels
- Ventilation: Rear ventilation with compatibility for modular fan trays
- Included Accessories: Two shelves, 20 cage nuts, side locks, castors and levelling feet
- Earthing: Earth continuity leads fitted to each panel
- Finish: Powder-coated metal
- Dimensions (H x L x W): 988mm x 800mm x 600mm
- Weight: 63 kg
Key Features
- 18RU capacity for network, server, telecommunications, security and audio-visual equipment
- 600mm wide by 800mm deep cabinet format
- Rigid welded frame designed for high equipment loads
- Toughened glass front door provides equipment visibility and access control
- Vented lockable rear door assists heat dissipation
- Heavy-duty castors and levelling feet supplied
- Removable side panels for convenient equipment servicing
- Repositionable front and rear mounting rails
- Removable cable entries at the top and bottom of the cabinet
- Supplied with two shelves and 20 cage nuts
- Earth continuity leads fitted to all panels
- Compatible with quick-install modular fan trays
Applications
- Server rooms and data centres
- Telecommunications and communications rooms
- Network equipment installations
- Security and surveillance systems
- Audio-visual equipment installations
- Commercial and light-industrial IT infrastructure
Environmental Benefits
- Steel cabinet components can be recycled at end of service life
- Powder-coated construction provides durable corrosion-resistant protection and can extend product service life
- Vented cabinet design supports equipment cooling and may reduce cooling demand in suitable installations
- Reusable rack format supports equipment upgrades without replacing the cabinet
Warranty Information
5-year warranty against manufacturing defects, subject to the manufacturer's warranty terms.
Available Now
Available through authorised Redback Racks distributors in Australia.
