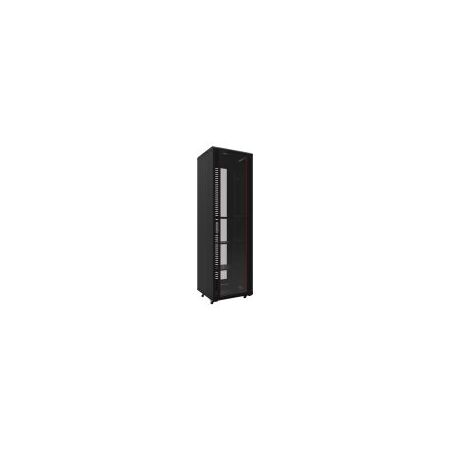

Floor Standing Cabinet 27RU 600x1000mm Glass Door A5 Redback
Redback A5 floor standing cabinet features 27RU, 1000mm depth, welded frame, glass front door, vented rear door, and castors. Ideal for server and comms rooms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 27RU Server Rack Cabinet, 19-Inch Floor Standing Data Cabinet, Network Cabinet, Communications Rack
Technical Specifications
- Rack Format: 19-inch standard rack mounting
- Rack Capacity: 27RU
- Load Capacity: Up to 800kg on levelling feet
- Construction: Rigid welded internal frame
- Material Thickness: 1.2–1.5mm metal, with 2.0mm mounting profiles
- Front Door: Lockable toughened glass
- Rear Door: Lockable vented metal door
- Mounting Rails: Adjustable front and rear vertical rails
- Ventilation: Passive vented rear door; compatible with modular fan units
- Cable Access: Removable cable entry plates at the top and bottom
- Included Accessories: Three shelves and 20 cage nuts
- Mobility: Heavy-duty castors with levelling feet
- Ingress Protection: IP20
- Finish: Powder-coated metal
- Mounting Compatibility: ANSI/EIA RS-310-D, DIN41497 Part 1, IEC297-2, DIN41494 Part 7 and ETSI rack formats
- Dimensions (H x L x W): 1388mm x 1000mm x 600mm
- Weight: 99 kg
Key Features
- 27RU of equipment mounting capacity
- 600mm-wide, 1000mm-deep format suitable for servers, networking equipment and UPS systems
- Toughened glass front door for equipment visibility
- Vented rear door supports passive airflow and heat dissipation
- Welded frame provides a rigid, fully assembled cabinet structure
- Removable side panels and cable entry plates simplify installation and maintenance
- Adjustable front and rear mounting rails accommodate varied equipment depths
- Heavy-duty castors allow the cabinet to be positioned before levelling
- Levelling feet provide stable support for installed equipment
- Includes shelves, cage nuts, side locks and panel earth continuity leads
Professional Installation Requirements
- Positioning, levelling and equipment fit-out should be completed by suitably trained IT, data-cabling or communications personnel. Secure the cabinet against movement or tipping where required, and observe the load ratings of the cabinet, shelves and installed equipment.
Applications
- Server rooms
- Communications rooms
- Data centres
- Network infrastructure installations
- Security and surveillance equipment housing
- Telecommunications equipment installations
- Commercial and industrial IT equipment storage
Environmental Benefits
- Steel cabinet construction is recyclable at end of service life
- Powder-coated finish provides durable corrosion and wear resistance, helping extend product lifespan
- Passive ventilation can reduce reliance on powered cooling for suitable low-heat equipment installations
- Removable panels and replaceable rack accessories can support repair and upgrade rather than full cabinet replacement
Warranty Information
5-year manufacturer warranty against manufacturing defects, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through authorised REDBACK_RACKS distributors in Australia.
