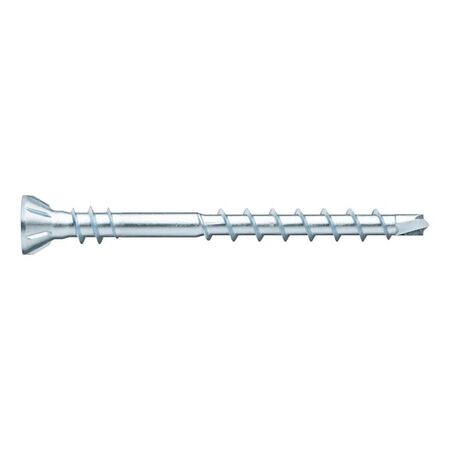

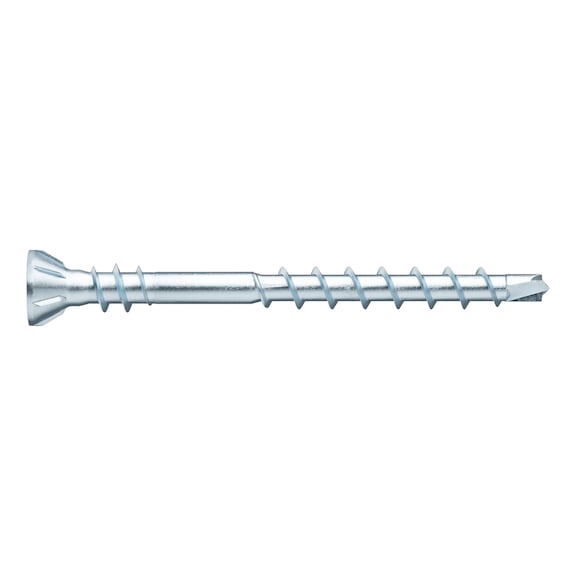

Flooring Screw ASSY®plus 4 P CSMR 60 | Hardened Zinc-Plated Steel | Partial Thread Countersunk Head | @Pack of 500 | by Wurth
The ASSY®plus 4 P CSMR 60 flooring screw is designed for high-performance fastening in interior fitting and furniture assembly. With a hardened zinc-plated steel construction and a unique partial thread design, it ensures a firm hold and prevents creaking noises. Ideal for professionals, this screw features a 60° countersunk head for gap-free fastening close to edges, making it perfect for cabinetry and store construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flooring Screw ASSY®plus 4 P CSMR 60 | Hardened Zinc-Plated Steel | Partial Thread Countersunk Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178083540
Alternatively Known As: Flooring screw, Wood screw, Countersunk screw, Partial thread screw, Zinc plated flooring screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 40 mm
- Thread length: 20 mm
- Screw-thread length with drill tip: 23.5 mm
- Head type: Countersunk head 60° with milling ribs
- Head diameter: 6 mm
- Head height: 3.2 mm
- Internal drive: RW10
- Thread type: Wood screw thread, partial thread with underhead thread
- Shaft length: 5.0 mm
- Thread form: Coarse thread
- Core diameter: 2.1 mm
- Core diameter of head thread: 2.5 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90°
- Min screw-in angle: 0°
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood, Construction timber (KVH)
- Approval: ETA-11/0190
- Product weight per item: 1.75 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 40mm x 6mm
- Weight: 0.09 kg
Key Features
- Partial thread flooring screw with underhead thread for high joining effect
- Small 60° countersunk milling head suitable for gap-free fastening close to edges without pre-drilling
- Firm hold of underhead thread prevents creaking or squeaking noises when walking on the floor
- Ideal power transmission with RW drive for more power and stability
- Precise positioning and clean drilling due to advanced centring drill tip and centring pin
- Quick screwing with gentle thread start and easy countersinking in hardwood and softwood
- Reduced splitting of components due to screw design and milling ribs on countersunk head
- Maximum reliability of screw connection
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety.
Applications
- Interior fitting
- Cabinet construction
- Store construction
- Exhibition stand construction
- Furniture assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY®plus 4 P CSMR 60 flooring screw is available for immediate purchase, ideal for interior fitting, cabinetry, and furniture assembly.
