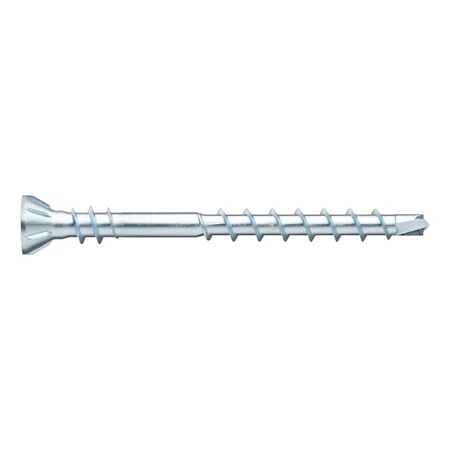

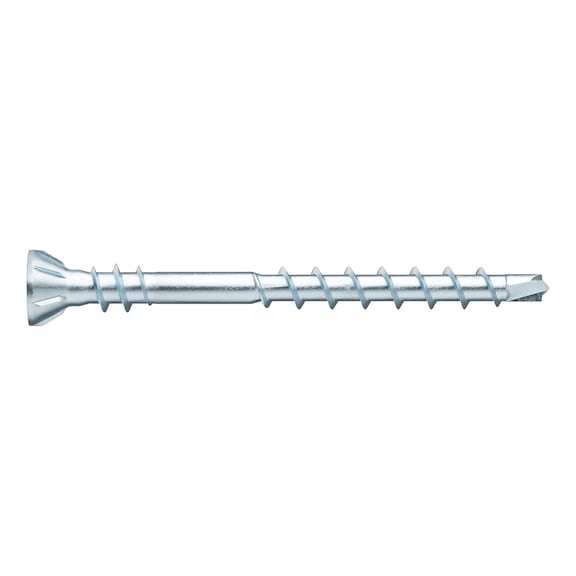

Flooring Screw ASSY®plus 4 P CSMR 60 | Hardened Zinc-Plated Steel | Partial Thread Countersunk Head | @Pack of 500 | by Wurth
The ASSY®plus 4 P CSMR 60 flooring screw is designed for high-performance fastening in various applications, featuring a hardened zinc-plated steel construction and a partial thread for superior joining. Ideal for interior fitting, cabinet making, and furniture assembly, this screw ensures a firm hold and reduces noise when walking on floors, making it perfect for both hardwood and softwood installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Flooring Screw ASSY®plus 4 P CSMR 60 | Hardened Zinc-Plated Steel | Partial Thread Countersunk Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178083560
Alternatively Known As: Flooring screw, Wood screw, Countersunk screw, Partial thread screw, Zinc-plated flooring screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 60 mm
- Thread length: 37 mm
- Screw-thread length with drill tip: 40.5 mm
- Head type: Countersunk head 60° with milling ribs
- Head diameter: 6 mm
- Head height: 3.2 mm
- Internal drive: RW10
- Thread type: Wood screw thread, partial thread with underhead thread
- Shaft length: 8.0 mm
- Thread form: Coarse thread
- Core diameter: 2.1 mm
- Core diameter of head thread: 2.5 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90°
- Min screw-in angle: 0°
- Suitable materials: Board ply wood (BSP), wood, derived timber products, hardwood, LVL, softwood, construction timber (KVH)
- Product weight per item: 2.64 g
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 3.2mm x 60mm x 6mm
- Weight: 1.32 kg
Key Features
- Partial thread flooring screw with underhead thread for high joining effect
- Small 60° countersunk milling head suitable for gap-free fastening close to edges without pre-drilling
- Firm hold of underhead thread prevents creaking or squeaking noises when walking on the floor
- Ideal power transmission with RW drive for more power and stability
- Precise positioning and clean drilling due to advanced centring drill tip and centring pin
- Quick screwing with gentle thread start and easy countersinking in hardwood and softwood
- Reduced splitting of components due to screw design and milling ribs on countersunk head
- Maximum reliability of screw connection
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety, especially in structural applications.
Applications
- Interior fitting
- Cabinet making
- Store construction
- Exhibition stand construction
- Furniture assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Warranty as per Wurth standard terms and conditions. Please refer to Wurth for detailed warranty information.
Available Now
The Wurth ASSY®plus 4 P CSMR 60 flooring screw is available for immediate purchase. Ideal for interior fitting, cabinetry, and furniture construction.
