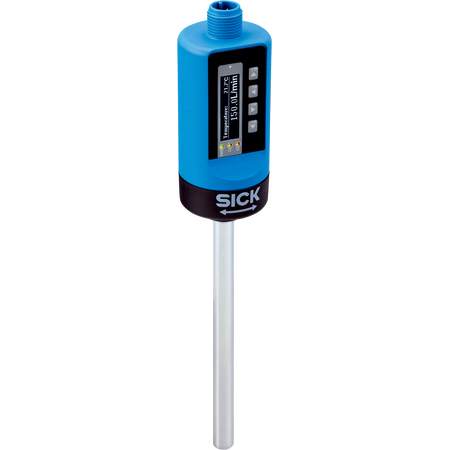

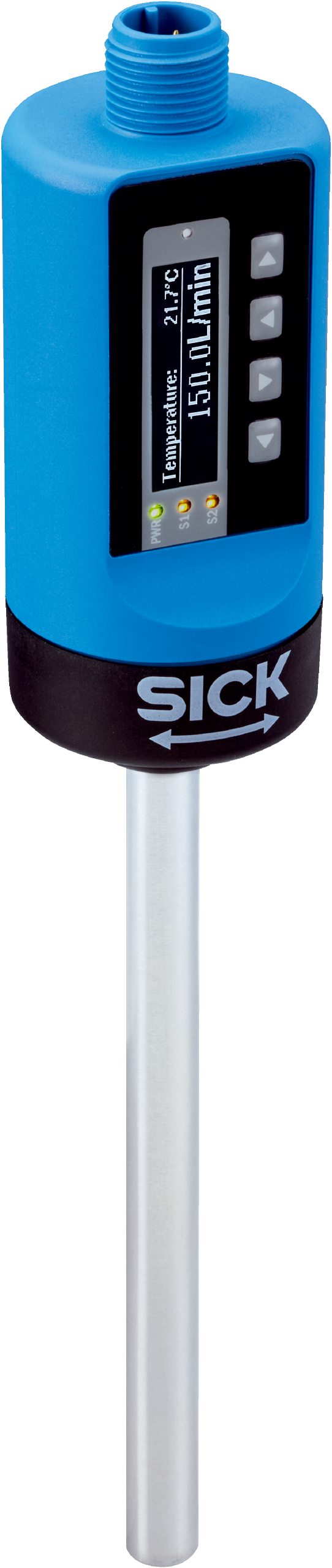

Flow Thermal Switch FTS-I100F14B | Calorimetric Measurement | IP67 Rated | OLED Display | by SICK
The Flow Thermal Switch FTS-I100F14B is designed for precise flow measurement in water and oil-based liquids, featuring a calorimetric measurement process and an impressive measuring range from 3 cm/s to 600 cm/s. With an IP67 enclosure rating and an OLED display, it's perfect for industrial applications requiring accurate flow and temperature monitoring, ensuring optimal fluid usage and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Flow Thermal Switch, Thermal Flow Sensor, Flow Sensor with Temperature Measurement, IO-Link Flow Switch
Technical Specifications
- Dimensions (H x L x W): 20mm x 100mm x 20mm
- Weight: 0.1 kg
Key Features
- Calorimetric measurement process
- Suitable for water and oil-based liquids
- Measuring range from 3 cm/s to 600 cm/s depending on medium
- Process temperature range from –40 °C to +150 °C
- Process pressure up to 100 bar depending on connector
- Communication interface: IO-Link V1.1, COM3 (230.4 kbit/s)
- OLED display with 3 status LEDs
- High measurement accuracy ±7% of measured value plus 2% of range end value
- Repeatability less than 1 cm/s
- Response time less than 2.5 seconds
- Supply voltage 9 V DC to 30 V DC
- Power consumption less than 8 W at maximum load
- Protection class III with IP67 enclosure rating
- Stainless steel wetted parts and robust housing material
- M12 round connector, 4-pin
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and calibration.
Applications
- Measurement of flow in water and oil-based liquids
- Industrial process monitoring requiring flow and temperature measurement
- Use in pipes with diameters ≥ 25 mm
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption contributes to energy efficiency
- Accurate flow measurement helps optimize fluid usage and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK FTS-I100F14B Flow Thermal Switch is available for immediate purchase, ideal for industrial flow and temperature monitoring applications.
