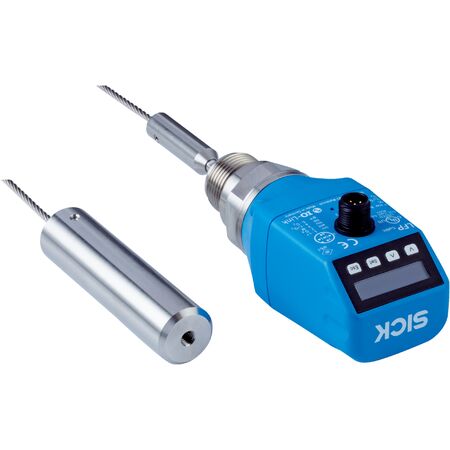

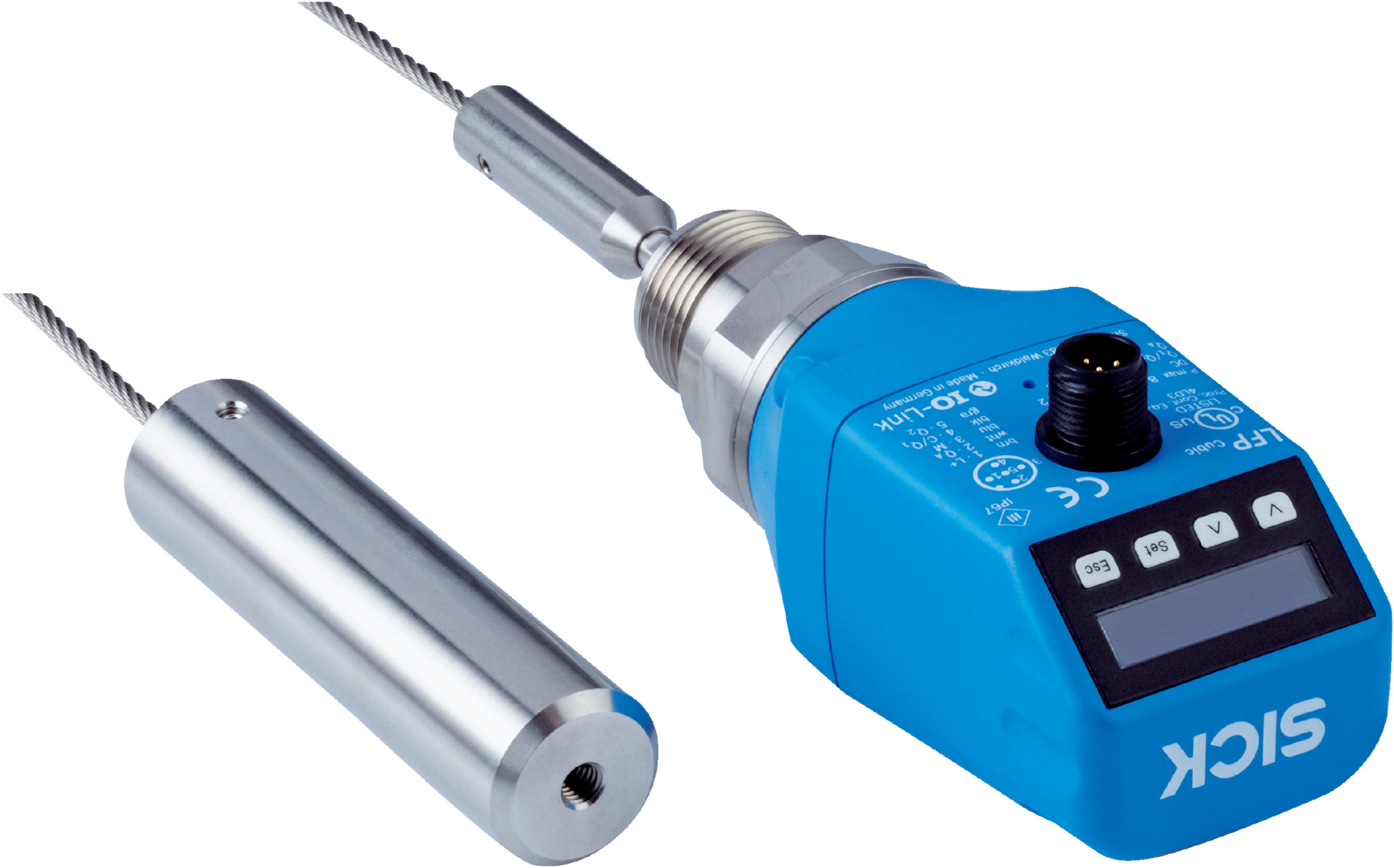

Fluid Level Sensor | Cable Probe | IP67 Rated | 4000 mm Length | by SICK
The Fluid Level Sensor with a cable probe design is perfect for precise fluid level measurement in industrial processes. With a robust IP67 rating and a 4000 mm probe length, it offers high accuracy of ±5 mm and a fast response time of 400 ms. Ideal for applications in chemical, pharmaceutical, and food industries, this sensor ensures reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement: Switch and continuous level
- Probe type: Cable probe, 4000 mm length
- Process pressure range: -1 bar to 10 bar
- Process temperature range: -20 °C to +100 °C
- Accuracy: ±5 mm
- Reproducibility: ≤ 2 mm
- Resolution: < 2 mm
- Response time: 400 ms
- Dielectric constant: ≥ 5 for rod probe / cable probe ≥ 1.8 with coaxial tube
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤ 100 mA at 24 V DC
- Output signals: 1 x PNP + 3 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67
- Connection: M12 round connector, 8-pin
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: G ¾ A
- Housing material: Plastic PBT
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 50mm x 4000mm x 30mm
- Weight: 1.2 kg
Key Features
- Suitable for fluids with process pressure from -1 bar to 10 bar
- Measurement types: switch and continuous
- Standard amplifier design with cable probe
- Probe length of 4000 mm
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- Communication via IO-Link interface
- Protection class IP67 for harsh environments
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Stainless steel wetted parts for corrosion resistance
- Wide ambient operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with fluid level sensors and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in liquids
- Use in chemical, pharmaceutical, and food industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and spillage
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LFP4000-E5NMC fluid level sensor is available for immediate purchase, ideal for industrial fluid monitoring applications requiring high accuracy and robust performance.
