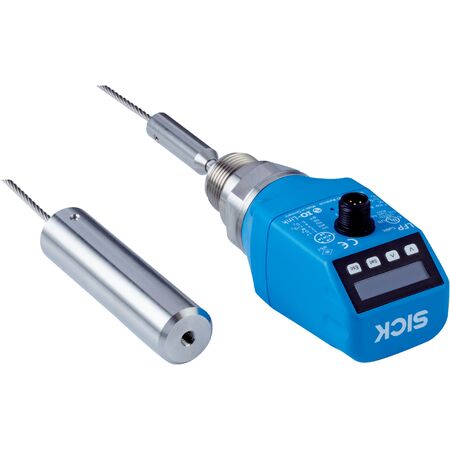

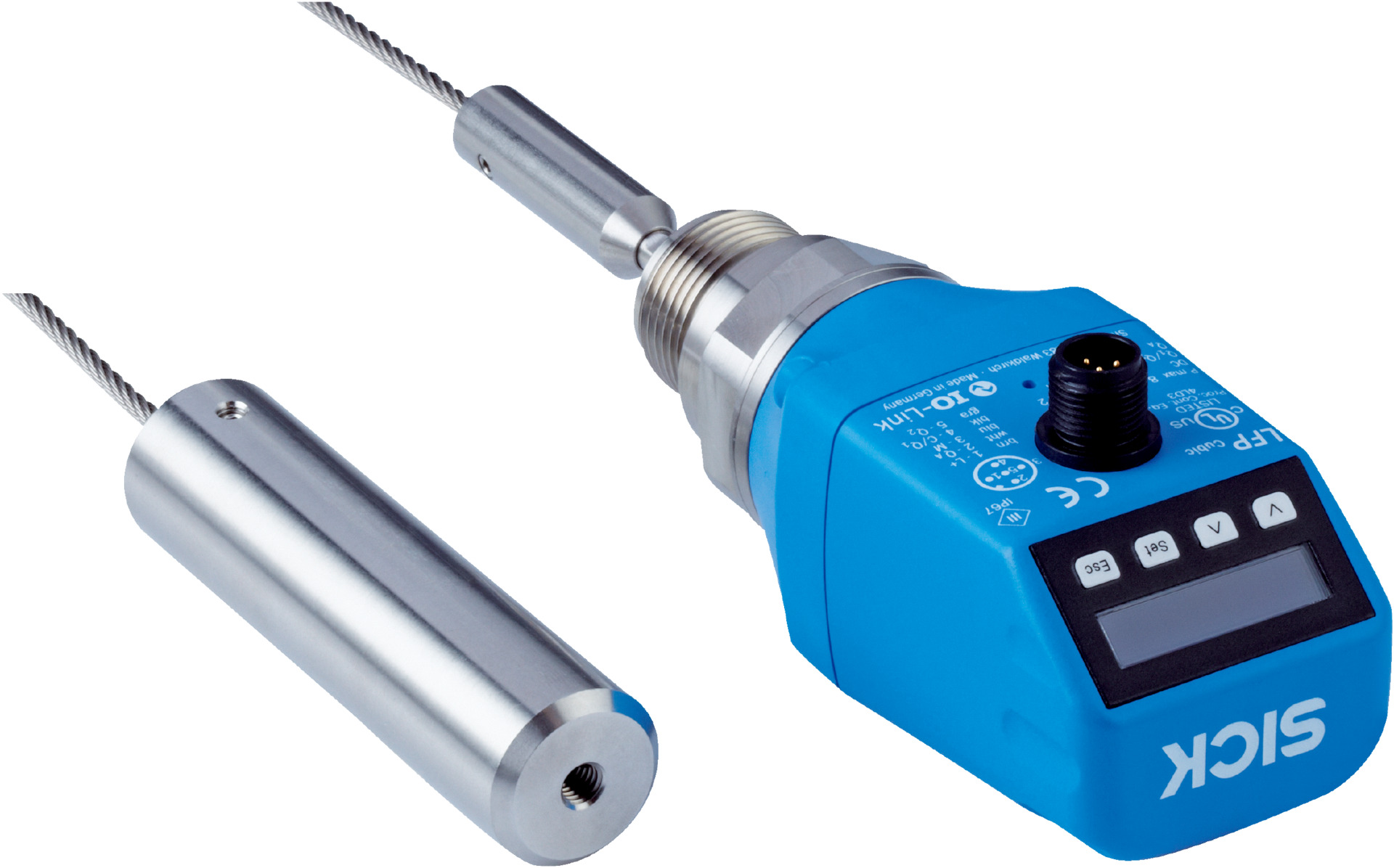

Fluid Level Sensor | Cable Probe Type | Switch & Continuous Measurement | IP67 Rated | by SICK
The Fluid Level Sensor LFP3000-E4NMB is designed for precise fluid level measurement in industrial processes, featuring both switch and continuous level detection. With a cable probe length of 3000 mm and an IP67 enclosure rating, it ensures reliable performance in harsh environments, making it ideal for applications with process pressures from -1 bar to 10 bar and temperatures from -20 °C to +100 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement: Switch and continuous level
- Probe type: Cable probe, length 3000 mm
- Process pressure range: -1 bar to 10 bar
- Process temperature range: -20 °C to +100 °C
- Accuracy: ±5 mm
- Reproducibility: ≤ 2 mm
- Resolution: < 2 mm
- Response time: 400 ms
- Dielectric constant: ≥ 5 for rod probe / cable probe, ≥ 1.8 with coaxial tube
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤ 100 mA at 24 V DC
- Output signals: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67
- Connection type: Round connector M12 x 1, 5-pin
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: G ¾ A
- Housing material: Plastic PBT
- Operating ambient temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 30mm x 3000mm x 30mm
- Weight: 0.5 kg
Key Features
- Measurement types: switch and continuous level detection
- Standard amplifier design with cable probe type
- Probe length of 3000 mm
- High accuracy with ±5 mm sensor element accuracy
- Reproducibility ≤ 2 mm and resolution < 2 mm
- Response time of 400 ms
- Communication interface: IO-Link
- Supply voltage range 12 V DC to 30 V DC
- Output signals include PNP, PNP/NPN, 4 mA to 20 mA, and 0 V to 10 V
- Enclosure rating IP67 for protection against dust and water
- Wetted parts made of stainless steel 1.4404 / 316L, PTFE, and FKM
- Process connection G ¾ A
- Housing material: Plastic PBT
- Operating ambient temperature from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor systems and electrical connections to ensure safety and compliance.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in liquids
- Use in environments with process pressures from -1 bar to 10 bar
- Suitable for temperatures from -20 °C to +100 °C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable materials increase product lifespan and reduce replacement frequency
- Low power consumption design
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP3000-E4NMB level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
