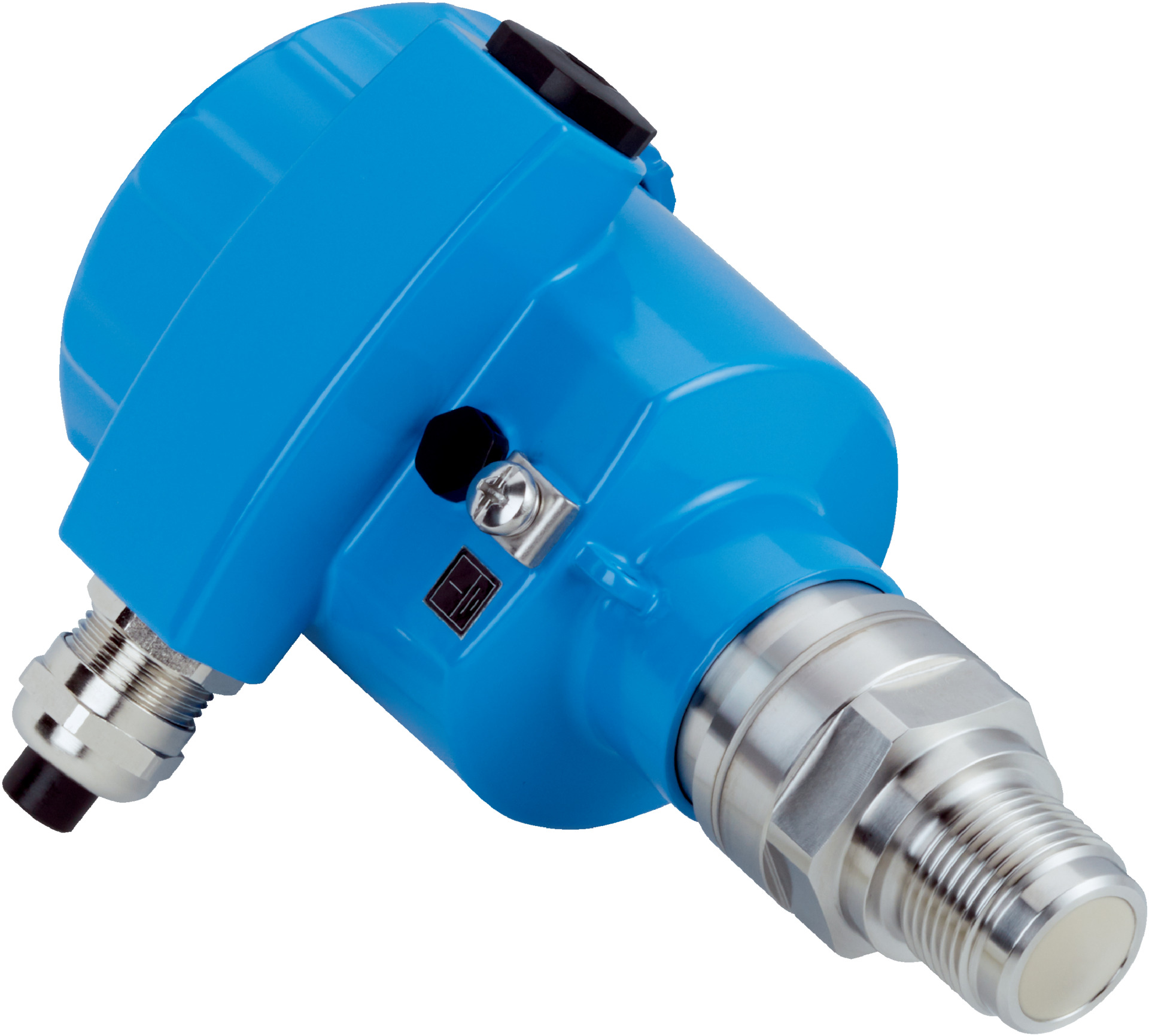

Fluid Level Sensor | Continuous Measurement | ATEX Certified | IP67 Protection | by SICK
The Fluid Level Sensor offers continuous measurement of fluids with high accuracy (≤ 1 mm), making it ideal for industrial process tanks. Designed for hazardous environments, it features a durable PEEK probe and operates on a W-band frequency (75 to 85 GHz). With an IP67 rating and HART communication, this sensor ensures reliable performance in chemical and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Continuous
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Process pressure: -1 bar to 20 bar (-100 kPa to 2000 kPa)
- Process temperature: -40 °C to +130 °C
- Accuracy of sensor element: ≤ 1 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Communication interface: HART
- Supply voltage: 12 V DC to 35 V DC
- Protection class: III (IEC 61010-1)
- Connection type: M20 x 1.5 / cable gland PA black (ø 5 mm - 9 mm)
- Output signal: 4 mA to 20 mA / HART
- Enclosure rating: IP67
- EMC: EN 61326-1
- Short-circuit protection: Yes
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Continuous fluid level measurement with high accuracy (≤ 1 mm)
- Thread probe with integrated horn antenna made from durable PEEK
- W-band frequency operation (75 to 85 GHz)
- Bluetooth magnet pin operation for easy control and configuration
- HART communication interface for digital communication
- ATEX II 1G, 1/2G, 2G Ex ia IIC T6 certified for hazardous environments
- Robust plastic single-chamber housing with IP67 protection
- Wide process pressure range from -1 bar to 20 bar
- Wide process temperature range from -40 °C to +130 °C
- Display installed for local readings
- Short-circuit protection and EMC compliance (EN 61326-1)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with hazardous area equipment and electrical safety standards to ensure compliance with ATEX and local regulations.
Applications
- Fluid level measurement in industrial process tanks
- Continuous monitoring of liquids in chemical and food industries
- Use in hazardous areas with ATEX certification
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable materials and long MTBF (3.37 million hours) reduce replacement frequency
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

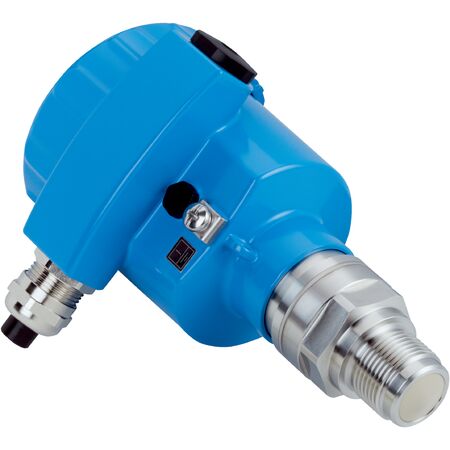

The SICK LFR-ACTTAAMHKKX fluid level sensor is available for immediate purchase, ideal for industrial fluid monitoring in hazardous and non-hazardous environments.
