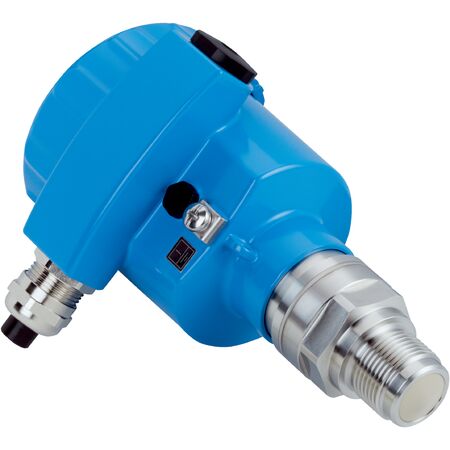

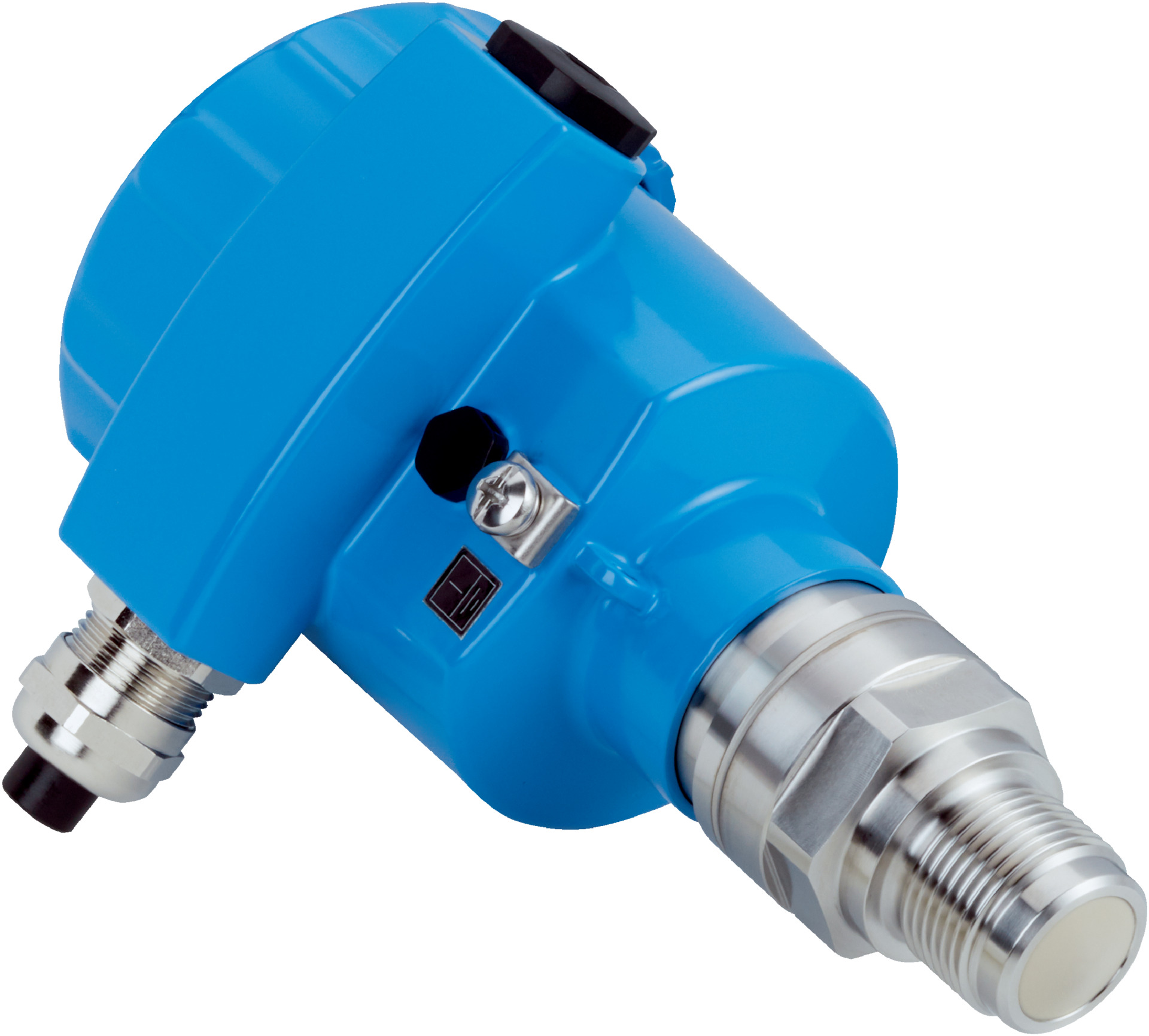

Fluid Level Sensor | Continuous Measurement | Bluetooth & HART Communication | IP66/IP68/IP69 Rated | by SICK
The Fluid Level Sensor LFR-XXTTCBMHZKX offers continuous measurement of fluid levels with high accuracy (≤ 1 mm), making it ideal for industrial processes. With Bluetooth magnet pin operation and HART communication, it integrates seamlessly into control systems. Its robust stainless steel housing ensures durability and IP66/IP68/IP69 protection, suitable for chemical, food and beverage, and pharmaceutical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 200mm x 50mm x 50mm
- Weight: 2.5 kg
Key Features
- Continuous measurement of fluid levels with high accuracy (≤ 1 mm)
- Thread probe with integrated horn antenna made from PEEK
- Frequency band W-band (75 to 85 GHz) for precise sensing
- Bluetooth magnet pin operation for easy control and configuration
- HART communication interface for integration with control systems
- Robust stainless steel electropolished housing with IP66/IP68/IP69 protection
- Wide process temperature range from -40 °C to +200 °C
- Process pressure tolerance from -1 bar to 20 bar
- Installed display for real-time monitoring
- Short-circuit protection and EMC compliance (EN 61326-1)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Continuous fluid level measurement in industrial processes
- Suitable for use in chemical, food and beverage, and pharmaceutical industries
- Process monitoring in tanks and vessels with pressures up to 20 bar
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable materials and design reduce waste and replacement frequency
- Energy-efficient operation with low start-up current (< 3.6 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LFR-XXTTCBMHZKX fluid level sensor is available for immediate purchase, ideal for industrial fluid measurement and process control applications.
