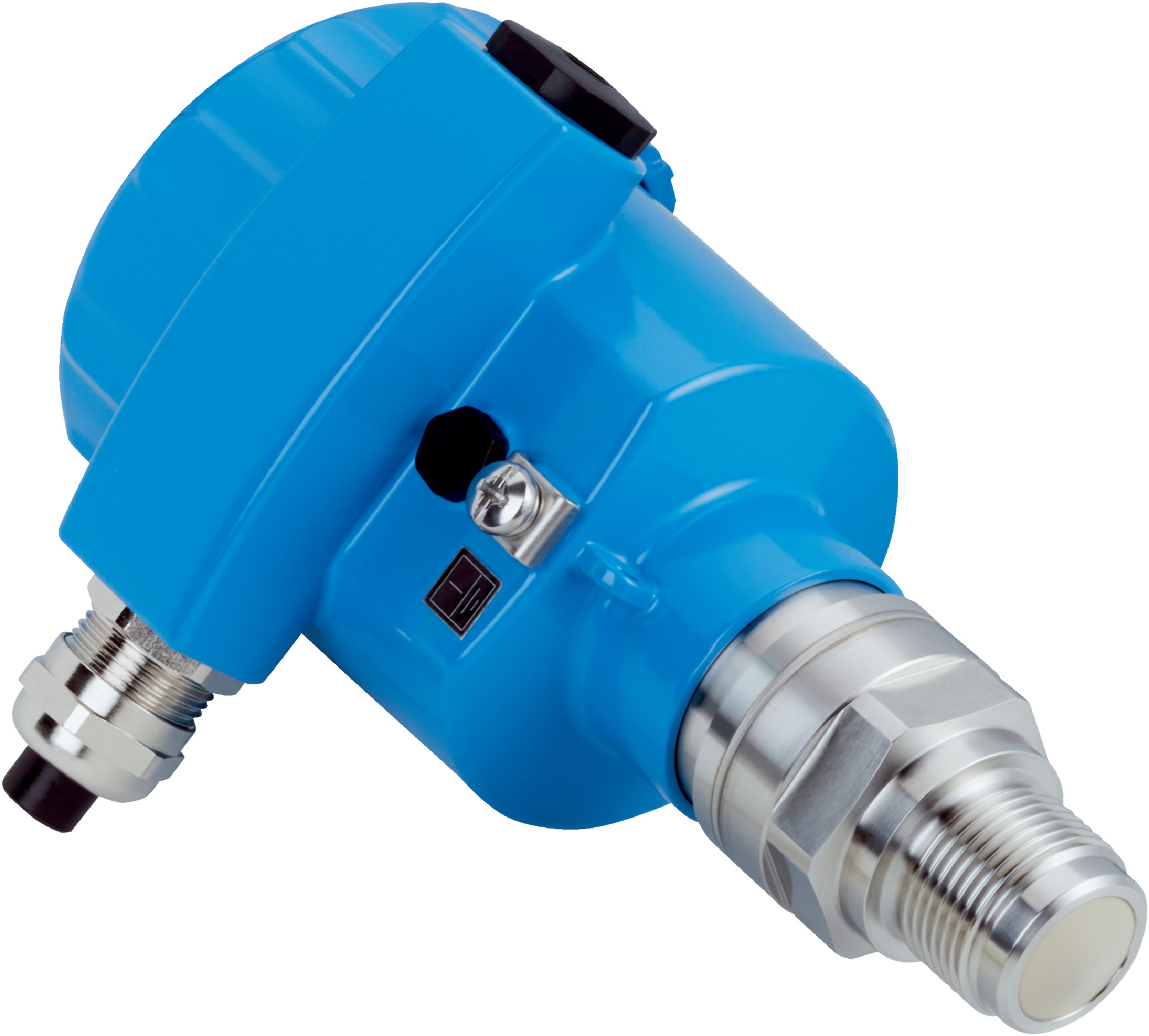

Fluid Level Sensor | Continuous Measurement | IP67 Rated | Bluetooth Enabled | by SICK
The Fluid Level Sensor offers continuous measurement of fluid levels with high accuracy of ≤ 1 mm, making it ideal for industrial processes. Designed for harsh environments, it features an IP67 enclosure and operates within a wide temperature range of -40 °C to +130 °C. With Bluetooth magnet pin operation and HART communication, this sensor is perfect for chemical, food, and pharmaceutical industries, ensuring reliable process monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Continuous
- Probe type: Thread with integrated horn antenna made from PEEK
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 20 m
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar
- Process temperature: -40 °C to +130 °C
- Accuracy of sensor element: ≤ 1 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- MTBF: 3.37 million hours
- Communication interface: HART
- Supply voltage: 12 V DC to 35 V DC
- Protection class: III (IEC 61010-1)
- Connection type: M20 x 1.5 / plug connector M12 x 1 pin assignment B
- Output signal: 4 mA to 20 mA / HART
- Enclosure rating: IP67
- EMC: EN 61326-1
- Short-circuit protection: Yes
- Housing material: Plastic
- Sealing material: FKM
- Antenna material: PEEK
- Dimensions (H x L x W): 200mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Continuous measurement of fluid levels with high accuracy (≤ 1 mm)
- Probe with integrated horn antenna made from durable PEEK material
- Frequency band: W-band (75 to 85 GHz) for precise sensing
- Measuring range up to 20 meters
- Bluetooth magnet pin operation for easy control and configuration
- HART communication interface for integration with control systems
- Robust design with IP67 enclosure rating for harsh environments
- Process pressure range from -1 bar to 20 bar
- Process temperature range from -40 °C to +130 °C
- Display installed for local readout
- Short-circuit protection and overvoltage category III compliant
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Continuous fluid level measurement in industrial processes
- Suitable for use in chemical, food, and pharmaceutical industries
- Process monitoring in tanks and vessels with fluids
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable materials and long MTBF (3.37 million hours) reduce replacement frequency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now

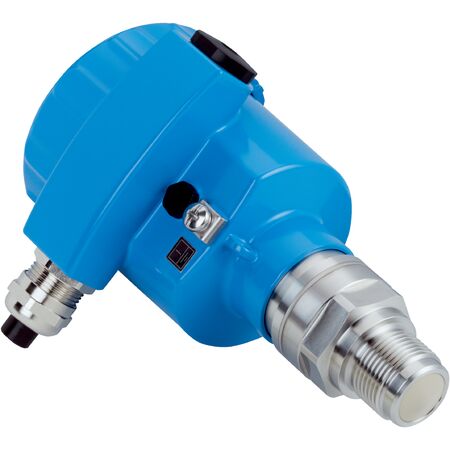

The SICK LFR-XXUTDABHKKX fluid level sensor is available for immediate purchase, ideal for industrial fluid monitoring applications.
