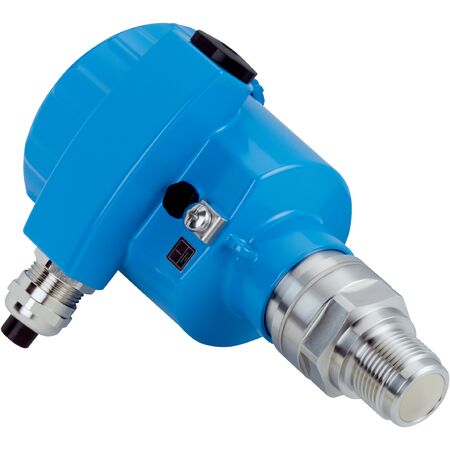

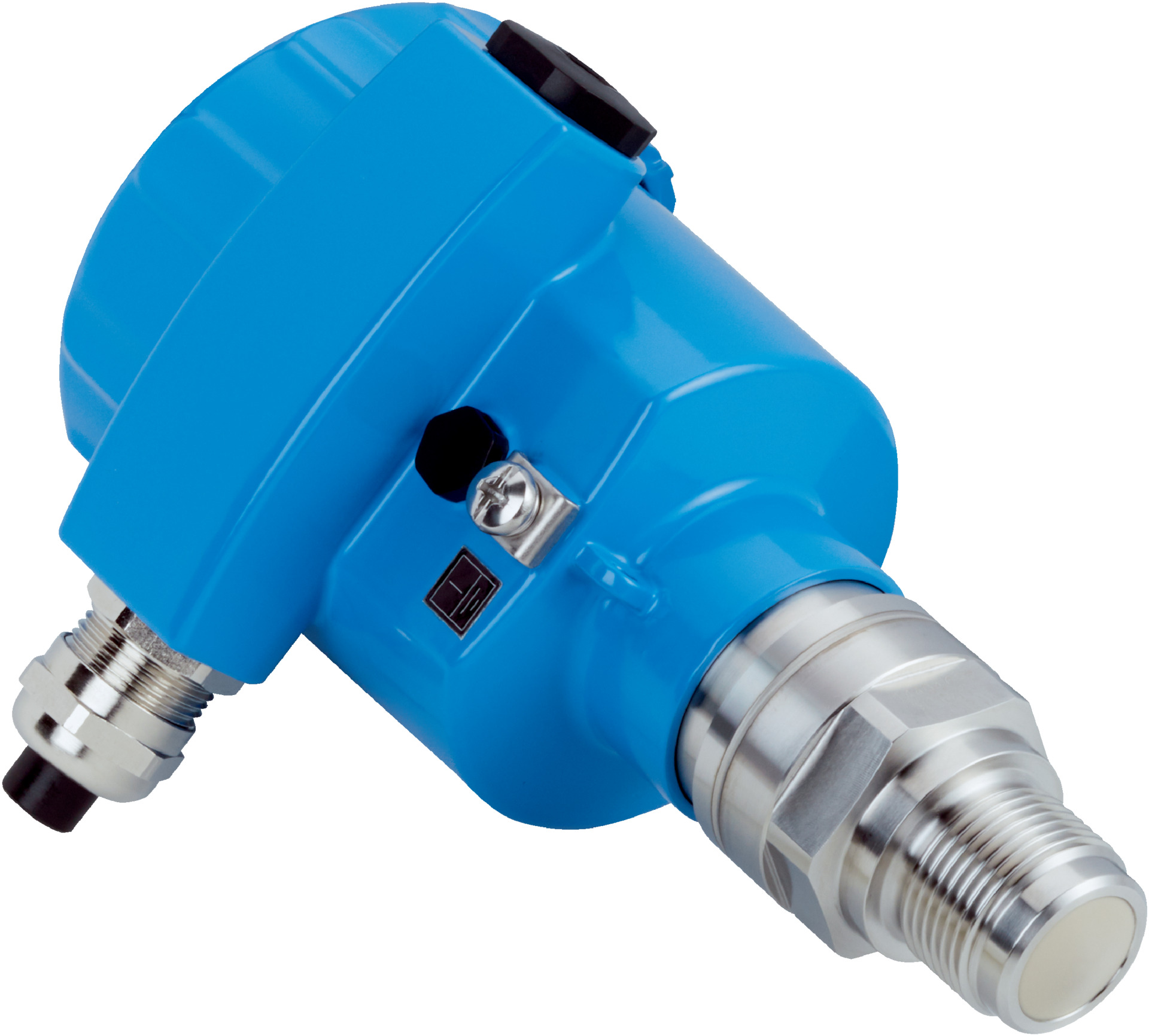

Fluid Level Sensor | Continuous Measurement | W-band Frequency | IP66/IP68 Rated | by SICK
The Fluid Level Sensor LFR-XXTTCAMHAAX offers continuous fluid level measurement with high accuracy of ≤ 1 mm, making it ideal for industrial applications. With a measuring range of up to 20 meters and a robust IP66/IP68 rated enclosure, this sensor is perfect for chemical, food, and pharmaceutical industries, ensuring reliable performance even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement: Continuous fluid level
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: Up to 20 m
- Angle of dispersion: 7°
- Process pressure: -1 bar to 20 bar
- Process temperature: -40 °C to +130 °C
- Accuracy: ≤ 1 mm
- Non-repeatability: ≤ 1 mm
- Digital measurement resolution: < 1 mm
- Analog measurement resolution: 0.3 µA
- Measurement cycle time: Approx. 700 ms
- Step response time: ≤ 3 s
- Supply voltage: 12 V DC to 35 V DC
- Output signal: 4 mA to 20 mA / HART
- Protection class: III (IEC 61010-1)
- Enclosure rating: IP66 / IP68
- Connection type: M20 x 1.5 cable gland
- Housing material: Aluminum
- Sealing material: FKM
- Antenna material: PEEK
- Dimensions (H x L x W): 200mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Continuous measurement of fluids with high accuracy (≤ 1 mm)
- Probe with integrated horn antenna made from durable PEEK material
- W-band frequency operation (75 to 85 GHz) for precise sensing
- Measuring range up to 20 meters
- Process pressure tolerance from -1 bar to 20 bar
- Wide process temperature range from -40 °C to +130 °C
- HART communication interface for easy integration and control
- IP66/IP68 rated enclosure for robust protection against dust and water
- Pushbutton operation with installed display for user-friendly control
- Short-circuit protection and EMC compliance (EN 61326-1)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Continuous fluid level measurement in industrial processes
- Suitable for use in chemical, food, and pharmaceutical industries
- Process monitoring in tanks and vessels with pressures up to 20 bar
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable materials and long MTBF (3.37 million hours) reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFR-XXTTCAMHAAX fluid level sensor is available for immediate purchase, ideal for industrial fluid measurement applications requiring high accuracy and robust design.
