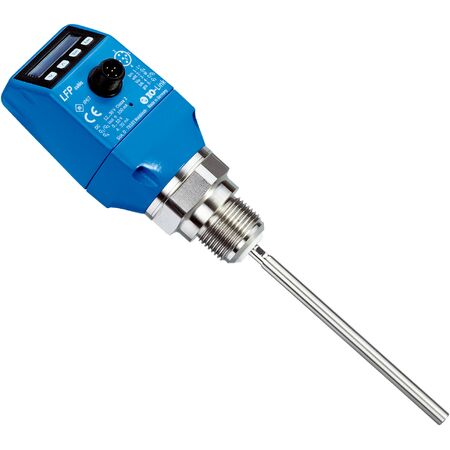

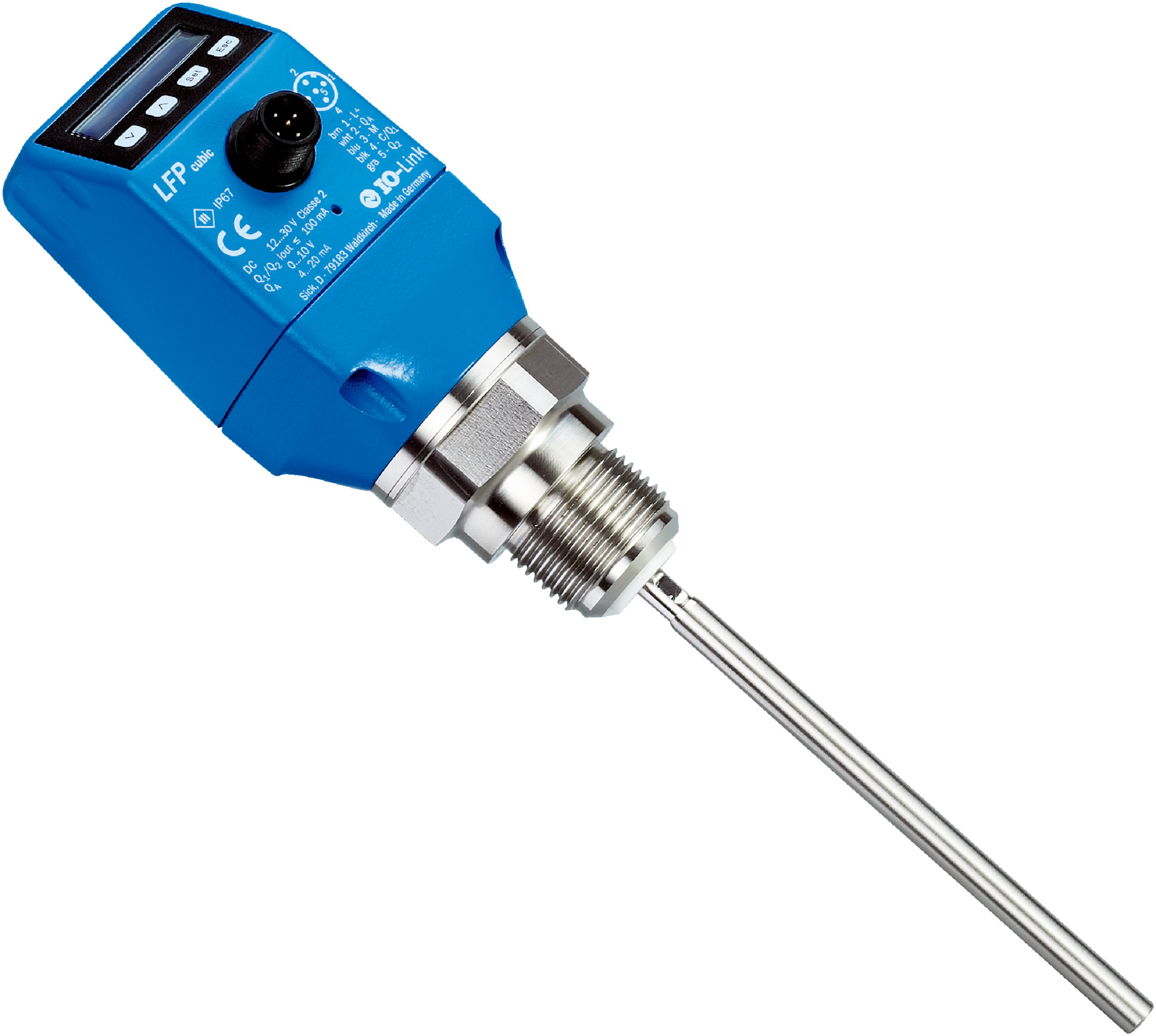

Fluid Level Sensor | Continuous & Switch Level Detection | 450mm Rod Probe | IP67 Protection | by SICK

BRAND: SICK
SKU: 1063801
$1,425.70 List price: $1,792.00
+ −
30 Days Return Delivery Options
The Fluid Level Sensor LFP0450-A5NMC offers both continuous and switch level detection, making it ideal for industrial fluid monitoring. With a robust 450mm rod probe and IP67 protection, it operates effectively in harsh environments. Designed for liquids with varying dielectric constants, this sensor ensures high accuracy and fast response times, helping to prevent overflows and spills.
Technical Specifications
  • Dimensions (H x L x W): 30mm x 450mm x 30mm
  • Weight: 0.5 kg
Key Features
  • Measurement types: switch and continuous level detection
  • Standard amplifier design with rod probe
  • Probe length of 450 mm suitable for various tank sizes
  • Process pressure range from -1 bar to 10 bar
  • Operating temperature range from -20 °C to +100 °C
  • High accuracy with ±5 mm sensor element accuracy
  • Fast response time of 400 ms
  • Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
  • Communication interface via IO-Link
  • Protection class IP67 for robust operation in harsh environments
  • Wetted parts made of stainless steel 1.4404 / 316L, PTFE, and FKM
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
  • Fluid level measurement and monitoring in industrial processes
  • Suitable for liquids with varying dielectric constants
  • Use in environments requiring continuous and switch level detection
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable stainless steel and high-quality materials ensure long service life reducing waste
  • Low power consumption (≤ 100 mA at 24 V DC) supports energy efficiency
  • Accurate level measurement helps prevent overflows and spills, protecting the environment
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK LFP0450-A5NMC Fluid Level Sensor is available for immediate purchase, ideal for industrial fluid monitoring and control applications.
