Fluid Level Sensor | Continuous & Switch Measurement | 500mm Probe Length | IP67 Rated | by SICK
The Fluid Level Sensor is designed for precise continuous and switch level measurement in industrial applications. With a robust 500mm probe, it operates effectively under varying pressure and temperature conditions, ensuring high accuracy and fast response times. Ideal for monitoring fluid levels in tanks and vessels, this sensor features an IP67 enclosure for protection against dust and water, making it a reliable choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Continuous Level Switch, IO-Link Level Sensor
Technical Specifications
- Dimensions (H x L x W): 30mm x 500mm x 30mm
- Weight: 0.5 kg
Key Features
- Measurement types: Switch and continuous level measurement
- Standard amplifier design with rod probe
- Probe length of 500 mm suitable for various tank sizes
- Process pressure range from -1 bar to 10 bar
- Process temperature range from -20 °C to +100 °C
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- Communication interface: IO-Link for easy integration
- Output signals include PNP, PNP/NPN, 4 mA to 20 mA, and 0 V to 10 V
- Enclosure rating IP67 for protection against dust and water
- Wetted parts made of stainless steel 1.4404 / 316L, PTFE, and FKM
- Robust plastic PBT housing
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Fluid level measurement and monitoring in industrial processes
- Continuous and switch level detection in tanks and vessels
- Suitable for use with various fluids under pressure and temperature conditions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce waste and replacement frequency
- Low power consumption (≤ 100 mA at 24 V DC) supports energy efficiency
- IO-Link communication enables precise monitoring and control, reducing resource waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

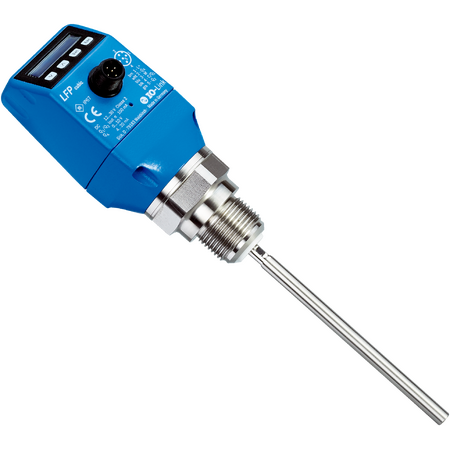

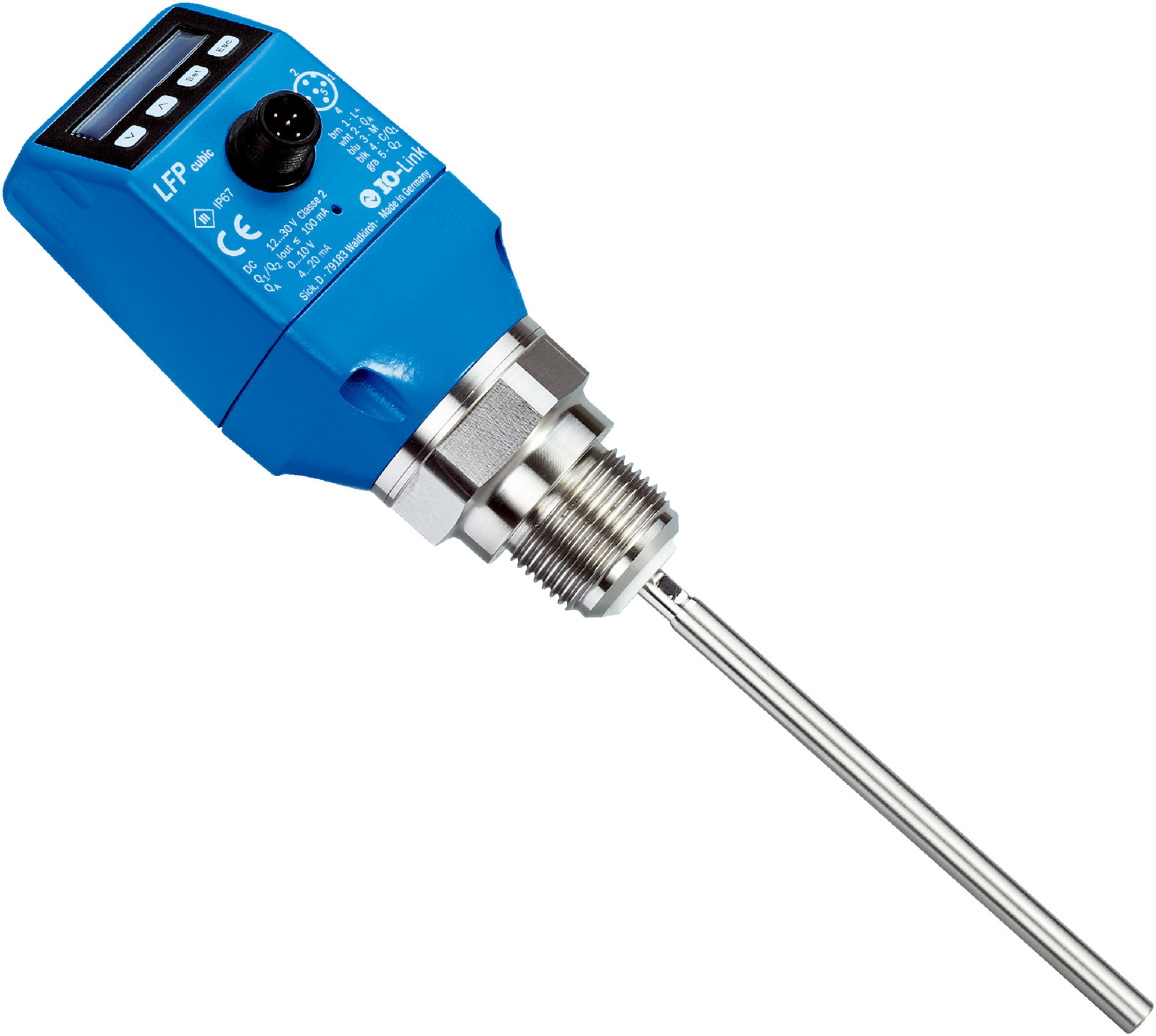

The SICK LFP0500-A4NMB Level Fluid Sensor is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
