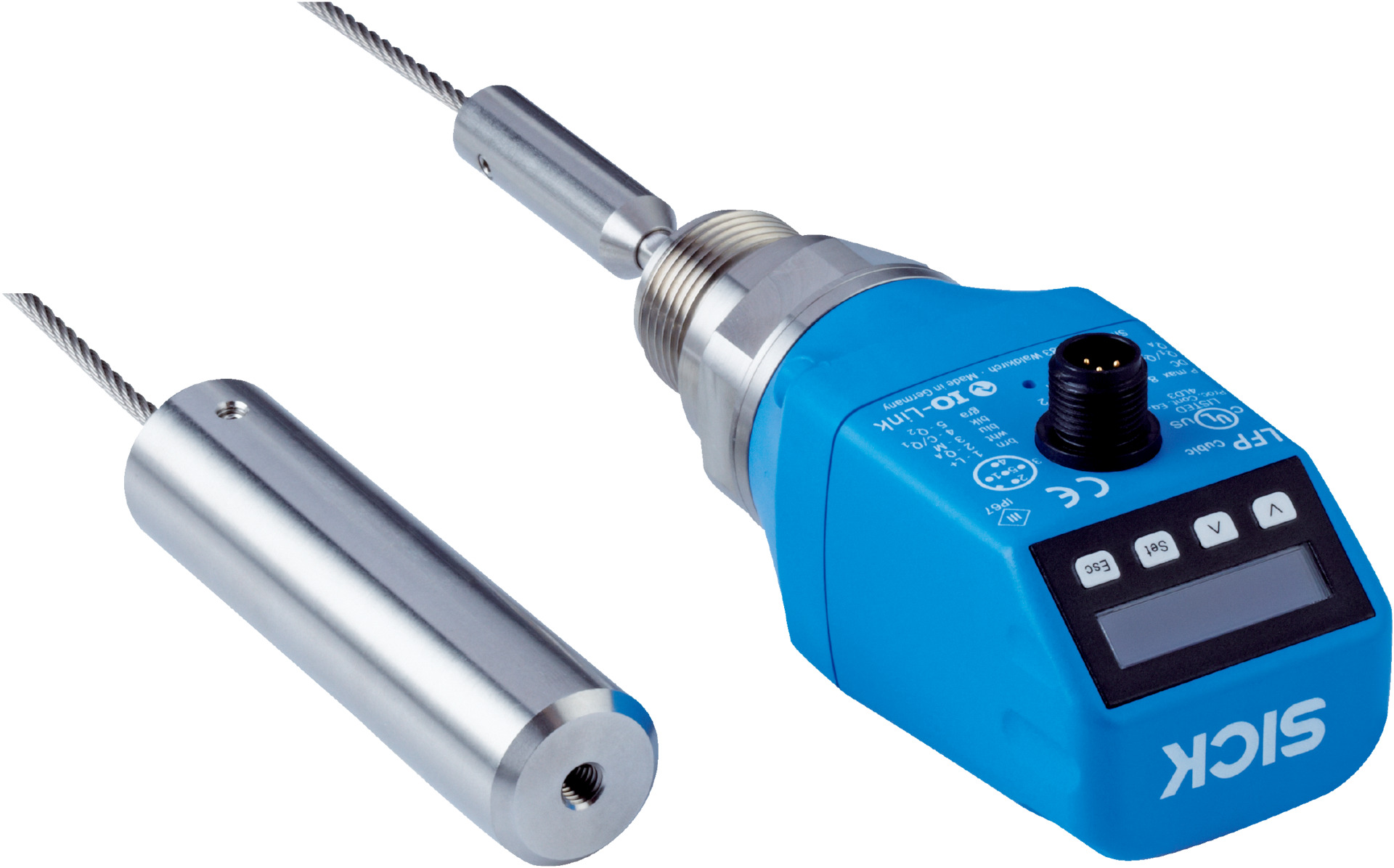

Fluid Level Sensor | IO-Link & Cable Probe | 1000 mm Length | IP67 Rated | by SICK
The Fluid Level Sensor is designed for precise fluid level measurement in industrial processes, featuring both switch and continuous measurement types. With a 1000 mm cable probe and an accuracy of ±5 mm, it’s perfect for applications in the chemical, pharmaceutical, and food industries. The sensor's IP67 rating ensures reliable performance in harsh environments, making it an essential tool for effective fluid monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Cable probe
- Probe length: 1000 mm
- Process pressure: -1 bar to 10 bar
- Process temperature: -20 °C to +100 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: <2 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe / cable probe ≥1.8 with coaxial tube
- Conductivity: No limitation
- Maximum level change: ≤500 mm/s
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤100 mA at 24 V DC without output load
- Initialization time: ≤5 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 350 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: G ¾ A
- Housing material: Plastic PBT
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 1000mm x 30mm
- Weight: 0.5 kg
Key Features
- Suitable for fluids with process pressure from -1 bar to 10 bar
- Measurement types: switch and continuous
- Standard amplifier design with cable probe
- Probe length of 1000 mm
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- Communication interface: IO-Link
- Protection class IP67 for harsh environments
- Stainless steel wetted parts (1.4404 / 316L), PTFE, and FKM materials
- Display included for easy monitoring
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and electrical wiring according to local standards.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in liquids
- Use in chemical, pharmaceutical, and food industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

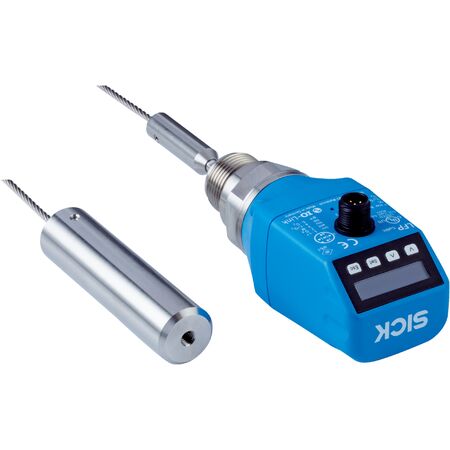

The SICK LFP1000-E4NMB fluid level sensor is available for immediate purchase, ideal for industrial fluid monitoring applications.
