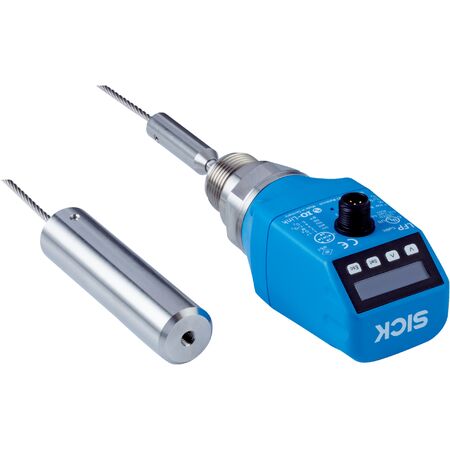

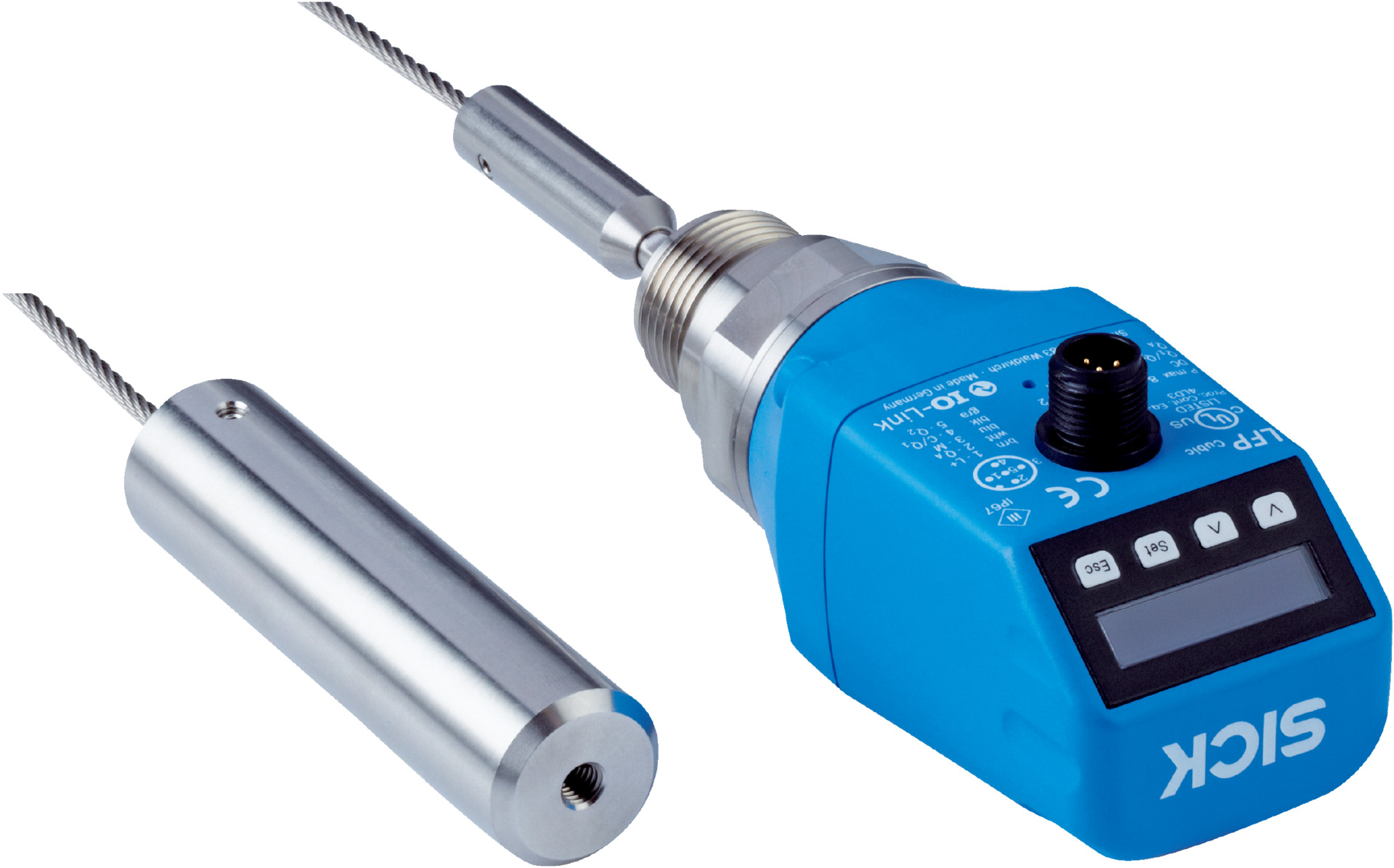

Fluid Level Sensor | IO-Link & Cable Probe | 2000 mm Length | IP67 Rated | by SICK
The Fluid Level Sensor with IO-Link and cable probe is designed for precise fluid level measurement in industrial processes. With a 2000 mm probe length and an accuracy of ±5 mm, it’s perfect for continuous and switch level detection in various liquids. Built for harsh environments, this sensor features an IP67 rating and stainless steel wetted parts, ensuring durability and reliability in chemical, pharmaceutical, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Cable probe
- Probe length: 2000 mm
- Process pressure: -1 bar to 10 bar
- Process temperature: -20 °C to +100 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: <2 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe / cable probe ≥1.8 with coaxial tube
- Conductivity: No limitation
- Maximum level change: ≤500 mm/s
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤100 mA at 24 V DC without output load
- Initialization time: ≤5 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 350 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- Wetted parts: Stainless steel 1.4404 / 316L PTFE FKM
- Process connection: G ¾ A
- Housing material: Plastic PBT
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Ambient temperature, storage: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 2000mm x 30mm
- Weight: 0.5 kg
Key Features
- Suitable for fluids with process pressure from -1 bar to 10 bar
- Measurement types: switch and continuous
- Standard amplifier design with cable probe
- Probe length of 2000 mm
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- Communication via IO-Link interface
- Protection class IP67 for harsh environments
- Stainless steel wetted parts for corrosion resistance
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and IO-Link communication protocols to ensure proper operation and safety.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in liquids
- Use in chemical, pharmaceutical, and food industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP2000-E4NMB fluid level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
