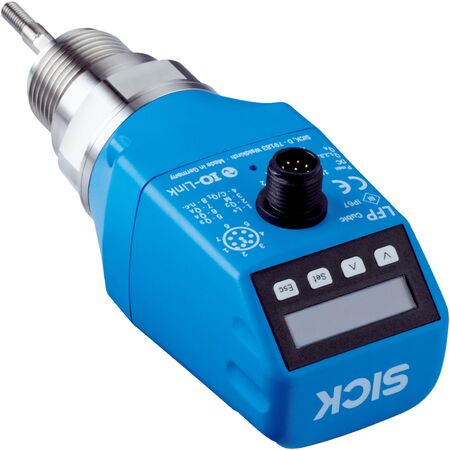

Fluid Level Sensor | IO-Link Continuous Level Switch | IP67 Rated | by SICK
The Fluid Level Sensor is designed for precise fluid level measurement and monitoring in industrial processes. With a robust IP67 rating, it operates effectively in harsh environments, offering both switch and continuous level detection. Ideal for liquids under varying pressure conditions, this sensor features a fast response time of 400 ms and multiple output signals, ensuring reliable performance for fluid management applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Without probe
- Process pressure: -1 bar to 10 bar
- Process temperature: -20 °C to +100 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: <2 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe / cable probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- Maximum level change: ≤500 mm/s
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤100 mA at 24 V DC without output load
- Initialization time: ≤5 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 350 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: ¾" NPT
- Housing material: Plastic PBT
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 100mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Measurement types: Switch and continuous level detection
- Standard amplifier design without probe
- Process pressure range: -1 bar to 10 bar
- Process temperature range: -20 °C to +100 °C
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- Communication interface: IO-Link
- Protection class IP67 for harsh environments
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Stainless steel wetted parts for corrosion resistance
- Display included for easy monitoring
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor systems and electrical safety standards.
Applications
- Fluid level measurement and monitoring in industrial processes
- Suitable for liquids with process pressure from -1 bar to 10 bar
- Use in environments requiring continuous or switch level detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient fluid management reducing waste and spillage
- Durable stainless steel construction extends product life reducing replacement waste
- Low power consumption design
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK LFP0025-B4NMB Fluid Level Sensor is available for immediate purchase, ideal for industrial fluid monitoring and control applications.
