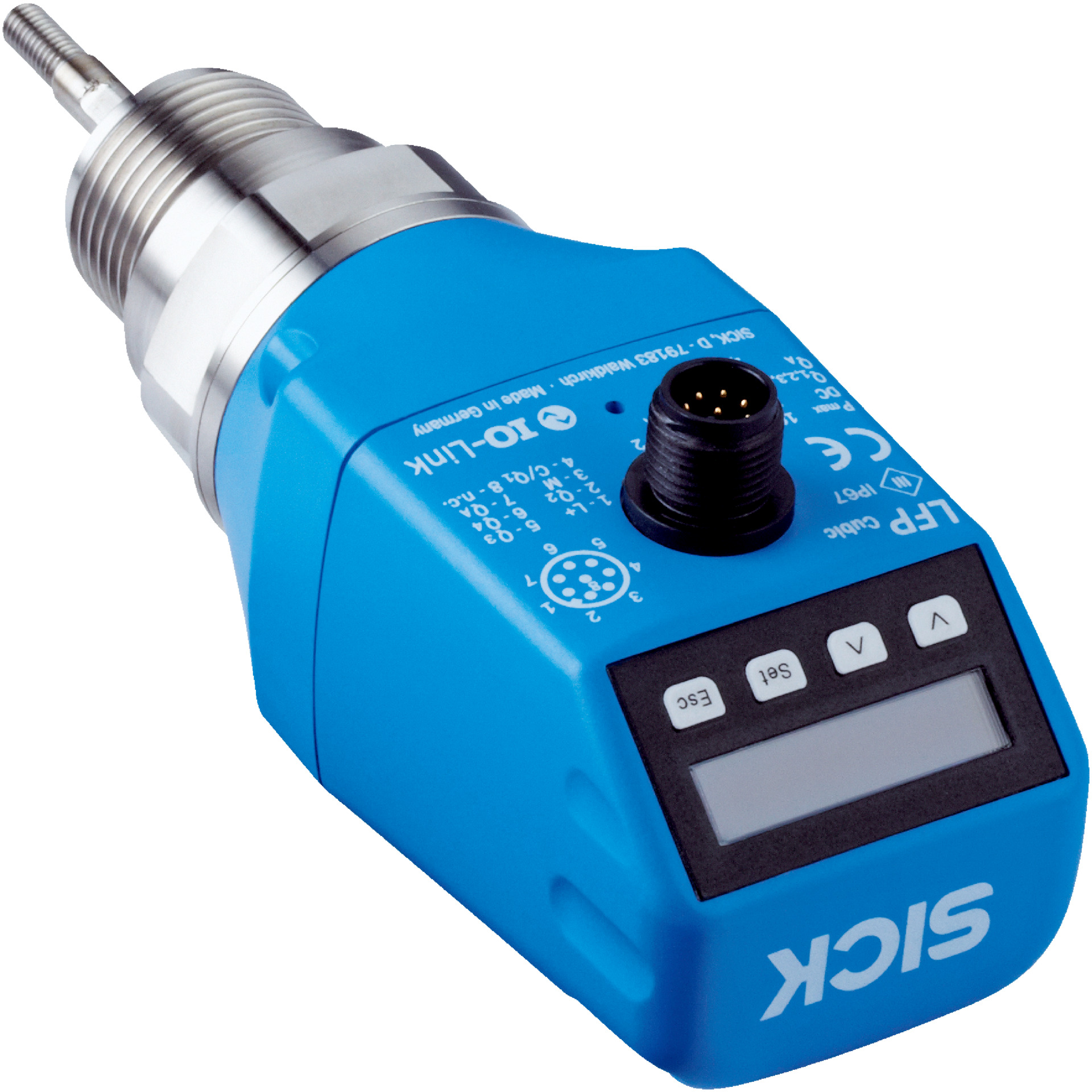

Fluid Level Sensor | IO-Link Continuous Level Switch | IP67 Rated | by SICK
The Fluid Level Sensor is designed for precise fluid level measurement and monitoring in industrial processes. With a robust IP67 enclosure, it operates within a process pressure range of -1 bar to 10 bar and a temperature range of -20 °C to +100 °C. Ideal for environments requiring continuous or switch level detection, this sensor features high accuracy with ±5 mm and a fast response time of 400 ms, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Without probe
- Process pressure: -1 bar to 10 bar
- Process temperature: -20 °C to +100 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: <2 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe / cable probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- Maximum level change: ≤500 mm/s
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤100 mA at 24 V DC without output load
- Initialization time: ≤5 s
- Protection class: III
- Connection type: M12 round connector, 8-pin
- Output signal: 1 x PNP + 3 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V
- Output load: 4 mA ... 20 mA < 350 Ohm at Uv > 12 V, 0 V ... 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA ... 4 mA
- Upper signal level: 20 mA ... 20.5 mA
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM, Titanium
- Process connection: G ¾ A
- Housing material: Plastic PBT
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Ambient temperature, storage: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measurement types: switch and continuous level detection
- Standard amplifier design without probe
- Process pressure range: -1 bar to 10 bar
- Process temperature range: -20 °C to +100 °C
- High accuracy sensor element with ±5 mm accuracy
- Reproducibility ≤ 2 mm and resolution < 2 mm
- Response time of 400 ms
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption ≤ 100 mA at 24 V DC without output load
- Output signals include PNP, NPN, 4-20 mA, and 0-10 V
- Enclosure rating IP67 for dust and water protection
- Wetted parts made of stainless steel 1.4404 / 316L, PTFE, FKM, and titanium
- Process connection: G ¾ A
- Housing material: Plastic PBT
- Display included for easy monitoring
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with IO-Link devices and fluid level sensor integration to ensure proper setup and safety compliance.
Applications
- Fluid level measurement and monitoring in industrial processes
- Suitable for liquids with process pressure from -1 bar to 10 bar
- Use in environments requiring continuous or switch level detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise fluid level monitoring to prevent spills and leaks
- Durable materials extend product life reducing waste
- Low power consumption reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP0025-A5NMCS05 fluid level sensor is available for immediate purchase, ideal for industrial fluid monitoring and control applications.
