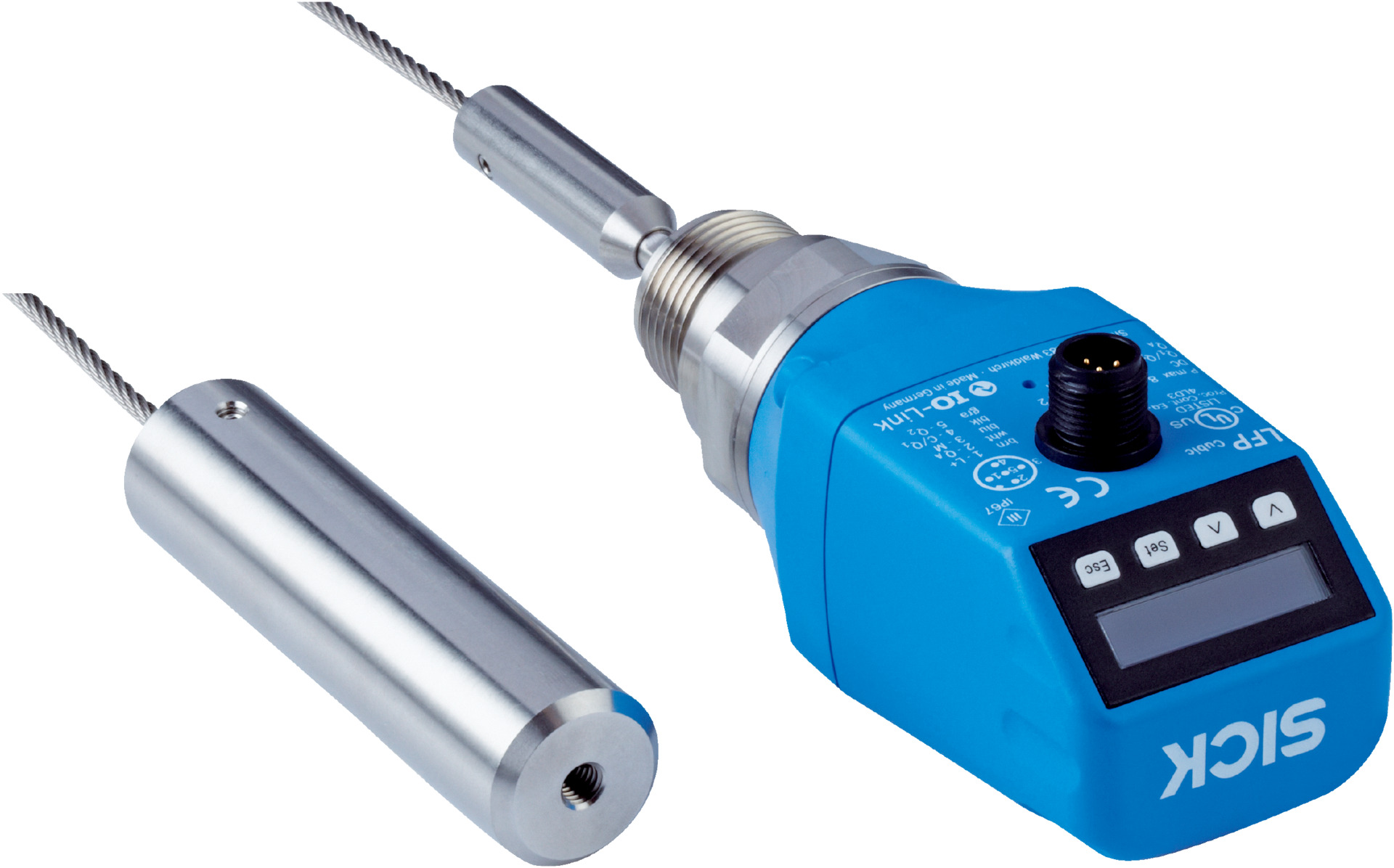

Fluid Level Sensor | IO-Link & Continuous Measurement | 2000 mm Probe | IP67 Rated | by SICK
The Fluid Level Sensor with IO-Link and continuous measurement capabilities is perfect for precise fluid level monitoring in industrial processes. Designed for use in chemical, water treatment, and food industries, it features a 2000 mm cable probe and operates under process pressures from -1 bar to 10 bar. With an accuracy of ±5 mm and a response time of 400 ms, this sensor ensures reliable performance and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Cable probe
- Probe length: 2000 mm
- Process pressure: -1 bar to 10 bar
- Process temperature: -20 °C to +100 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: <2 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe / cable probe ≥1.8 with coaxial tube
- Conductivity: No limitation
- Maximum level change: ≤500 mm/s
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤100 mA at 24 V DC without output load
- Initialization time: ≤5 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 350 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: ¾" NPT
- Housing material: Plastic PBT
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Ambient temperature, storage: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 2000mm x 30mm
- Weight: 0.5 kg
Key Features
- Suitable for fluids with process pressure from -1 bar to 10 bar
- Measurement types: switch and continuous
- Standard amplifier design with cable probe
- Probe length of 2000 mm
- High accuracy with ±5 mm sensor element accuracy
- Reproducibility ≤ 2 mm and resolution < 2 mm
- Response time of 400 ms
- Communication interface: IO-Link
- Supply voltage range 12 V DC to 30 V DC
- Output signals include PNP, PNP/NPN, 4 mA to 20 mA, and 0 V to 10 V
- Enclosure rated IP67 for protection against dust and water
- Wetted parts made of stainless steel 1.4404 / 316L, PTFE, and FKM
- Process connection ¾" NPT
- Operating ambient temperature from -20 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and electrical connections, ensuring compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Continuous and switch level detection in liquids
- Use in chemical, water treatment, and food industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP2000-F4NMB fluid level sensor is available for immediate purchase, ideal for industrial fluid monitoring applications requiring precise and reliable level measurement.
