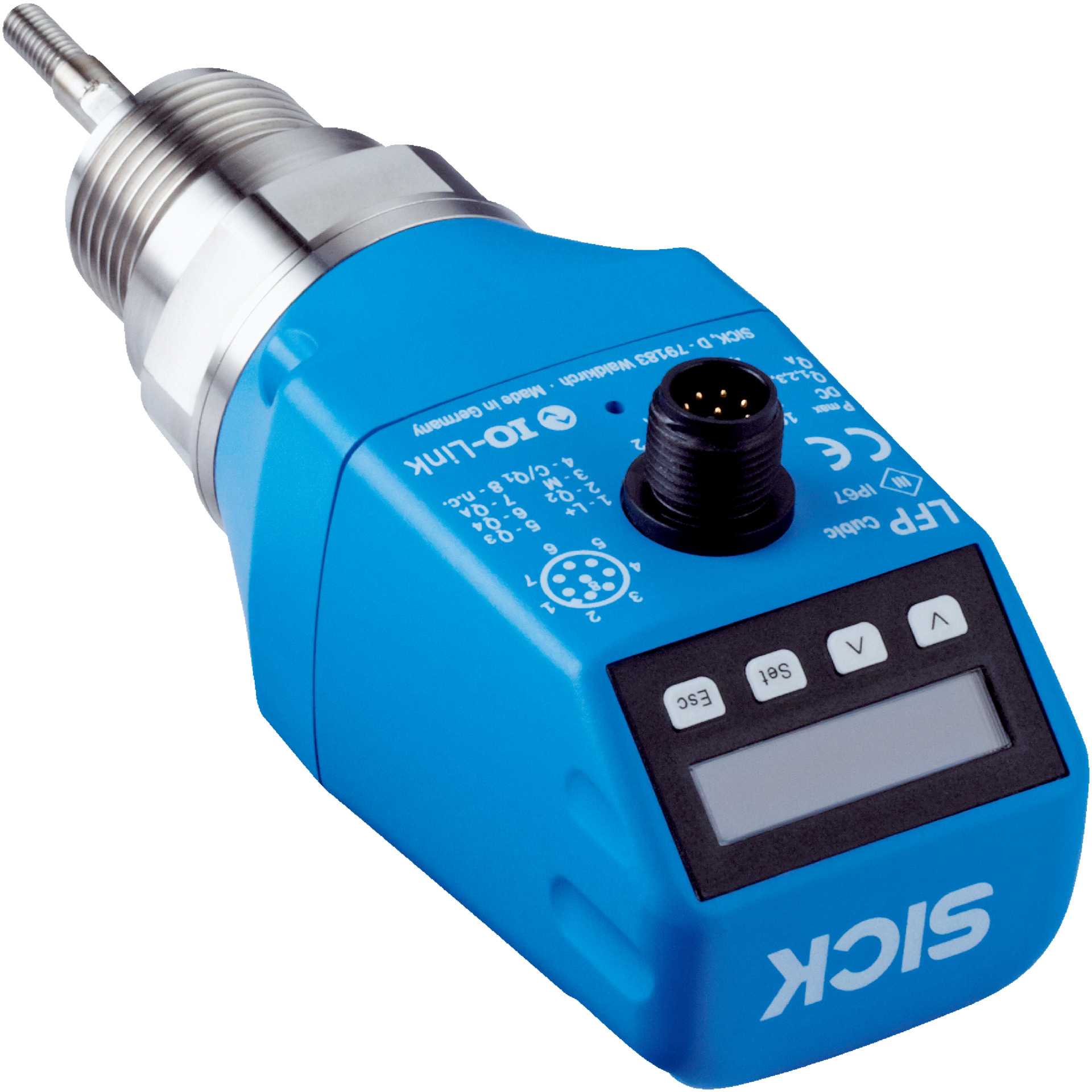

Fluid Level Sensor | IO-Link Communication | High Accuracy & IP67 Rated | by SICK
The Fluid Level Sensor with IO-Link communication offers both switch and continuous level measurement, making it ideal for industrial fluid monitoring. Designed for harsh environments, it features a robust IP67 rating and high accuracy of ±5 mm, ensuring reliable performance in chemical, pharmaceutical, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measurement types: Switch and continuous level measurement
- Standard amplifier design without probe
- Process pressure range: –1 bar to 10 bar
- Process temperature range: –20 °C to +100 °C
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Output signals: PNP, PNP/NPN, 4 mA to 20 mA, 0 V to 10 V
- Protection class IP67 for harsh environments
- Wetted parts made of stainless steel 1.4404 / 316L, PTFE, FKM, and titanium
- Robust plastic PBT housing
- Display included for easy monitoring
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for IO-Link communication setup.
Applications
- Fluid level measurement and monitoring in industrial processes
- Continuous and switch measurement in liquids
- Suitable for use in chemical, pharmaceutical, and food industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and robust design reduce waste and replacement frequency
- Energy-efficient operation with low power consumption (≤ 100 mA at 24 V DC)
- Supports precise fluid level control to minimize spills and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP0025-A4NMBS01 Fluid Level Sensor is available for immediate purchase, ideal for industrial fluid monitoring and control applications.
