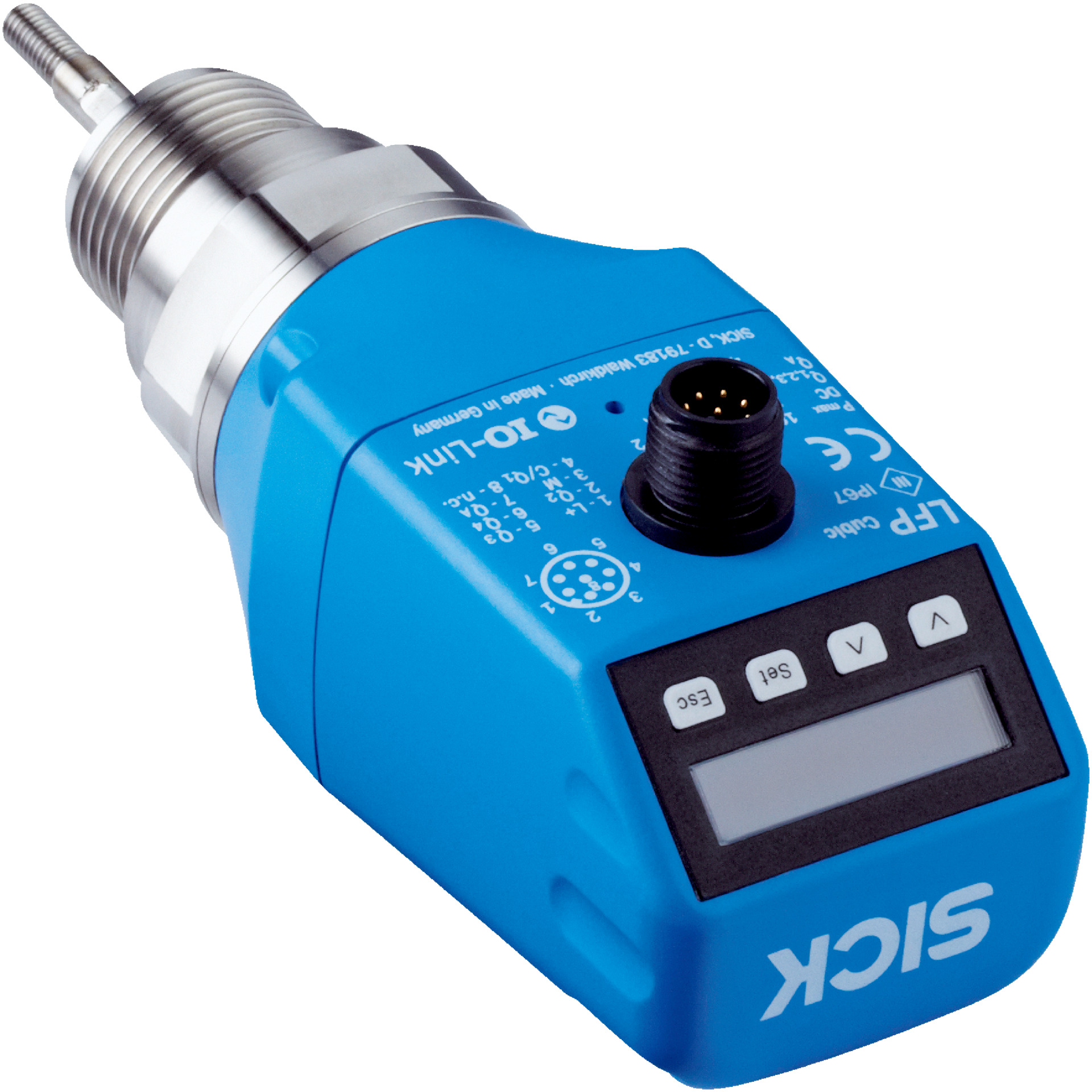

Fluid Level Sensor | IO-Link Communication | IP67 Rated | High Accuracy | by SICK
The Fluid Level Sensor with IO-Link communication is designed for precise switch and continuous level measurement in industrial processes. With a robust IP67 rating and high accuracy of ±5 mm, it’s perfect for monitoring liquids under varying pressure conditions from -1 bar to 10 bar. Built for durability with stainless steel and plastic materials, this sensor ensures long service life and low maintenance, making it ideal for energy-efficient applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 100mm x 50mm x 30mm
- Weight: 0.5 kg
Key Features
- Measurement types: Switch and continuous level measurement
- Standard amplifier design without probe
- Process pressure range: -1 bar to 10 bar
- Process temperature range: -20 °C to +100 °C
- High accuracy with ±5 mm sensor element accuracy
- Reproducibility ≤ 2 mm and resolution < 2 mm
- Response time of 400 ms
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Output signals: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating IP67 for robust protection
- Wetted parts made of stainless steel 1.4404 / 316L, PTFE, and FKM
- Process connection: G ¾ A
- Housing material: Plastic PBT
- Display included for easy monitoring
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration, especially for IO-Link communication setup.
Applications
- Fluid level measurement and monitoring in industrial processes
- Suitable for use in liquids with process pressure from -1 bar to 10 bar
- Ideal for applications requiring continuous and switch level measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and plastic materials ensure long service life reducing waste
- Low power consumption (≤ 100 mA at 24 V DC) supports energy efficiency
- IP67 rating protects against environmental ingress, reducing maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LFP0025-A4NMB Fluid Level Sensor is available for immediate purchase, ideal for industrial fluid monitoring and control applications.
