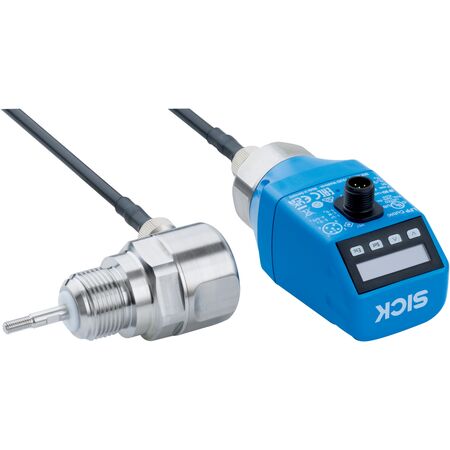

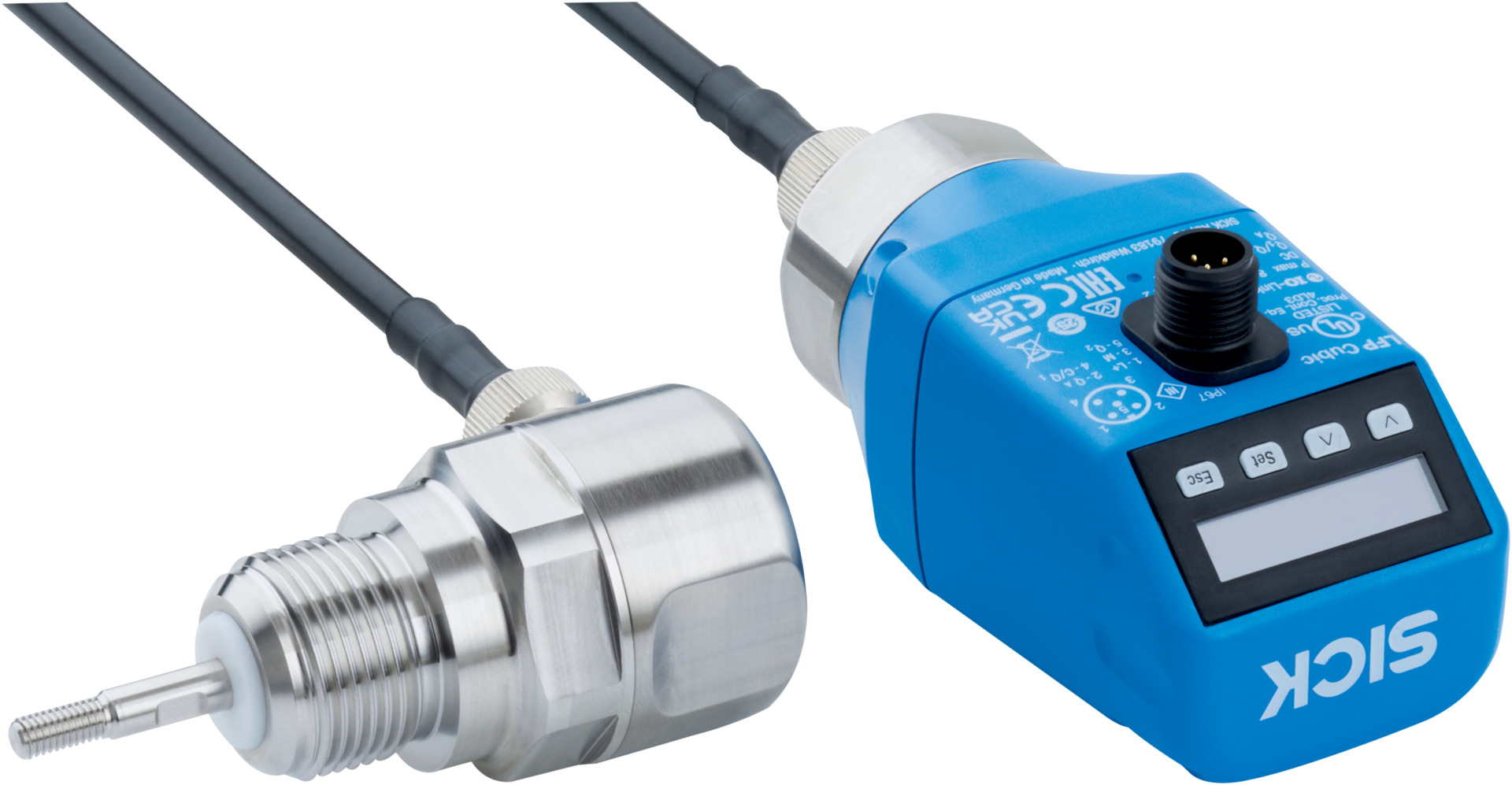

Fluid Level Sensor | Remote Amplifier Design | High Accuracy ±5 mm | IP67 Rated | by SICK
The Fluid Level Sensor with remote amplifier design offers both switch and continuous level detection, making it ideal for industrial fluid monitoring. With high accuracy of ±5 mm and a fast response time of 400 ms, this sensor is built for environments with process pressures from -1 bar to 10 bar and temperatures from -20 °C to +100 °C. Its IP67 rated enclosure ensures protection against dust and water, making it a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch and continuous
- Process pressure range: -1 bar to 10 bar
- Process temperature range: -20 °C to +100 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: <2 mm
- Response time: 400 ms
- Dielectric constant: ≥5 for rod probe / cable probe, ≥1.8 with coaxial tube
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤100 mA at 24 V DC without output load
- Output signals: 1 x PNP, 1 x PNP/NPN, 4-20 mA, 0-10 V
- Enclosure rating: IP67
- Connection: Round connector M12 x 1, 5-pin
- Cable length: 2 m
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Housing material: Plastic PBT
- Max probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 150mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Measurement types: switch and continuous level detection
- Remote amplifier design without probe
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- IO-Link communication interface for easy integration
- IP67 rated enclosure for protection against dust and water
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Stainless steel wetted parts (1.4404 / 316L), PTFE, and FKM materials for chemical resistance
- Wide supply voltage range from 12 V DC to 30 V DC
- Display included for easy status monitoring
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Fluid level measurement and monitoring in industrial processes
- Continuous and switch level detection in liquids
- Use in environments with process pressures from -1 bar to 10 bar
- Suitable for temperatures from -20 °C to +100 °C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable materials extend product life and reduce replacement frequency
- Low power consumption design minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP0025-A4CMB fluid level sensor is available for immediate purchase, ideal for industrial fluid monitoring and control applications.
