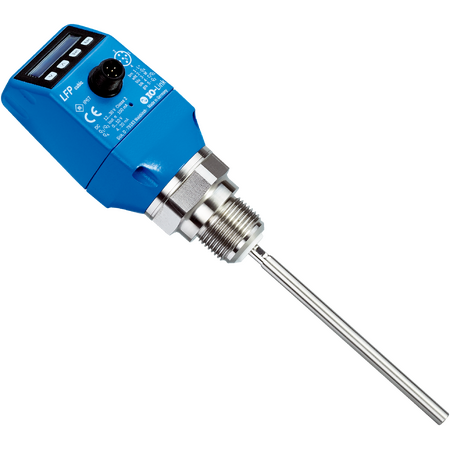

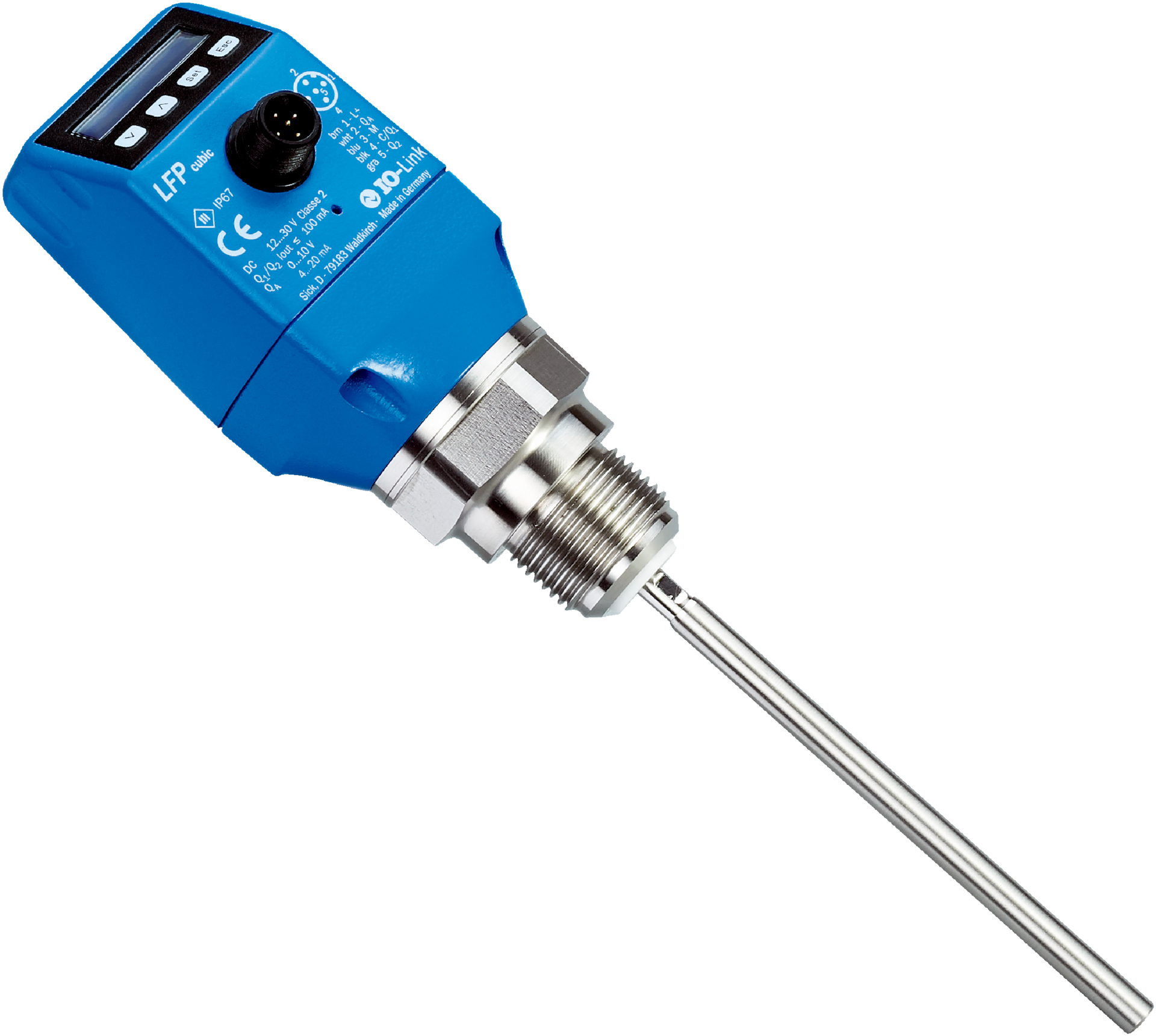

Fluid Level Sensor | Rod Probe Type | 1000 mm Length | IP67 Rated | by SICK
The Fluid Level Sensor is designed for precise fluid level detection with a 1000 mm rod probe. Ideal for industrial applications, it features both switch and continuous measurement modes, ensuring high accuracy with ±5 mm precision. Built with robust stainless steel and IP67 protection, this sensor operates effectively in harsh environments, making it perfect for monitoring fluid levels in tanks and containers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Continuous Level Switch, Industrial Fluid Level Transmitter
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe
- Probe length: 1000 mm
- Process pressure: -1 bar to 10 bar
- Process temperature: -20 °C to +100 °C
- Accuracy: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: <2 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe
- Conductivity: No limitation
- Maximum level change: ≤500 mm/s
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤100 mA at 24 V DC without output load
- Initialization time: ≤5 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 350 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- EMC: EN 61326-2-3, 2014/30/EU
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: G ¾ A
- Housing material: Plastic PBT
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 1000mm x 30mm
- Weight: 1.2 kg
Key Features
- Rod probe type with 1000 mm length for precise fluid level detection
- Measurement modes: switch and continuous
- Standard amplifier design with IO-Link communication interface
- High accuracy sensor element with ±5 mm precision and ≤2 mm reproducibility
- Robust stainless steel 316L wetted parts with PTFE and FKM seals
- Wide process temperature range from -20 °C to +100 °C
- Protection class IP67 for reliable operation in harsh environments
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Fast response time of 400 ms and low power consumption ≤100 mA
- Certified with EU, UK, ACMA, Moroccan, China RoHS, cULus, and IO-Link
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and electrical connections to ensure safety and compliance.
Applications
- Fluid level measurement in industrial tanks and containers
- Continuous and switch level monitoring in process industries
- Suitable for liquids with varying dielectric constants
- Use in environments with process pressures from -1 bar to 10 bar
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable materials and long MTTF of 194.3 years reduce replacement frequency
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP1000-A4NMB Level Fluid Sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications requiring high accuracy and robust performance.
