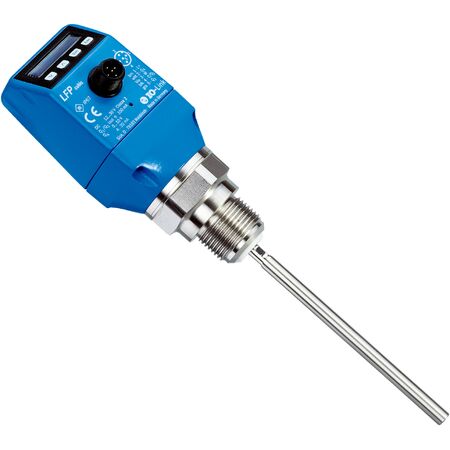

Fluid Level Sensor | Rod Probe Design | IP67 Rated | High Accuracy | by SICK
The Fluid Level Sensor with a rod probe design is perfect for industrial fluid level measurement and monitoring. With a length of 400 mm and an IP67 rated enclosure, it ensures reliable performance in harsh environments. This sensor features high accuracy with ±5 mm precision and supports multiple output signals, making it ideal for applications in chemical, water treatment, and food industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fluid Level Sensor | Rod Probe Design | IP67 Rated | High Accuracy | by SICK
Brand: SICK
SKU: 1057075
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Transmitter, Continuous Level Sensor, Switch Level Sensor
Technical Specifications
- Dimensions (H x L x W): 30mm x 400mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe design with 400 mm length
- Standard amplifier for switch and continuous measurement
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- IP67 rated enclosure for protection against dust and water
- Communication via IO-Link interface
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Wide process pressure range from -1 bar to 10 bar
- Wide process temperature range from -20 °C to +100 °C
- Stainless steel wetted parts for corrosion resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Fluid level measurement and monitoring in industrial processes
- Continuous and switch level detection in tanks and vessels
- Suitable for use in chemical, water treatment, and food industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and PTFE materials extend product life reducing waste
- Low power consumption (≤100 mA at 24 V DC) supports energy efficiency
- Accurate level measurement helps prevent overflows and spills, protecting the environment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LFP0400-A4NMB level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
