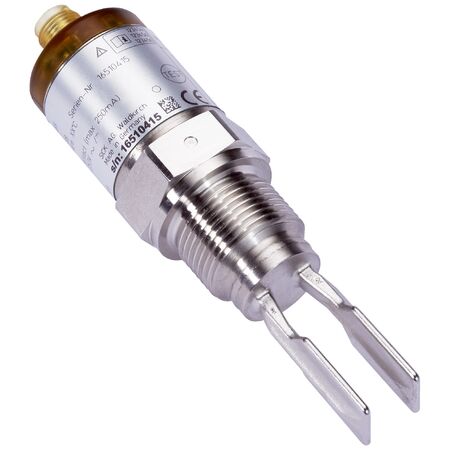

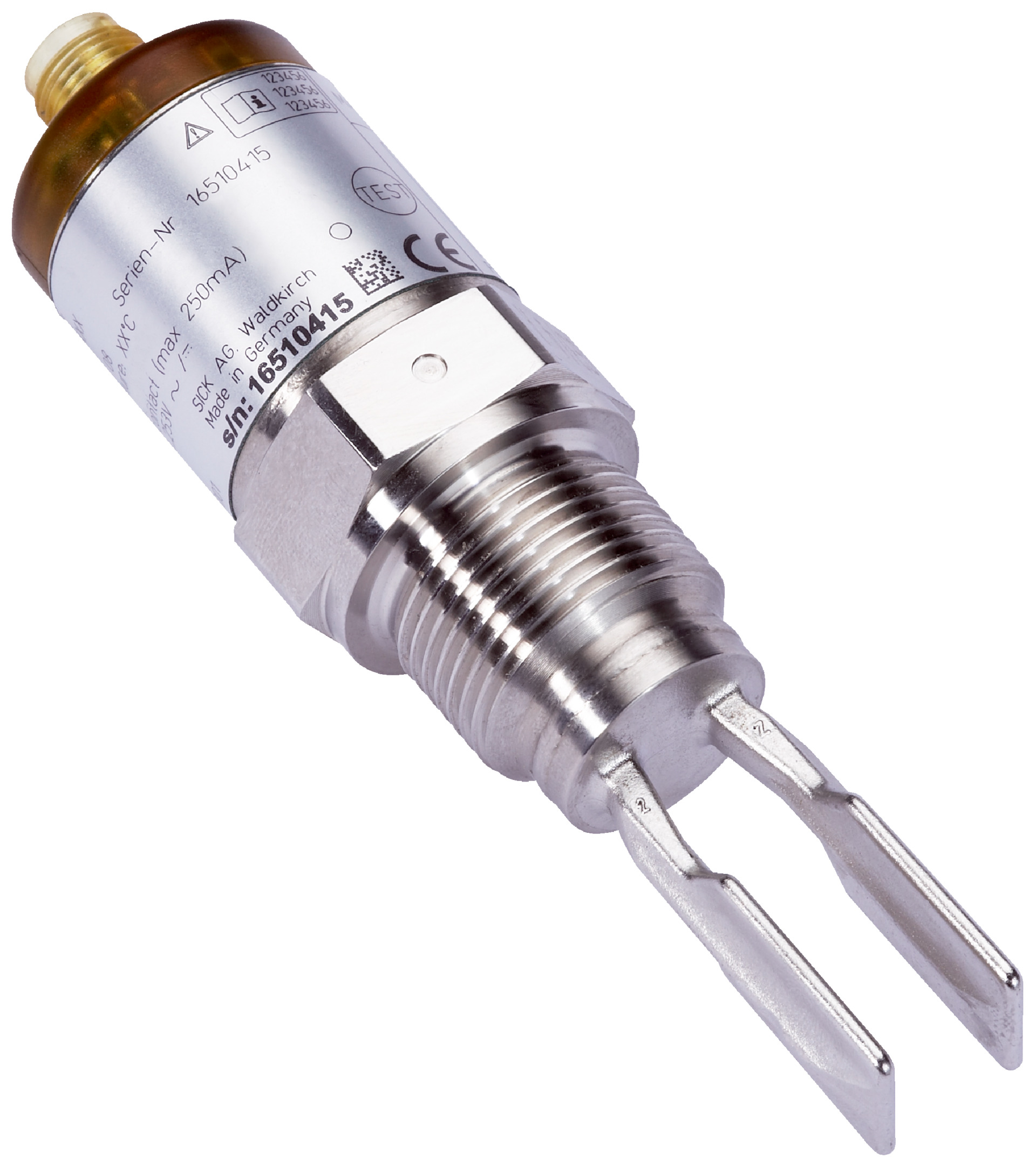

Fluid Level Switch LFV200-XXSGBIPM | Tuning Fork Probe | IP67 Rated | ±2 mm Accuracy | by SICK
The Fluid Level Switch LFV200-XXSGBIPM features a reliable tuning fork probe for accurate fluid level detection in industrial applications. With a process pressure range of -1 bar to 64 bar and an operating temperature from -40 °C to +100 °C, this sensor is perfect for monitoring liquids of varying viscosities. Its stainless steel construction ensures durability, while the IP67 rating provides protection against dust and water, making it ideal for food, chemical, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Probe length: 67 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: ≤4.2 mA
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Enclosure rating: IP67
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G ¾ A PN 64
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 67mm x 100mm x 30mm
- Weight: 0.3 kg
Key Features
- Tuning fork probe type for reliable fluid level detection
- Process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- IO-Link communication interface for easy integration
- Stainless steel 1.4404 / 316L wetted parts for corrosion resistance
- IP67 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensors and electrical connections to ensure proper setup and safety compliance.
Applications
- Fluid level detection in industrial process tanks
- Measurement and monitoring of liquids with varying viscosities
- Suitable for food, chemical, and pharmaceutical industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption of ≤4.2 mA supports energy-efficient operation
- Accurate fluid detection helps prevent spills and environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK LFV200-XXSGBIPM tuning fork fluid level switch is available for immediate purchase, ideal for industrial fluid level monitoring applications.
