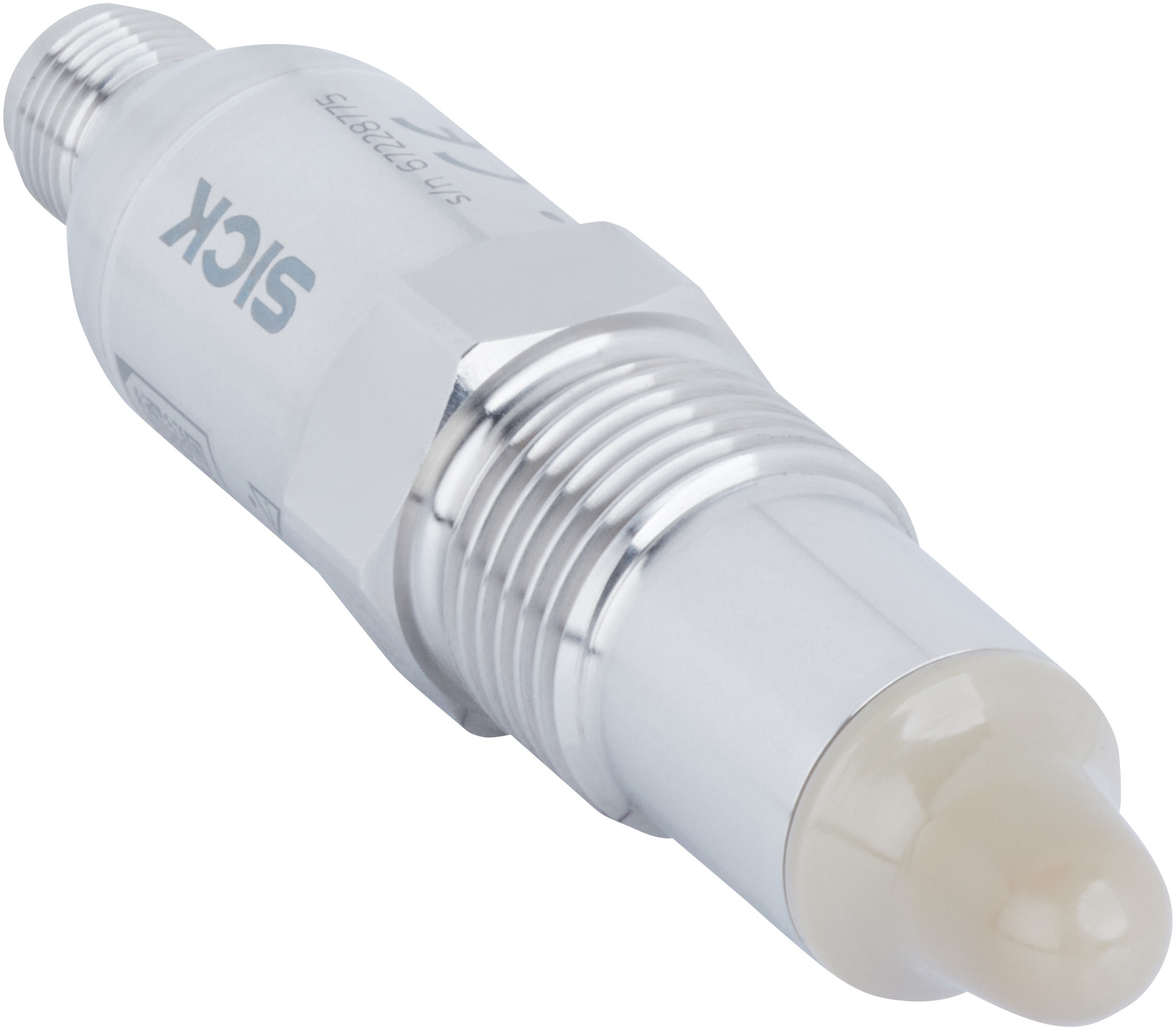

Fluid Level Switch Sensor | IO-Link Communication | Hygienic Design | IP66/IP67/IP69 Rated | by SICK
The Fluid Level Switch Sensor is designed for precise fluid level detection in industrial processes, featuring a robust stainless steel housing and an IO-Link communication interface for smart connectivity. With a process pressure range of –1 bar to 64 bar and a temperature range of –20 °C to +100 °C, it's perfect for hygienic applications in the food, beverage, and pharmaceutical industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Process pressure range: –1 bar to 64 bar
- Process temperature range: –20 °C to +100 °C
- Reproducibility: ±1 mm
- Response time: 500 ms
- Dielectricity constant: ≥ 2
- MTBF: 7.3 million hours
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 35 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 0.1 W
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signal: 2 x PNP/NPN, IO-Link
- Contamination rating: 4
- Inductive load: ≤ 0.5 H
- Capacitive load: 100 nF
- Enclosure rating: IP66, IP67, IP69
- Overvoltage category: I
- Load current: ≤ 250 mA (short-circuit proof)
- Voltage drop: < 3 V
- Switching voltage: < 34 V DC
- Reverse current: < 10 µA
- Wetted parts: PEEK
- Process connection: G ½ A, ISO0228-1, hygienic thread adapter / 316L (RA < 0.76 µm)
- Housing material: Stainless steel 1.4404 / 316L
- Sealing material: NBR (male connector)
- Ambient operating temperature: –40 °C to +70 °C
- Ambient storage temperature: –40 °C to +80 °C
- Dimensions (H x L x W): 100mm x 30mm x 30mm
- Weight: 0.3 kg
Key Features
- Suitable for fluids with process pressure from –1 bar to 64 bar
- Process temperature range from –20 °C to +100 °C
- High reproducibility of ±1 mm and fast response time of 500 ms
- IO-Link communication interface for smart connectivity
- Robust stainless steel 316L housing with hygienic thread adapter
- Protection rating IP66, IP67, and IP69 for harsh environments
- Output signals: 2 x PNP/NPN with permanent short-circuit proof
- Low power consumption ≤0.1 W and supply voltage 12 V DC to 35 V DC
- Certified for food contact and EHEDG approved for hygienic design
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid sensors and IO-Link communication to ensure proper setup and compliance with safety standards.
Applications
- Fluid level detection and monitoring in industrial processes
- Hygienic applications requiring stainless steel and FDA-compliant materials
- Use in food and beverage, pharmaceutical, and chemical industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel housing extends product life and reduces waste
- Compliant with food contact material regulations ensuring safe environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

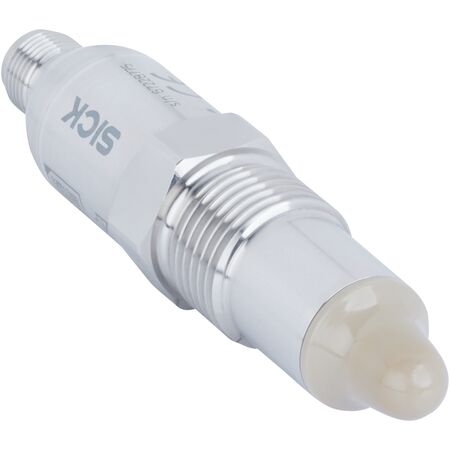

The SICK LFC-XXSGTE Fluid Switch Sensor is available for immediate purchase, ideal for hygienic and industrial fluid level monitoring applications.
