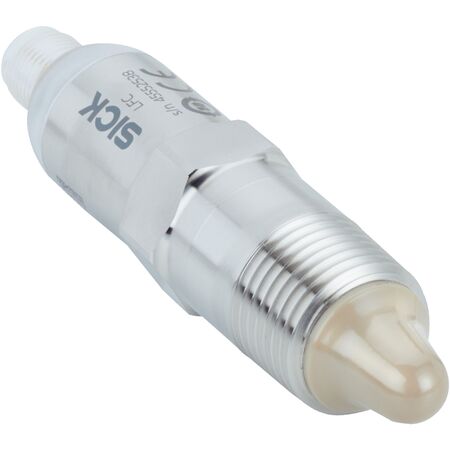

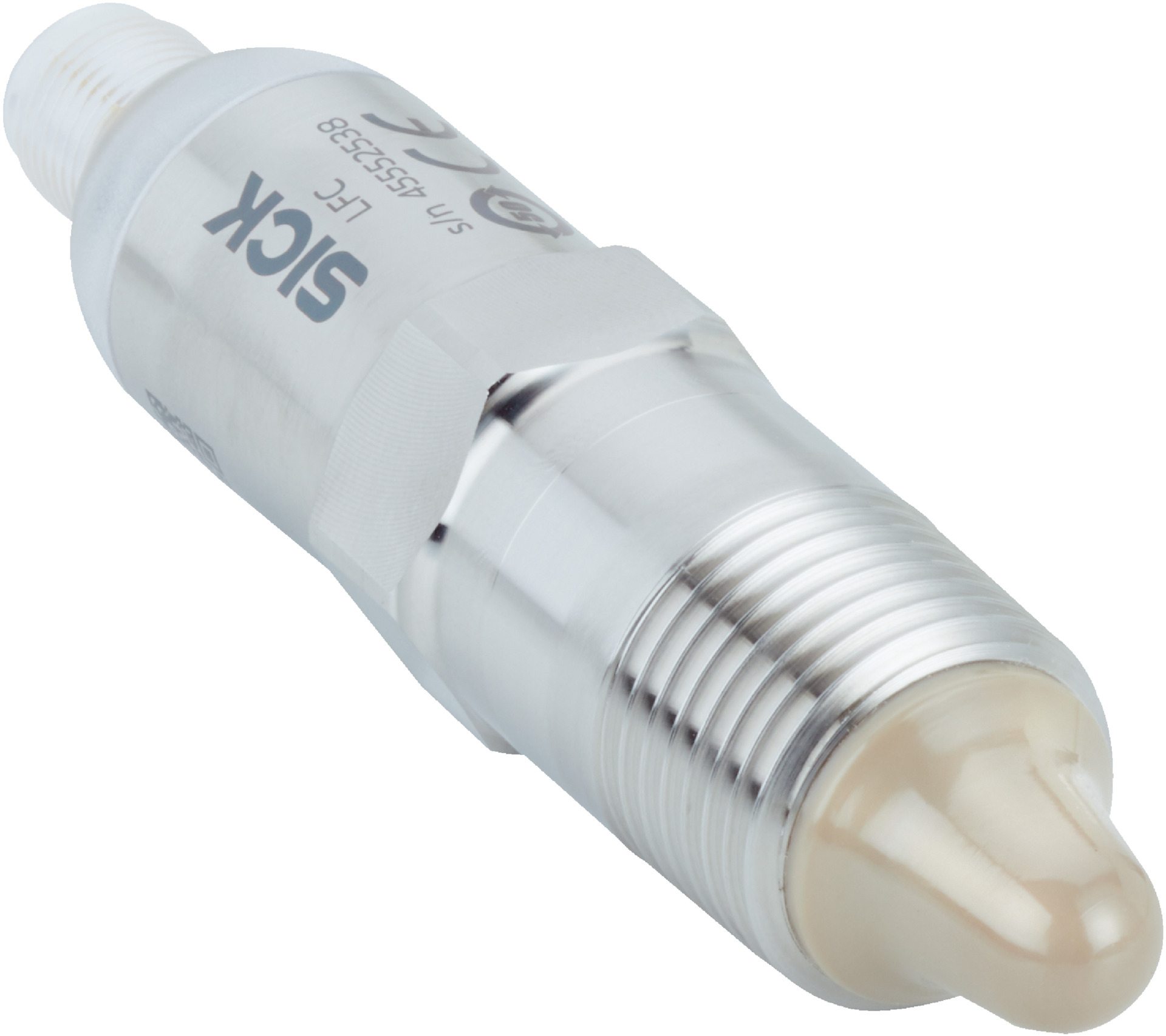

Fluid Level Switch Sensor | IO-Link Communication | IP66, IP67, IP69 Ratings | by SICK
The Fluid Level Switch Sensor is designed for precise fluid detection and monitoring in industrial applications. With a robust stainless steel housing and an IP66/IP67/IP69 rating, it ensures reliable performance in harsh environments. Ideal for food, beverage, and chemical industries, this sensor features a fast response time of 500 ms and a wide process pressure range from -1 bar to 25 bar, making it perfect for various liquid control processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement type: Switch
- Process pressure: -1 bar to 25 bar
- Process temperature: -20 °C to +100 °C
- Reproducibility: ± 1 mm
- Response time: 500 ms
- Dielectricity constant: ≥ 2
- MTBF: 7.3 million hours
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 35 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 0.1 W
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signal: 2 x PNP/NPN, IO-Link
- Contamination rating: 4
- Inductive load: ≤ 0.5 H
- Capacitive load: 100 nF
- Enclosure rating: IP66, IP67, IP69
- Overvoltage category: I
- Load current: ≤ 250 mA
- Voltage drop: < 3 V
- Switching voltage: < 34 V DC
- Reverse current: < 10 µA
- Wetted parts: PEEK
- Process connection: ½" NPT, ASME B1.20.1 / 316L
- Housing material: Stainless steel 1.4404 / 316L, Plastic (Valox®)
- Sealing material: NBR (male connector)
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 100mm x 30mm x 30mm
- Weight: 0.2 kg
Key Features
- Switch measurement for fluid detection
- Process pressure range from -1 bar to 25 bar
- Process temperature range from -20 °C to +100 °C
- High reproducibility of ± 1 mm
- Fast response time of 500 ms
- IO-Link communication interface for smart connectivity
- Low power consumption ≤ 0.1 W
- Protection class III with IP66, IP67, and IP69 enclosure ratings
- Output signals: 2 x PNP/NPN and IO-Link
- Permanent short-circuit proof output with load current ≤ 250 mA
- Robust stainless steel 316L housing with PEEK wetted parts
- Sealing with NBR for reliable connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid sensor integration and IO-Link communication protocols to ensure safety and optimal performance.
Applications
- Fluid level detection and monitoring in industrial processes
- Suitable for use in food and beverage, pharmaceutical, and chemical industries
- Process control involving liquids with pressures from -1 bar to 25 bar
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials extend product lifespan, reducing waste
- Compliant with food contact material standards ensuring safe environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFC-XXSNTM Fluid Switch Sensor is available for immediate purchase, ideal for industrial fluid monitoring and control applications.
