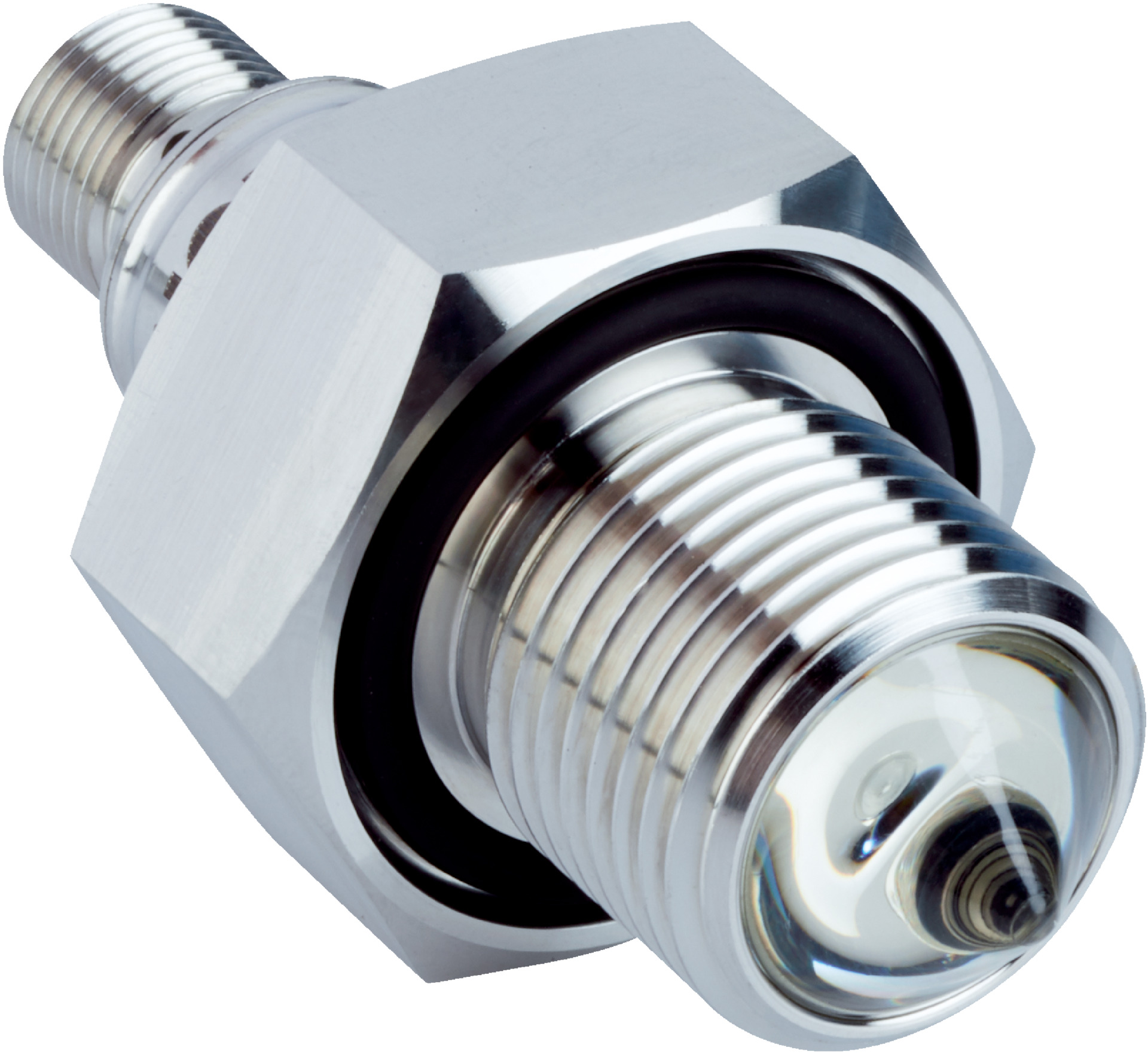

Fluid Level Switch Sensor | Visible Red LED Light | PNP Output | IP67 & IP69 Rated | by SICK
The Fluid Level Switch Sensor is designed for precise fluid level detection, featuring a visible red LED light source at a 650 nm wavelength. With a robust process pressure range of -0.5 bar to 20 bar and an ambient temperature tolerance of -10 °C to +55 °C, this sensor is perfect for industrial applications requiring reliable monitoring. Its stainless steel construction ensures durability, while the fast response time of 10 ms enhances operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Light source: LED
- Type of light: Visible red light
- Wavelength: 650 nm
- Process pressure: -0.5 bar to 20 bar
- Process temperature: -10 °C to +55 °C
- Response time: 10 ms
- Supply voltage: 10 V DC to 30 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 30 mA at 24 V DC without output load
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signal: 1 x PNP normally open
- Output current: ≤ 100 mA with overcurrent and short-circuit protection
- Switching frequency: 250 Hz
- Enclosure rating: IP67, IP69
- Wetted parts: Stainless steel 1.4404 / 316L, Polysulfon EPDM
- Process connection: G ½
- Housing material: Stainless steel 1.4404 / 316L
- Ambient operating temperature: -10 °C to +55 °C
- Ambient storage temperature: -25 °C to +70 °C
- MTTFD (mean time to dangerous failure): 2,304 years
- MTBF: 1,178 years
- Dimensions (H x L x W): 60mm x 80mm x 18mm
- Weight: 0.3 kg
Key Features
- Switch measurement type with visible red LED light source at 650 nm wavelength
- Process pressure range from -0.5 bar to 20 bar
- Process temperature range from -10 °C to +55 °C
- Response time of 10 ms for fast switching
- Output signal: 1 x PNP normally open (NO) switch
- Power consumption ≤ 30 mA at 24 V DC without output load
- Enclosure rated IP67 and IP69 for high protection
- Housing and wetted parts made of stainless steel 1.4404 / 316L and polysulfon EPDM
- Connection via M12 round connector, 4-pin
- Output current ≤ 100 mA with overcurrent and short-circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid sensor integration and electrical safety standards.
Applications
- Fluid level detection and monitoring in industrial processes
- Use in environments requiring reliable switch measurement of fluids
- Suitable for applications with process pressures from -0.5 bar to 20 bar
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption design minimizes energy use
- Certified to China-RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

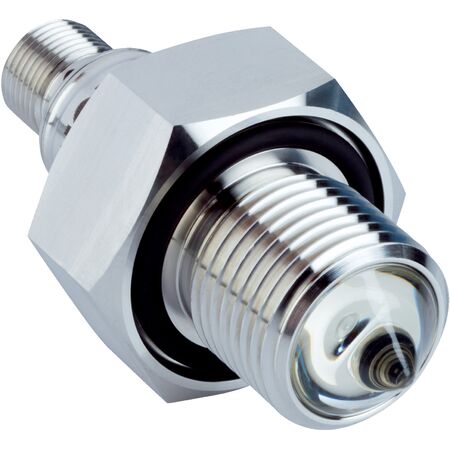

The SICK GRF18S-F234EV fluid switch sensor is available for immediate purchase, ideal for industrial fluid monitoring and control applications.
