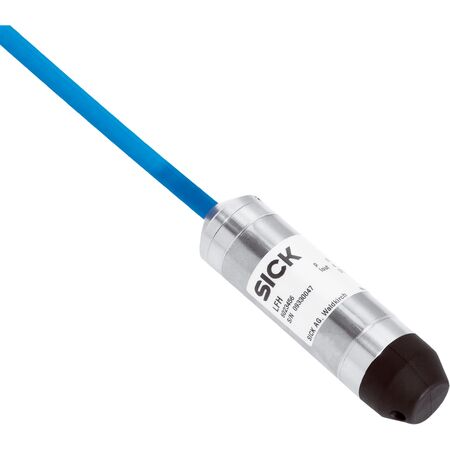

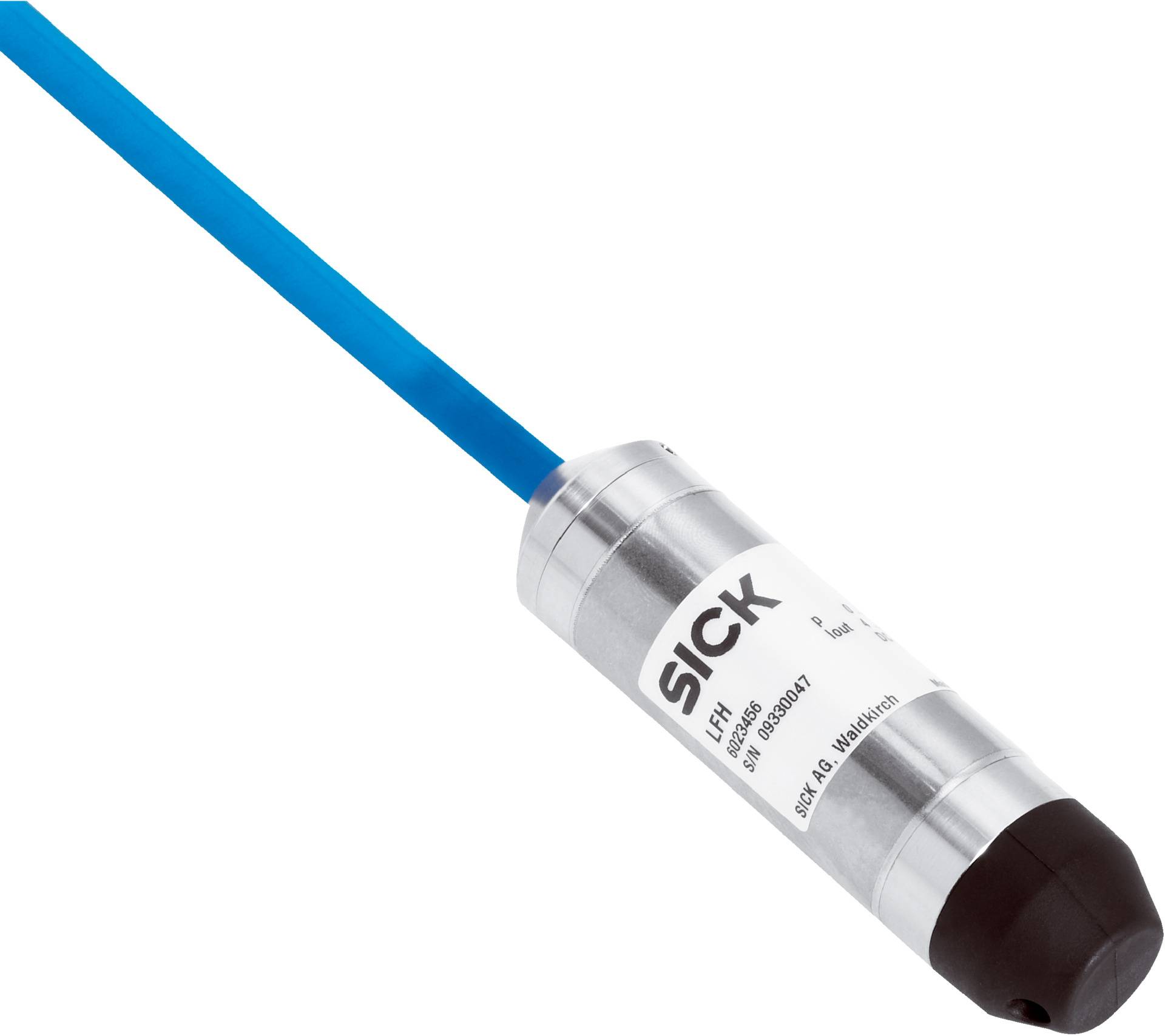

Fluid Pressure Sensor LFH-EBX40G1VS05ZZ0 | 0 to 0.4 Bar | IP68 Rated | Stainless Steel | by SICK
The LFH-EBX40G1VS05ZZ0 fluid pressure sensor offers continuous measurement from 0 to 0.4 bar, making it ideal for industrial fluid monitoring applications. With high accuracy and an IP68 rated enclosure, this sensor is built for reliability in harsh environments, featuring stainless steel construction and a long-term stability of ≤ ±0.2% span drift per year.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 40mm x 100mm x 40mm
- Weight: 0.2 kg
Key Features
- Continuous fluid pressure measurement from 0 to 0.4 bar
- High accuracy with non-linearity ≤ ±0.2% of span
- Enhanced variant with 0 V ... 10 V, 3-wire output signal
- Stainless steel 1.4404 / 316L wetted parts and housing
- IP68 rated enclosure for protection against dust and water
- PUR cable connection with 5 m cable length
- Protection class III with short-circuit, reverse polarity, and surge protection
- Long-term stability with ≤ ±0.2% span drift per year
- Wide operating temperature range from –10 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Fluid pressure measurement in industrial processes
- Continuous monitoring of low-pressure fluid systems
- Use in environments requiring IP68 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with 14 V DC to 30 V DC supply voltage
- High reliability with MTTF of 452 years minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LFH-EBX40G1VS05ZZ0 fluid pressure sensor is available for immediate purchase, ideal for industrial fluid monitoring applications.
