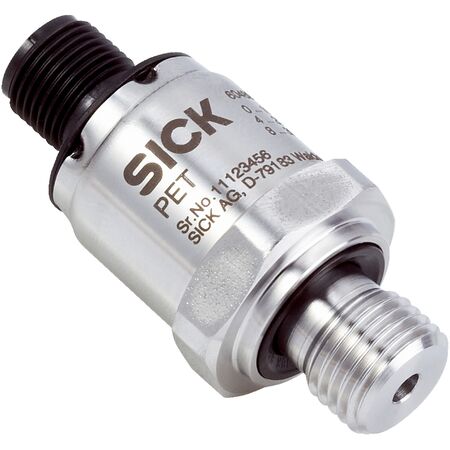

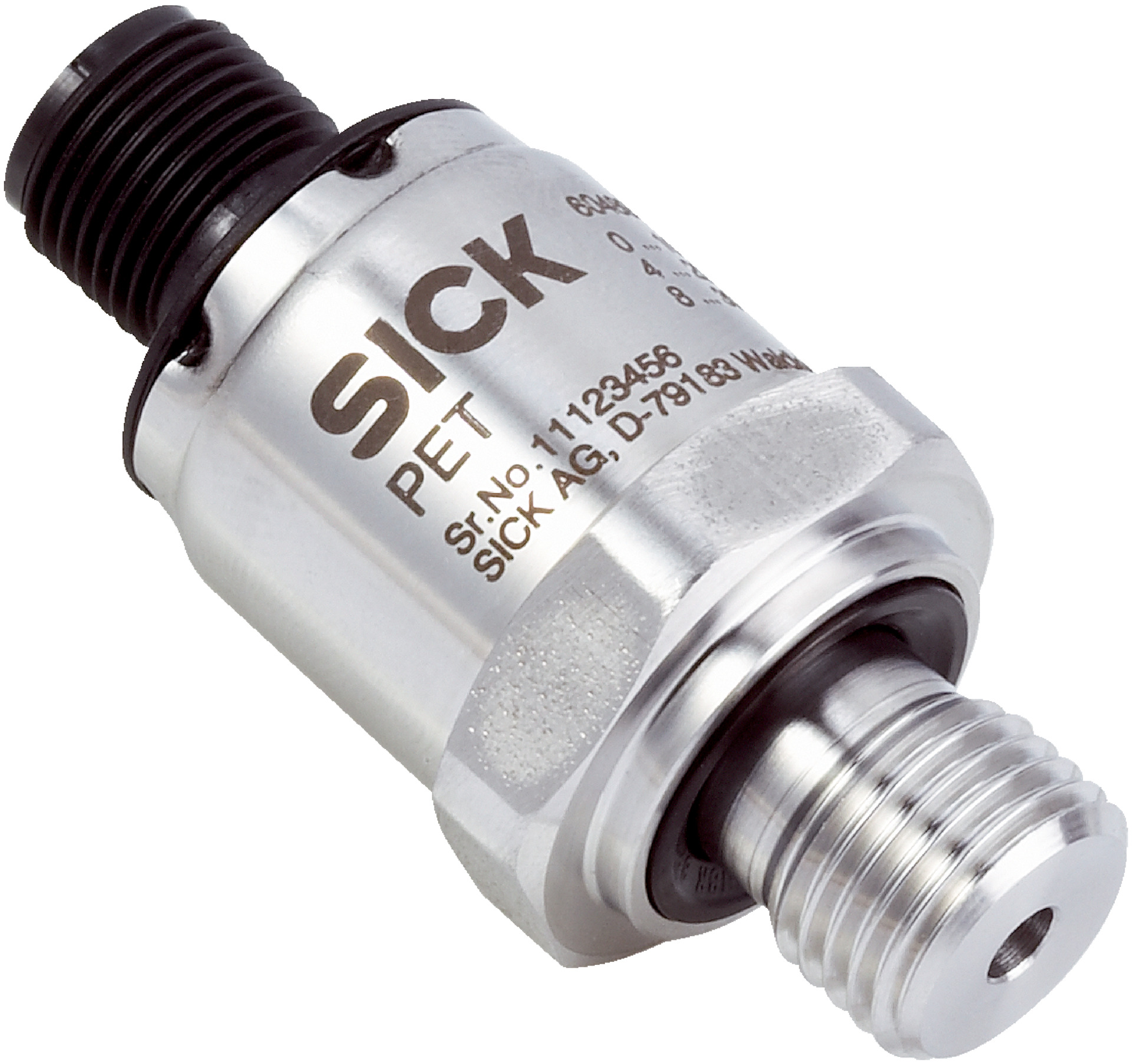

Fluid Pressure Sensor | Compound Pressure Measurement | IP67 Rated | Stainless Steel Housing | by SICK
The Fluid Pressure Sensor is designed for accurate compound pressure measurement in fluids, with a range of -1 bar to 9 bar and a robust stainless steel housing. Ideal for industrial applications, it features a fast response time under 2 ms and an IP67 rating for dust and water protection, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Pressure type: Compound pressure
- Measuring range: -1 bar to 9 bar
- Overpressure safety: 2-fold (3-fold upon request)
- Process temperature: -30 °C to +100 °C
- Output signal: 0.5 V to 4.5 V, 3-conductor
- Initialization time: 15 ms
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: 316L stainless steel, stainless steel 13-8 PH
- Housing material: Stainless steel 316L, PBT GF30
- Connection type: M12 round connector, 4-pin
- Supply voltage: 8 V DC to 30 V DC
- Power consumption: 5 mA
- Enclosure rating: IP67 (IEC 60529)
- MTTF: > 100 years
- Protection class: III
- Isolation voltage: 750 V DC
- Overvoltage protection: 36 V DC
- Short-circuit protection: Output Q A towards M
- Reverse polarity protection: L + towards M
- Non-linearity: ≤ ±0.6% of span (BFSL)
- Accuracy: ≤ ±1.2% of span at room temperature
- Response time: < 2 ms
- Long-term drift: ≤ ±0.3% of span per year
- Rated temperature range: 0 °C to +80 °C
- Service life: Minimum 10 million load cycles
- Shock load: 40 g (6 ms) IEC 60068-2-27
- Vibration load: 20 g (20 Hz to 2000 Hz, 120 min) IEC 60068-2-6
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.2 kg
Key Features
- Measures compound pressure in fluids from -1 bar to 9 bar
- Overpressure safety 2-fold, 3-fold upon request
- Process temperature range from -30 °C to +100 °C
- Output signal 0.5 V to 4.5 V with 3-conductor connection
- High accuracy with ≤ ±1.2% of span at room temperature
- Fast response time under 2 ms
- Robust stainless steel 316L housing and wetted parts
- IP67 rated enclosure for dust and water protection
- Integrated pressure peak dampening
- Reverse polarity, short-circuit, and overvoltage protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial fluid pressure measurement
- Process control systems
- Hydraulic and pneumatic systems
- Automation and manufacturing environments
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption (5 mA)
- Robust design minimizes environmental impact from failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PET-1CB010G1NSXMA Pressure Sensor is available for immediate purchase, ideal for industrial and automation fluid pressure measurement applications.
