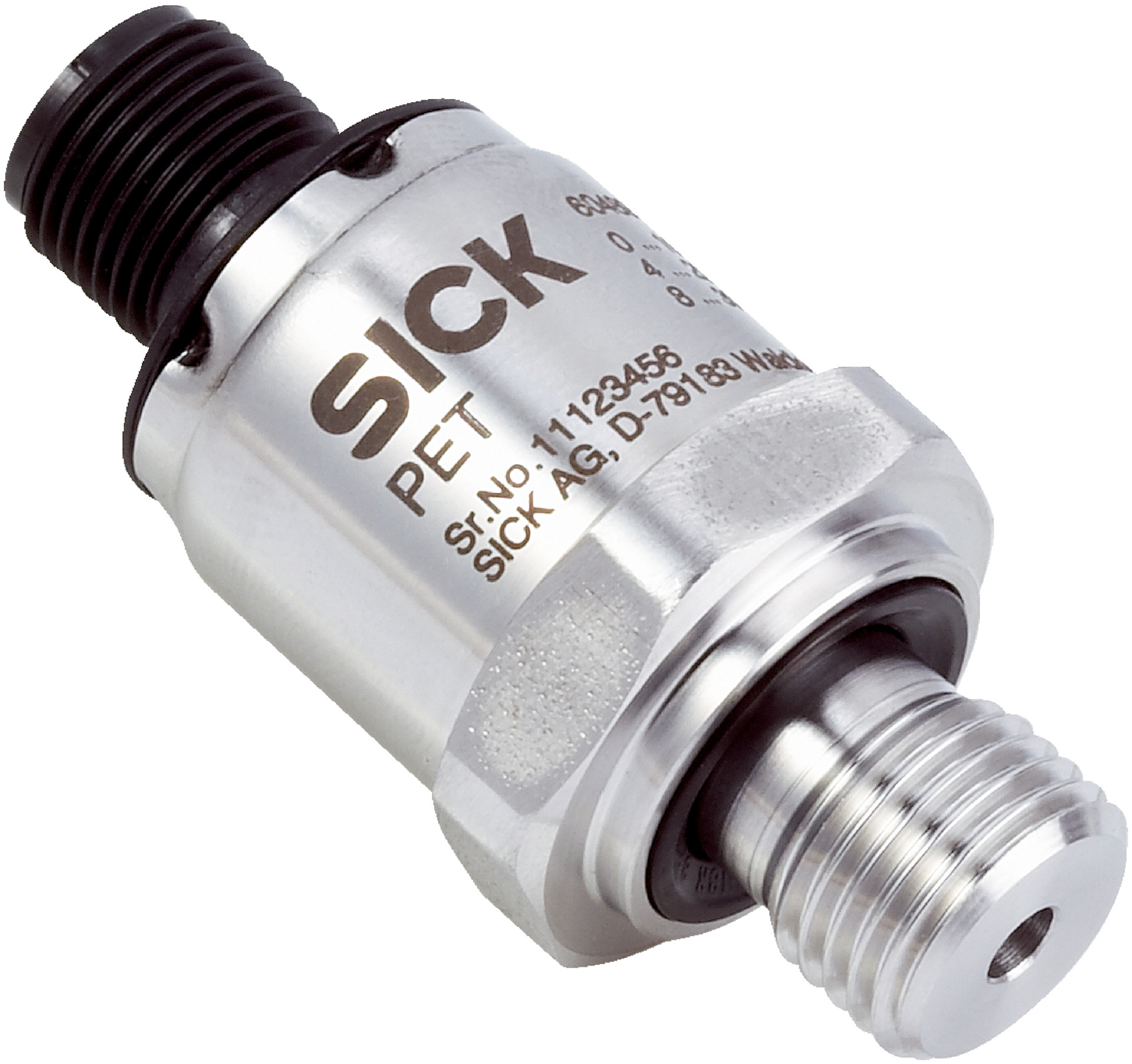

Fluid Pressure Sensor | Compound Pressure Transmitter | -1 to 15 Bar Range | IP67 Rated | by SICK
The Fluid Pressure Sensor is designed for precise compound pressure measurement from -1 bar to 15 bar, making it ideal for industrial fluid pressure monitoring and process control systems. With a robust stainless steel housing and an IP67 rating, it ensures durability and protection against dust and water, while offering high accuracy and a fast response time under 2 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Pressure type: Compound pressure
- Measuring range: -1 bar to 15 bar
- Overpressure safety: 2-fold (3-fold on request)
- Process temperature: -30 °C to +100 °C
- Maximum ohmic load RA: > 4.5 kΩ with ratiometric output
- Output signal: 0.5 V to 4.5 V ratiometric, 3-conductor
- Initialization time: 15 ms
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: 316L stainless steel and stainless steel 13-8 PH
- Housing material: Stainless steel 316L, PBT GF30
- Connection type: M12 round connector, 4-pin
- Supply voltage: 4.5 V DC to 5.5 V DC
- Power consumption: 5 mA
- Ex-approvals: 2004/108/EC, EN 61326-1 emission and immunity, pressure equipment directive 97/23/EC
- Seal: NBR
- Enclosure rating: IP67 (IEC 60529)
- MTTF: > 100 years
- Pressure peak dampening: Integrated pressure port 0.6 mm or 0.3 mm
- Protection class: III
- Isolation voltage: 750 V DC
- Overvoltage protection: 36 V DC
- Short-circuit protection: Output Q A towards M
- Reverse polarity protection: L + towards M
- Non-linearity: ≤ ± 0.5% of span (BFSL)
- Accuracy: ≤ ± 1.2% of span at room temperature
- Adjustment accuracy of zero signal: ≤ ± 0.5% of span
- Response time: < 2 ms
- Long-term drift/one-year stability: ≤ ± 0.3% of span
- Rated temperature range: 0 °C to +80 °C
- Service life: Minimum 10 million load cycles
- Temperature error: ≤ ± 1.5% of span
- Reference conditions: According to IEC 61298-1
- Ambient temperature operation: -30 °C to +100 °C
- Storage temperature: -30 °C to +100 °C
- Shock load: 40 g (6 ms) IEC 60068-2-27
- Vibration load: 20 g (20 Hz to 2000 Hz, 120 min) IEC 60068-2-6
- Dimensions (H x L x W): 60mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures compound pressure from -1 bar to 15 bar
- Overpressure safety 2-fold, 3-fold on request
- Process temperature range from -30 °C to +100 °C
- Output signal: 0.5 V to 4.5 V ratiometric, 3-conductor
- High accuracy with ≤ ±1.2% of span at room temperature
- Fast response time under 2 ms
- IP67 rated enclosure for dust and water protection
- Stainless steel 316L housing and wetted parts for durability
- Short-circuit, reverse polarity, and overvoltage protection
- Long service life with minimum 10 million load cycles
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor integration and electrical safety standards.
Applications
- Industrial fluid pressure monitoring
- Process control systems
- Hydraulic and pneumatic systems
- Automation and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption of 5 mA supports energy-efficient operation
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

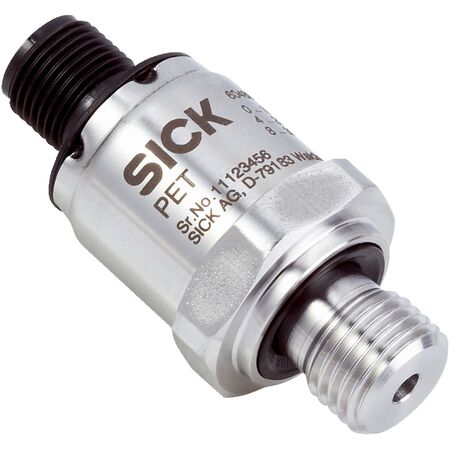

The SICK PET-1CB016G1NSRMR pressure sensor is available for immediate purchase, ideal for industrial fluid pressure monitoring and process control applications.
