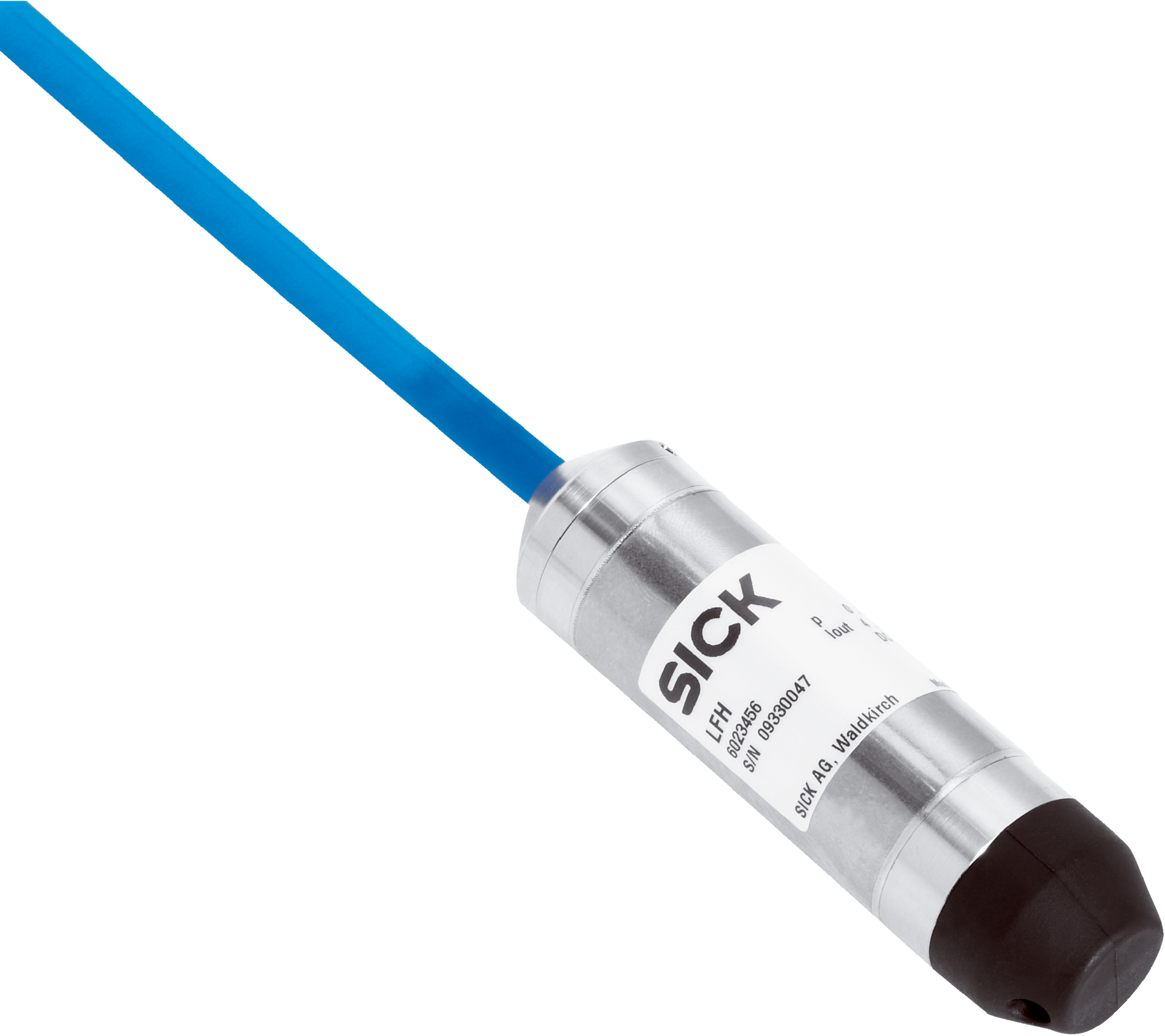

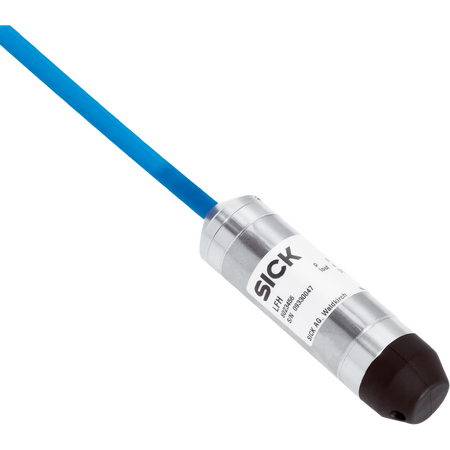

Fluid Pressure Sensor | Continuous Measurement | IP68 Rated | High Accuracy | by SICK

BRAND: SICK
SKU: 6040947
$1,529.30 List price: $1,922.10
+ −
30 Days Return Electricians Unlock Trade Access
The Fluid Pressure Sensor LFH-SBX60G1AS10SZ0 offers continuous measurement of fluid pressure from 0 to 0.6 bar, making it ideal for industrial applications. With a robust stainless steel housing and an IP68 rating, this sensor ensures high accuracy and reliability in demanding environments. Its 4-20mA output signal and long cable length of 10 meters provide flexibility for various installations.

Alternatively Known As: Fluid Pressure Sensor, Continuous Pressure Transmitter, Industrial Pressure Sensor, 4-20mA Pressure Sensor

Technical Specifications
  • Measurement: Continuous fluid pressure
  • Process pressure range: 0 to 0.6 bar
  • Process temperature range: –10 °C to +50 °C
  • Output signal: 4 mA to 20 mA, 2-wire
  • Supply voltage: 10 V DC to 30 V DC
  • Enclosure rating: IP68
  • Connection type: PUR cable, 10 m length
  • Material: Stainless steel 1.4404 / 316L housing and wetted parts
  • Non-linearity: ≤ ±0.2% of span (BFSL)
  • Accuracy: ≤ ±0.5% of span
  • Non-repeatability: ≤ ±0.1% of span
  • Long-term drift: ≤ ±0.2% of span per year
  • Temperature coefficient: ≤ 0.2% of span per 10 K
  • Dielectric strength: 500 V DC
  • Protection class: III
  • Electrical safety: Short-circuit, reverse polarity, surge protection
  • Dimensions (H x L x W): 100mm x 30mm x 30mm
  • Weight: 0.18 kg
Key Features
  • Continuous measurement of fluid pressure from 0 to 0.6 bar
  • High accuracy with non-linearity ≤ ±0.2% of span
  • Robust stainless steel 1.4404 / 316L housing and wetted parts
  • IP68 rated enclosure for protection against dust and water
  • Output signal 4 mA to 20 mA, 2-wire configuration
  • Long cable length of 10 meters with PUR cable connection
  • Protection class III with short-circuit, reverse polarity, and surge protection
  • Temperature range from –10 °C to +50 °C for process temperature
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
  • Fluid pressure monitoring in industrial processes
  • Continuous measurement in liquid and gas systems
  • Use in environments requiring high accuracy and reliability
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable stainless steel construction reduces waste and extends product life
  • Low power consumption with efficient 4-20mA output signal
  • High reliability reduces need for frequent replacements
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific terms.

Available Now

The SICK LFH-SBX60G1AS10SZ0 fluid pressure sensor is available for immediate purchase, ideal for industrial fluid pressure monitoring applications.
