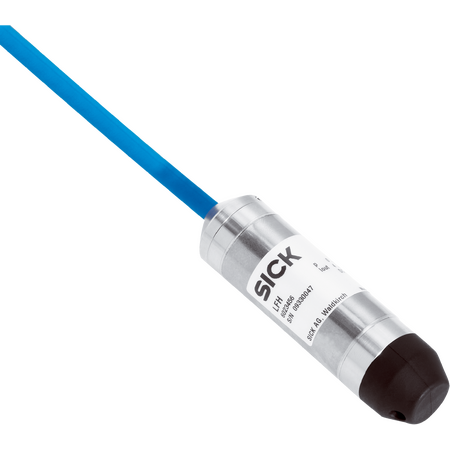

Fluid Pressure Sensor | Continuous Measurement | IP68 Rated | Stainless Steel Housing | by SICK
The Fluid Pressure Sensor LFH-SB1X0G1AS30SZ0 offers continuous measurement of fluid pressure from 0 bar to 1 bar, ensuring high accuracy with non-linearity of ≤ ±0.2% of span. Designed for industrial applications, it features a robust stainless steel housing and an IP68 rated enclosure for protection against dust and water, making it ideal for environments requiring reliability and stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fluid Pressure Sensor, Continuous Pressure Transmitter, Industrial Pressure Sensor, 4-20mA Pressure Sensor
Technical Specifications
- Measurement medium: Fluids
- Measurement type: Continuous
- Process pressure range: 0 bar to 1 bar
- Process temperature range: -10 °C to +50 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 10 V DC to 30 V DC
- Connection type: PUR cable connection, 30 m length
- Enclosure rating: IP68
- Wetted parts material: Stainless steel 1.4404 / 316L
- Housing material: Stainless steel 1.4404 / 316L
- Electrical safety: Protection class III, short-circuit, reverse polarity, and surge protection
- Non-linearity: ≤ ±0.2% of span (BFSL) per IEC 61298-2
- Accuracy of sensor element: ≤ ±0.5% of span
- Non-repeatability: ≤ ±0.1% of span
- Long-term drift: ≤ ±0.2% of span per year
- Temperature coefficient: Mean TC of zero ≤ 0.2% of span / 10 K
- MTTF: 403 years
- Dimensions (H x L x W): 30mm x 100mm x 30mm
- Weight: 0.18 kg
Key Features
- Continuous measurement of fluid pressure from 0 bar to 1 bar
- High accuracy with non-linearity ≤ ±0.2% of span and sensor element accuracy ≤ ±0.5%
- Long-term stability with one-year drift ≤ ±0.2% of span
- Wide supply voltage range from 10 V DC to 30 V DC
- Robust stainless steel 1.4404 / 316L housing and wetted parts
- IP68 rated enclosure for protection against dust and water
- PUR cable connection with 30 m cable length
- Electrical safety features including short-circuit, reverse polarity, and surge protection
- Mean time to failure (MTTF) of 403 years ensuring high reliability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and process instrumentation to ensure proper connection and compliance with safety standards.
Applications
- Fluid pressure measurement in industrial processes
- Continuous monitoring of process pressure in liquids
- Use in environments requiring high accuracy and stability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Long service life minimizes electronic waste
- Low power consumption with efficient 4-20mA output signal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LFH-SB1X0G1AS30SZ0 fluid pressure sensor is available for immediate purchase, ideal for industrial fluid monitoring and process control applications.
