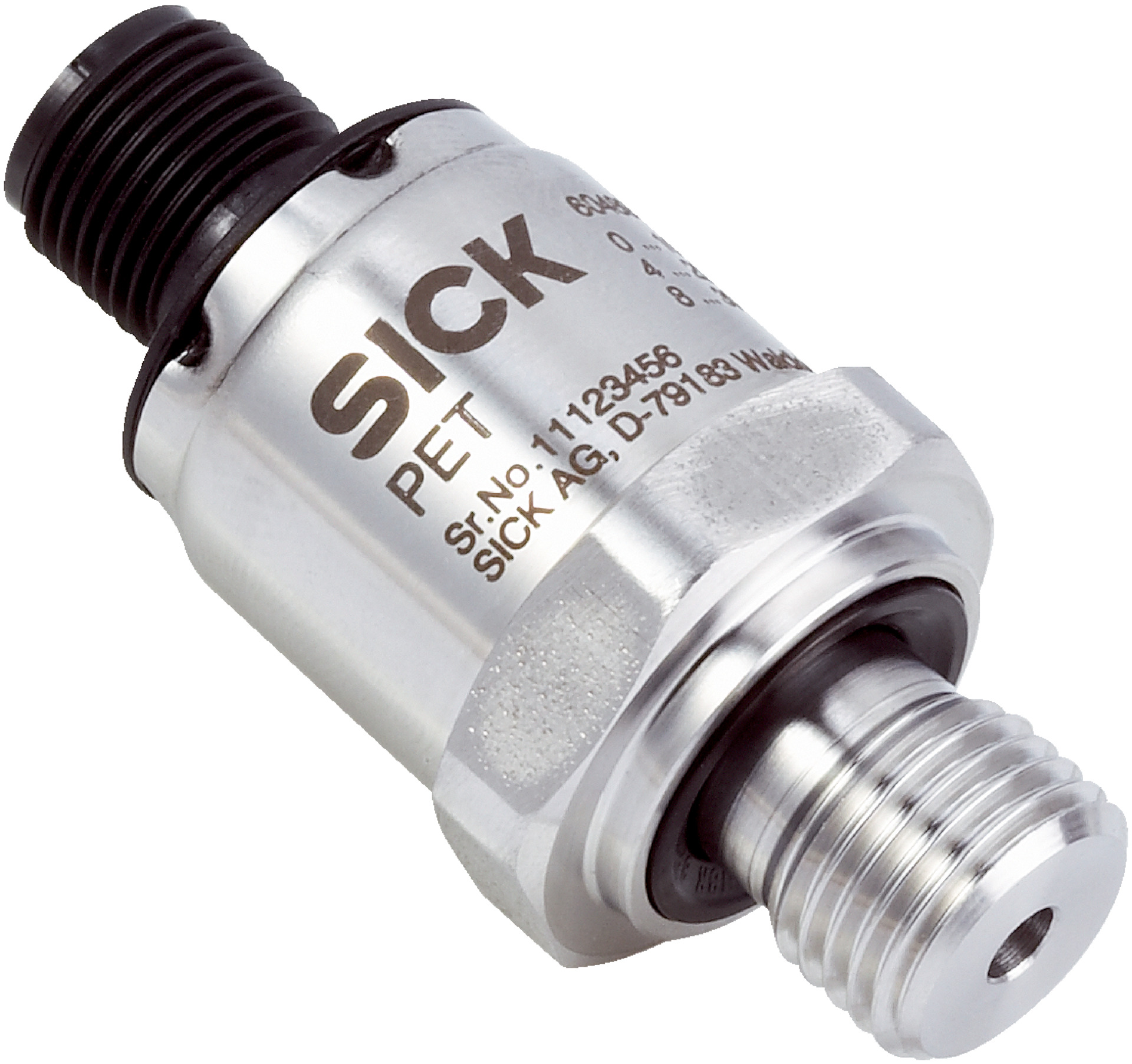

Fluid Pressure Sensor | Gauge Pressure Transmitter | 0 to 6 Bar Range | IP65 Rated | by SICK
The Fluid Pressure Sensor is designed for precise gauge pressure measurement in fluids, featuring a measuring range of 0 to 6 bar and a robust stainless steel housing. Ideal for industrial applications such as process control and hydraulic systems, it offers high accuracy with ≤ ±1.2% span accuracy and a fast initialization time of just 15 ms. With an IP65 rating, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 6 bar
- Overpressure safety: 2-fold standard, 3-fold on request
- Process temperature: -30 °C to +100 °C
- Output signal: 0.5 V to 4.5 V, ratiometric, 3-conductor
- Initialization time: 15 ms
- Process connection: ¼'' NPT
- Wetted parts: 316L stainless steel and stainless steel 13-8 PH
- Housing material: Stainless steel 316L, PBT GF30
- Connection type: Angled plug per DIN EN 175301-803 A
- Supply voltage: 4.5 V DC to 5.5 V DC
- Power consumption: 5 mA
- Enclosure rating: IP65 (IEC 60529)
- MTTF: > 100 years
- Pressure peak dampening: Integrated pressure port 0.6 mm or 0.3 mm
- Protection class: III
- Isolation voltage: 750 V DC
- Overvoltage protection: 36 V DC
- Short-circuit protection: Output Q A towards M
- Reverse polarity protection: L + towards M
- Non-linearity: ≤ ± 0.6 % of span (BFSL)
- Accuracy: ≤ ± 1.2 % of span at room temperature
- Response time: < 2 ms
- Long-term drift: ≤ ± 0.3 % of span per year
- Rated temperature range: 0 °C to +80 °C
- Shock load: 40 g (6 ms) IEC 60068-2-27
- Vibration load: 20 g (20 Hz to 2000 Hz, 120 min) IEC 60068-2-6
- Dimensions (H x L x W): 60mm x 80mm x 30mm
- Weight: 0.1 kg
Key Features
- Measures gauge pressure in fluids with a range of 0 to 6 bar
- High overpressure safety with 2-fold standard and 3-fold on request
- Process temperature range from -30 °C to +100 °C
- Ratiometric output signal from 0.5 V to 4.5 V with 3-conductor connection
- Fast initialization time of 15 ms
- Robust stainless steel 316L housing and wetted parts
- IP65 rated enclosure for dust and water protection
- Long service life with minimum 10 million load cycles
- High accuracy and stability with ≤ ±1.2% span accuracy and ≤ ±0.3% long-term drift per year
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical connections to ensure safety and compliance.
Applications
- Industrial fluid pressure measurement
- Process control systems
- Hydraulic and pneumatic systems
- Automation and monitoring applications
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient low power consumption of 5 mA
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now

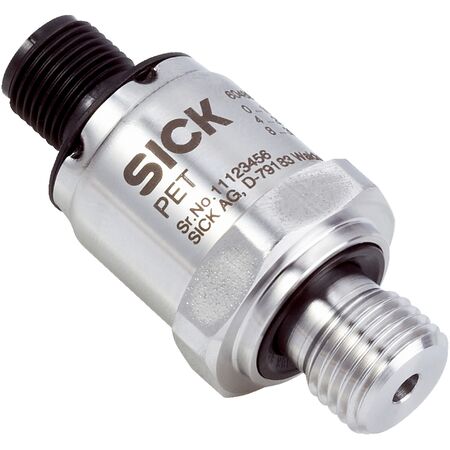

The SICK PET-1RB6X0N10SRLR pressure sensor is available for immediate purchase, ideal for industrial fluid pressure monitoring and control applications.
