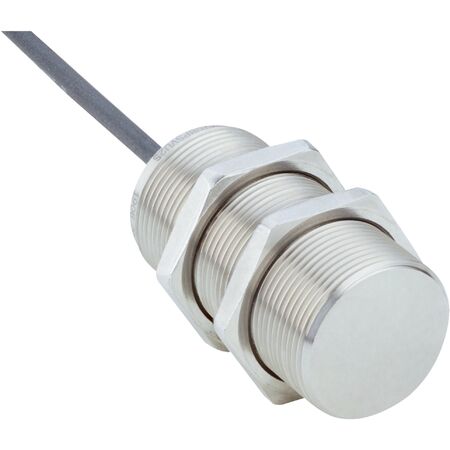

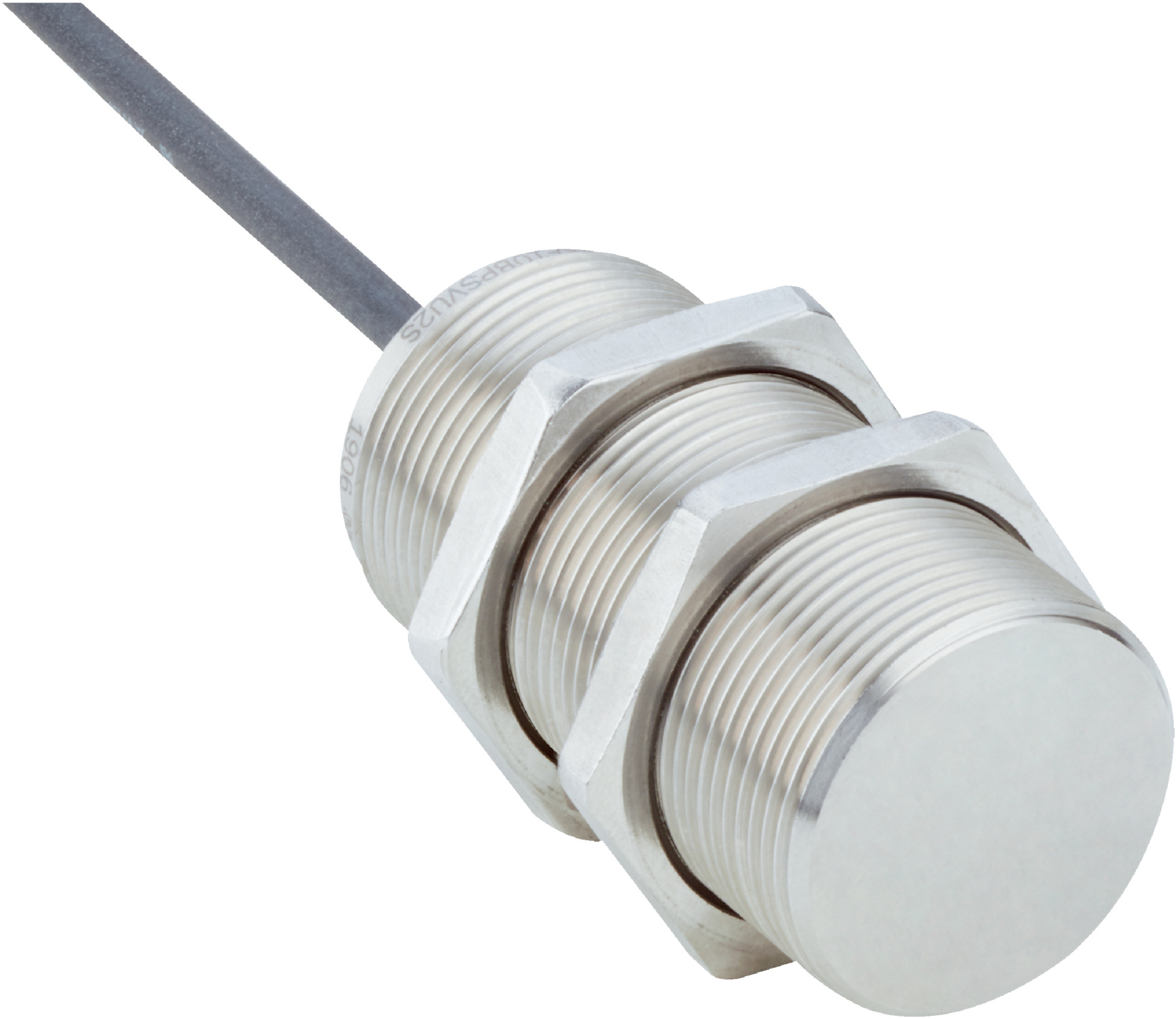

Flush Mount Inductive Proximity Sensor | IP68 & IP69K Rated | 10mm Sensing Range | Stainless Steel | by SICK
The Flush Mount Inductive Proximity Sensor is designed for hygienic and industrial automation applications, featuring a 10mm sensing range and robust IP68/IP69K enclosure rating. Built with a stainless steel V4A housing, it withstands harsh cleaning agents and offers high durability against shock and vibration, making it ideal for flush mounting in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric thread M30 x 1.5
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Switching frequency: 50 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: PNP, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 4.5 mm
- Shock resistance: 100 g / 5 ms / 1000 cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.15 kg
Key Features
- Flush installation with M30 x 1.5 metric thread housing
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Stainless steel V4A sensing face resistant to cleaning agents
- High switching frequency of 50 Hz with PNP normally closed output
- Cable connection with 3-wire, 2 m PUR cable
- Enclosure rating IP68 and IP69K for harsh environments
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments without damage
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMI30-10BPONU2S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic applications requiring robust sensing solutions.
