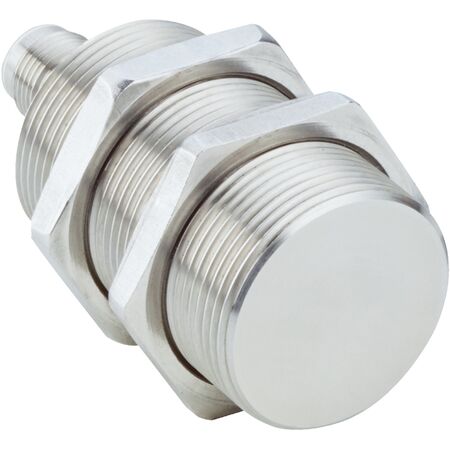

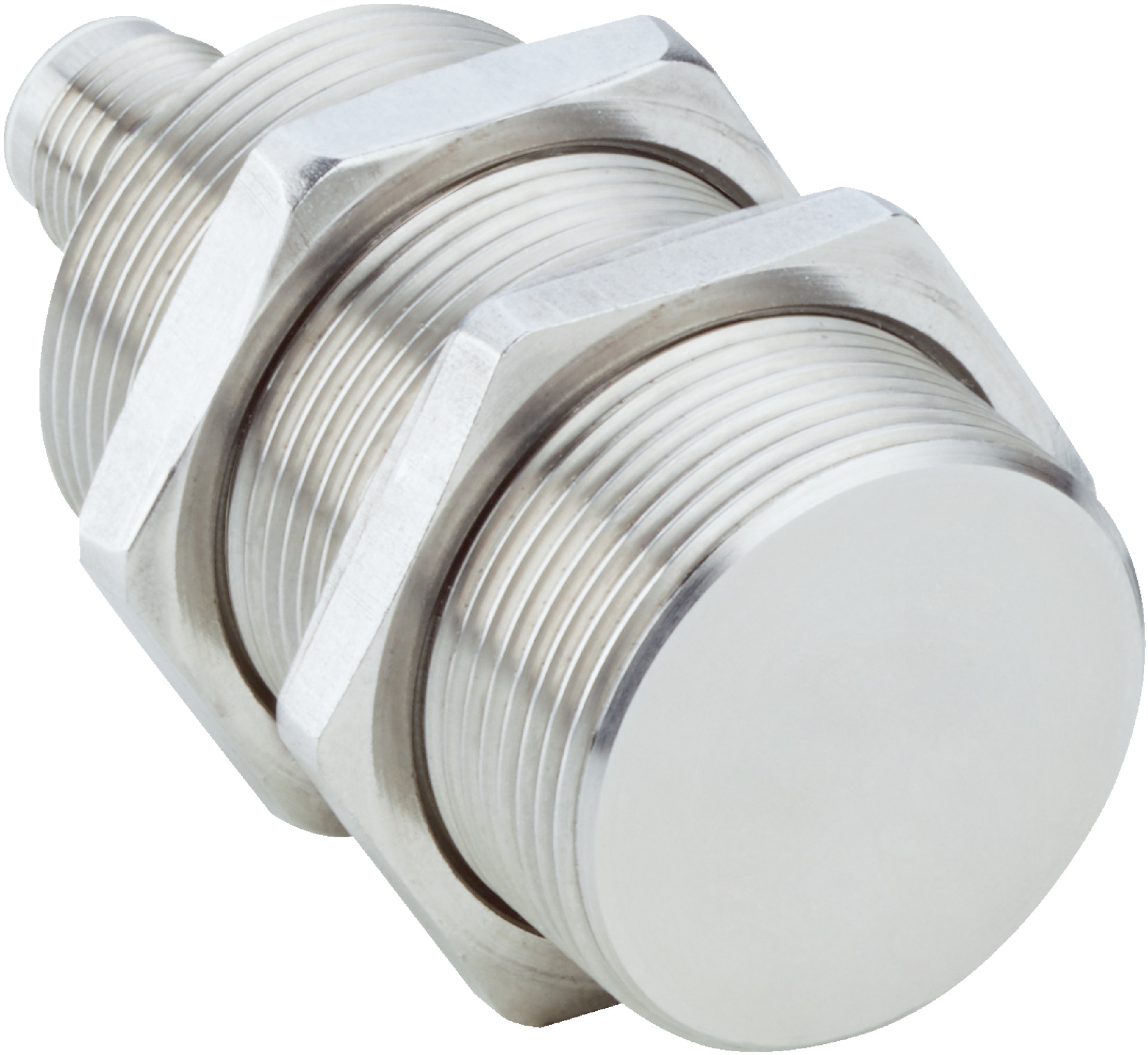

Flush Mount Inductive Sensor M30 | 10mm Sensing Range | IP68 & IP69K Rated | by SICK
The Flush Mount Inductive Sensor M30 is designed for reliable sensing in hygienic and industrial automation applications. With a sensing range of 10 mm and a safe sensing range of 8.1 mm, this stainless steel sensor is built to withstand washdown environments, featuring an IP68 and IP69K rating. Ideal for robust sensing solutions, it ensures high durability and protection against cleaning agents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M30 x 1.5 thread
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 65mm x 65mm x 30mm
- Weight: 0.2 kg
Key Features
- Flush installation with metric M30 x 1.5 thread
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- NPN normally open switching output with DC 3-wire electrical wiring
- High protection rating IP68 and IP69K suitable for washdown environments
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Shock and vibration resistant with high mechanical durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments without harmful chemicals
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMI30-10BNSNC0S stainless steel inductive sensor is available for immediate purchase, ideal for hygienic and industrial automation applications requiring robust sensing solutions.
