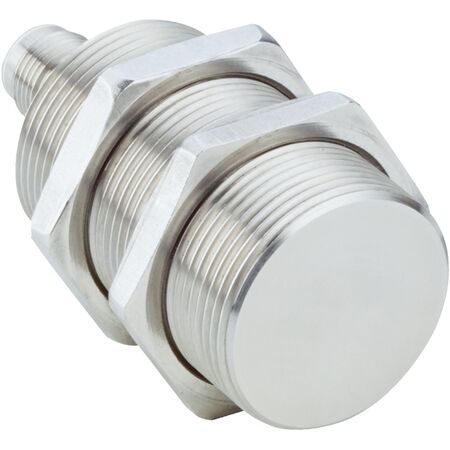

Flush Mount Inductive Sensor M30 | 10mm Sensing Range | IP68 & IP69K Rated | by SICK
The Flush Mount Inductive Sensor M30 offers a 10mm sensing range and is designed for hygienic and washdown environments. With a robust stainless steel construction and NPN normally closed output, it's perfect for industrial automation and precise object detection. This sensor withstands harsh conditions, ensuring reliability and durability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M30 x 1.5 thread
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Installation type: Flush
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, Normally Closed
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Dimensions (H x L x W): 65mm x 65mm x 30mm
- Weight: 0.2 kg
Key Features
- Flush installation with metric M30 x 1.5 thread
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- NPN normally closed switching output with DC 3-wire electrical wiring
- High protection rating IP68 and IP69K suitable for washdown environments
- Sensing face and housing made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- Resistant to cleaning agents and harsh conditions
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant withstanding up to 150 g and 1 million cycles
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring precise object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments without harmful chemical buildup
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMI30-10BNONC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
