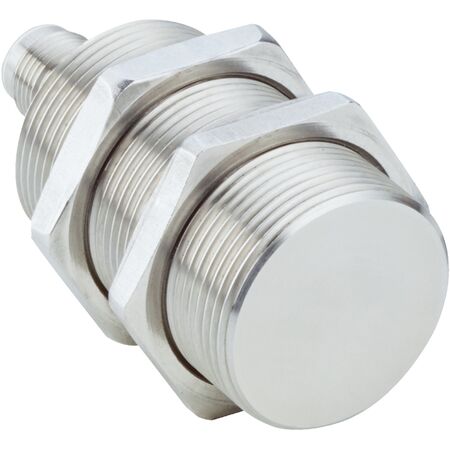

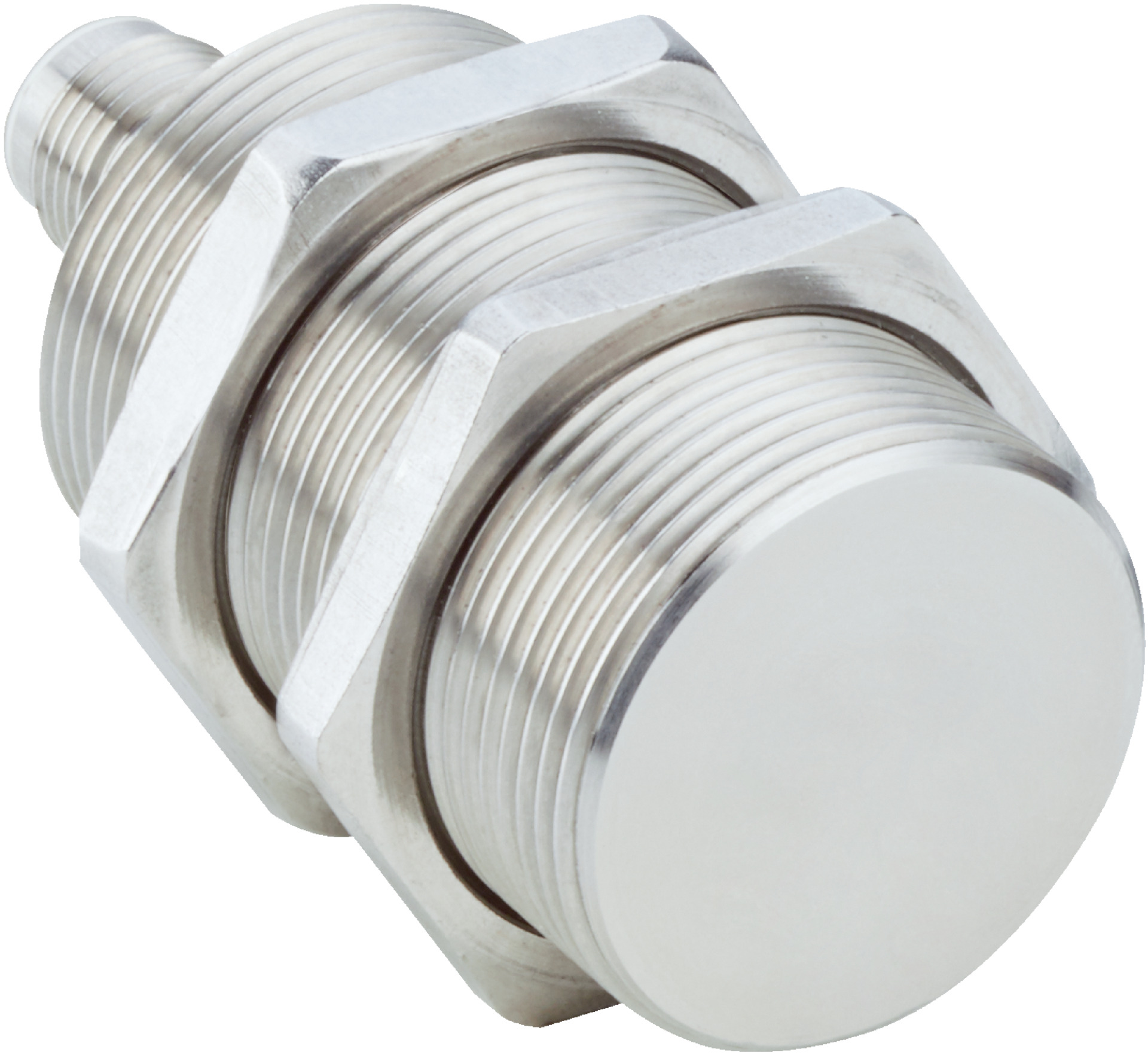

Flush Mount Inductive Sensor M30 | 10mm Sensing Range | IP68 & IP69K Rated | Stainless Steel | by SICK
The Flush Mount Inductive Sensor M30 is designed for robust industrial automation, featuring a 10mm sensing range and IP68/IP69K ratings for superior protection against dust and water. Ideal for hygienic and washdown zones, this stainless steel sensor ensures reliable performance in challenging conditions, making it perfect for applications requiring flush mounting and high durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M30 x 1.5 thread
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock resistance: 100 g / 5 ms / 1000 cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Dimensions (H x L x W): 65mm x 65mm x 30mm
- Weight: 0.2 kg
Key Features
- Flush installation with metric M30 x 1.5 thread
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- PNP switching output with normally open function
- IP68 and IP69K rated for high protection against dust and water
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- High shock and vibration resistance
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush mounting sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Resistant to cleaning agents, supporting hygienic environments and reducing chemical use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IMI30-10BPSNC0S stainless steel flush mount inductive sensor is available for immediate purchase, ideal for hygienic and industrial automation applications.
