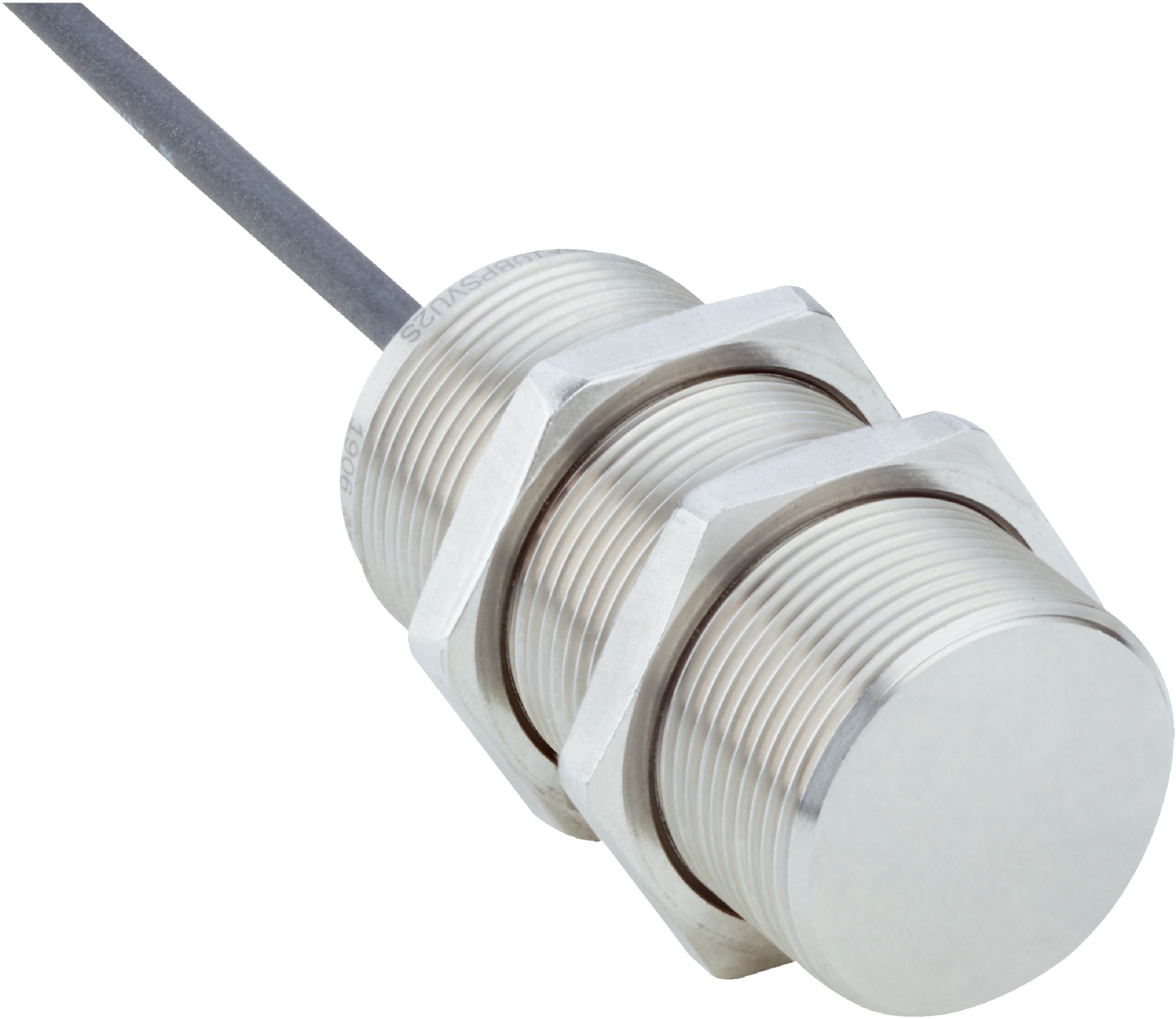

Flush Mount Inductive Sensor M30 | IP68 & IP69K Rated | 10mm Sensing Range | Stainless Steel | by SICK
The Flush Mount Inductive Sensor M30 is designed for hygienic and industrial automation applications, featuring a robust 10mm sensing range and high protection ratings of IP68 and IP69K. Built with durable stainless steel, it withstands harsh environments and cleaning agents, making it ideal for flush installations in washdown zones and difficult conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M30 x 1.5 thread
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Switching frequency: 50 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 4.5 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles
- Operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Flush installation with metric M30 x 1.5 thread
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- NPN switching output with normally closed (NC) function
- Cable connection: 3-wire, 2 m PUR cable
- High protection rating IP68 and IP69K for harsh environments
- Sensing face and housing made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- Resistant to cleaning agents, suitable for hygienic zones
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant with high durability
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting and electrical connection in compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments reducing contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

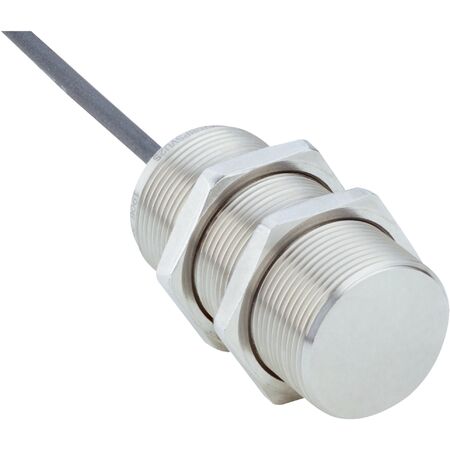

The SICK IMI30-10BNONU2S stainless steel flush mount inductive sensor is available for immediate purchase, ideal for hygienic and industrial automation applications.
