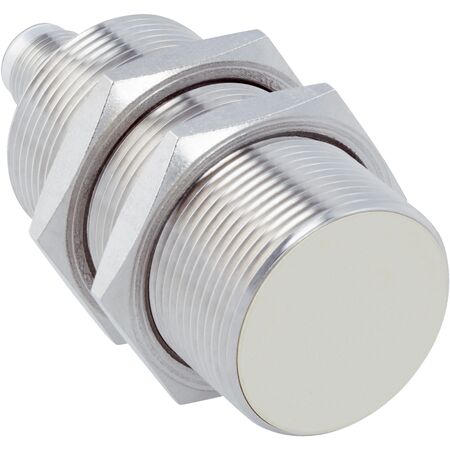

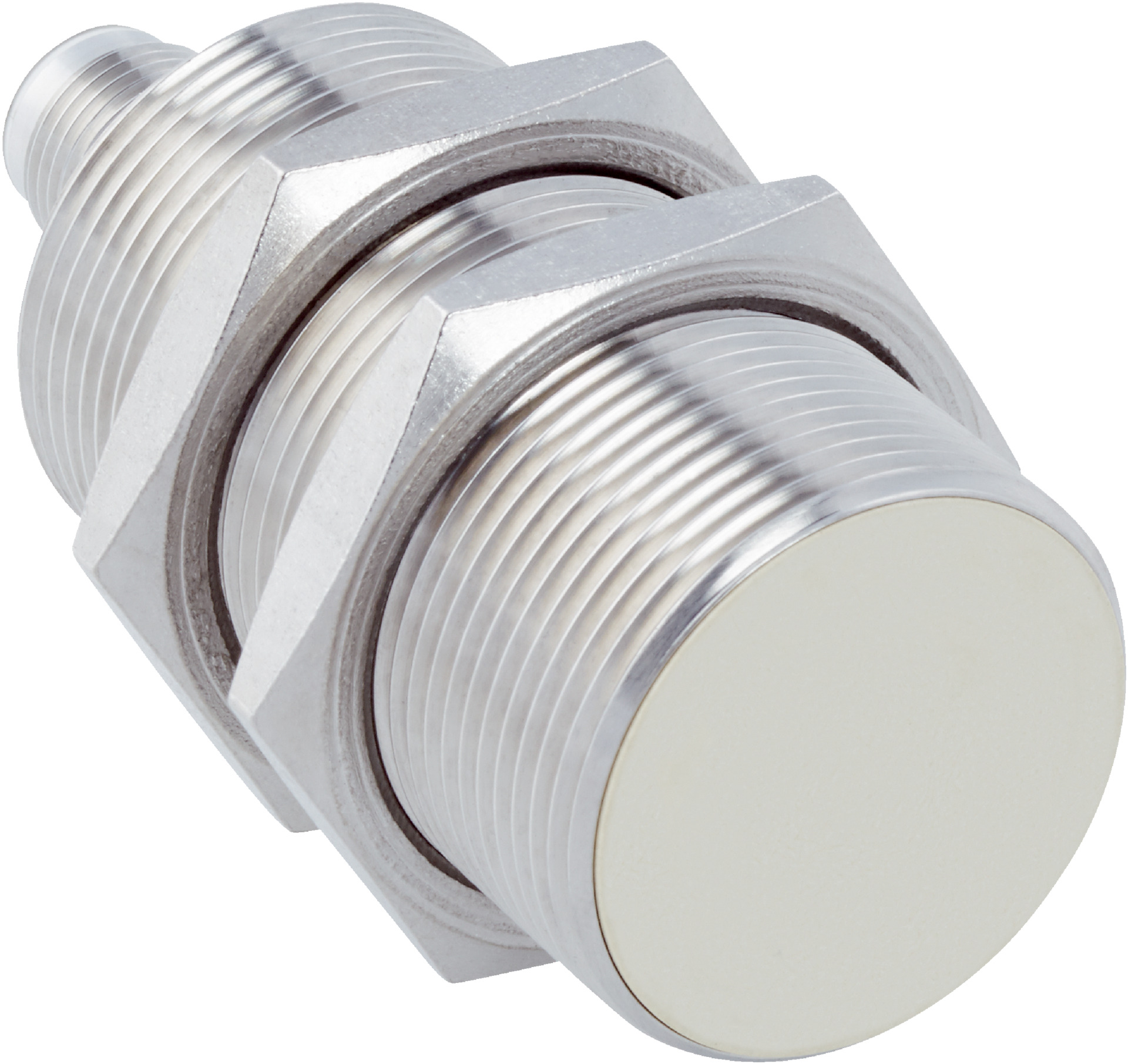

Flush Mount Inductive Sensor M30 | Stainless Steel | IP68 & IP69K Rated | 15mm Sensing Range | by SICK
The Flush Mount Inductive Sensor M30 is designed for robust sensing in hygienic and washdown zones, featuring a 15mm sensing range and IP68/IP69K rated enclosure. Built for industrial automation, this stainless steel sensor ensures high durability and resistance to cleaning agents, making it ideal for challenging application conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Protection class: III
- Housing length: 70 mm
- Thread length: 52 mm
- Tightening torque max: 100 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 500 Hz with PNP normally closed output
- Male connector M12, 4-pin connection
- IP68 and IP69K rated enclosure for high protection
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Housing made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face made of plastic LCP
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting torque and electrical connections for optimal sensor performance and safety.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush installation sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Resistant to cleaning agents reducing need for replacement
- Energy efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMF30-15BPONC0S stainless steel flush mount inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
