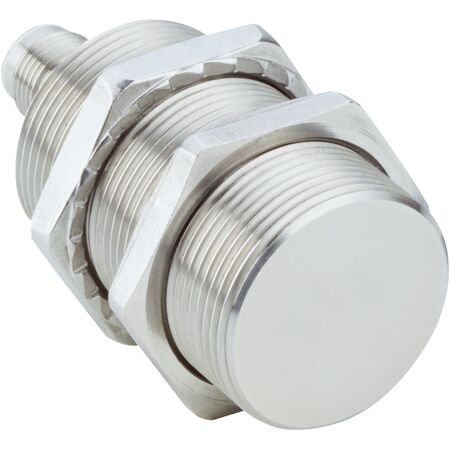

Flush Mount Inductive Sensor M30 | IP68 & IP69K Rated | PNP Normally Closed Output | by SICK
The Flush Mount Inductive Sensor M30 is designed for reliable object detection in industrial automation, featuring a robust IP68 and IP69K rating for harsh environments. With a sensing range of 10 mm and a PNP normally closed output, this stainless steel proximity sensor is perfect for applications involving coolants and lubricants, ensuring high durability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Electrical wiring: DC 3-wire
- Output function: Normally closed (NC)
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Voltage drop: ≤ 2 V
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Enclosure rating: IP68, IP69K
- Shock resistance: 100 g / 5 ms / 1000 cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Dimensions (H x L x W): 65mm x 65mm x 30mm
- Weight: 0.1 kg
Key Features
- Flush installation with metric M30 x 1.5 thread
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- PNP switching output with NC function
- High protection rating IP68 and IP69K for harsh environments
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Shock and vibration resistant with high mechanical durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High protection rating minimizes environmental contamination risk
- Energy efficient DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMI30-10BPOVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
