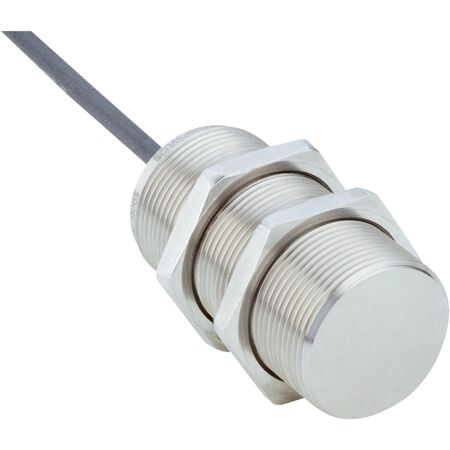

Flush Mount Inductive Sensor M30 | IP68 Rated | NPN Output | Stainless Steel | by SICK
The Flush Mount Inductive Sensor M30 is designed for robust industrial automation applications, featuring an IP68 rating for high protection against dust and water. With a sensing range of 10 mm and a durable stainless steel V4A housing, this sensor is perfect for hygienic environments and challenging conditions, ensuring reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 4.5 mm, conductor size 0.34 mm²
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 5 ms / 1000 cycles; vibration resistance: 10 Hz to 500 Hz
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency of 50 Hz with NPN normally open output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Includes mounting nuts made of V4A stainless steel
- Shock and vibration resistant with high durability
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush mounting sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- High ingress protection minimizes environmental contamination and sensor failure
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IMI30-10BNSNU2S sensor is available for immediate purchase, ideal for industrial automation and hygienic environment applications.
